AM 600/20x and AM 600/40x SATA-150 Hard Disk Controller

The Concurrent Technologies AM 600/20x and AM 600/40x series consists of SATA AMC modules. They are available in double mid size and double full size form factor. Two SATA HDD versions or versions with two CompactFlash slots are available.

The modules support RAID 0 and 1. RAID 1 systems offer additional security through mirroring on a second hard disk.

ORDER NOW

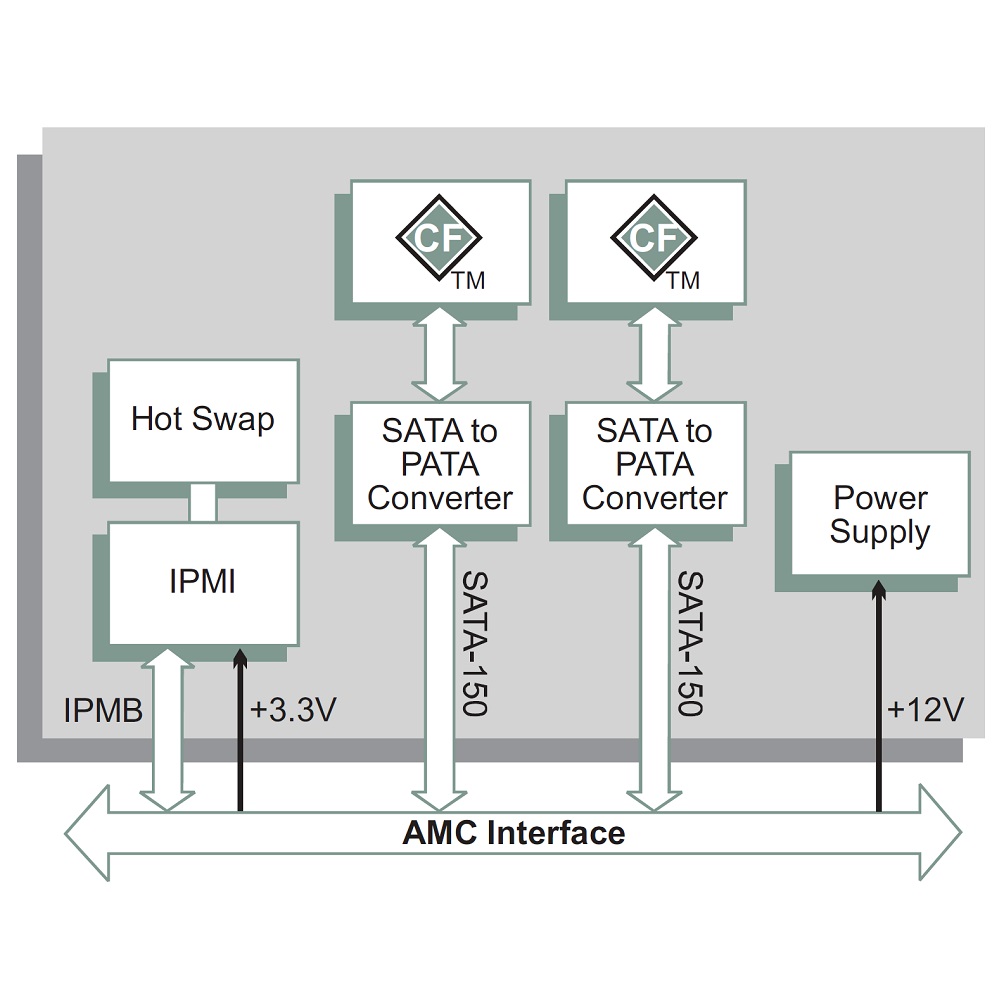

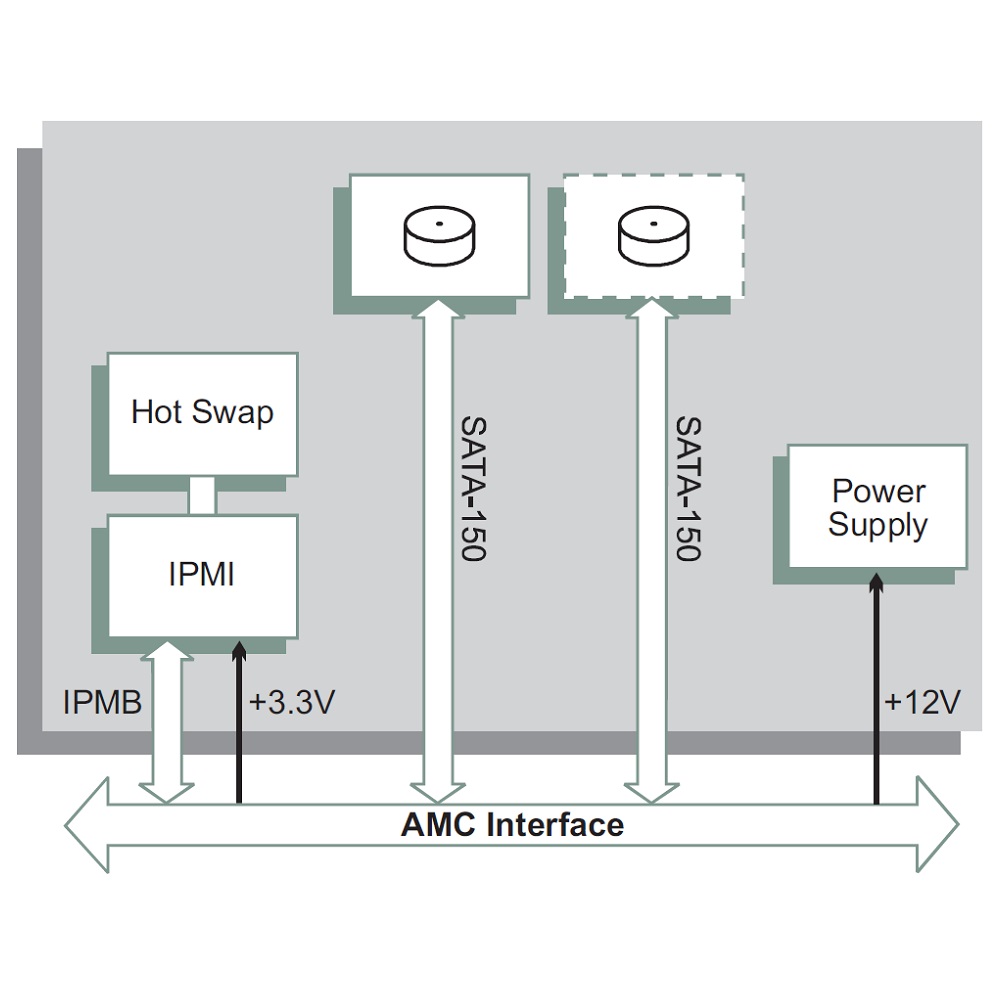

Technical Description

proimg1
  • SATA-150 controller
  • AMC module with AMC.3 type S2 interface, double mid size or double full size form factor
  • RAID 0 or 1
  • In 3 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), and (-40°C .. +85°C)
  • 2 years warranty

Order Information

AM600/201-1y

AMC module with SATA HDD, double full size

AM600/202-1y

AMC module with 2 SATA HDDs, double full size

AM600/202-49

AMC module with 2 compact flash slots, double full size

AM600/402-1y

AMC module with SATA HDD, double mid size

AM600/402-1y

AMC module with 2 SATA HDDs, double mid size

AM600/402-49

AMC module with 2 compact flash slots, double mid size

Technical Documentation

AM 600/x0x-DS

AM 600/x0x Data Sheet
