AM C86/m7d Processor AMC with Intel Xeon CPU with 10Gigabit Ethernet Front Panel Ports and RapidIO or PCIe

The processor AMC module is powered by an Intel Xeon E-2276 CPU with up to 2.8 GHz clock rate. The processor manages 16 GB ECC DDR4 SDRAM. The front panel has two 10Gigabit Ethernet, one USB 3.1/2.0, one RS-232 port and one DisplayPort.

CONCURRENT Technologies' AM C86/m7d series are high performance processor sub systems with AMC full size form factor. AMC.2 type E2, AMC.3 type S2 (SATA), AMC.4 RapidIO type 5 or AMC.1 type 4 are supported. The processor AMC is designed for high performance solutions. The long lifetime AdvancedMC technology allows the reuse of system components from small to high-end configurations: This secures your investments.

By adhering to industry standards like AMC and MicroTCA, the AM C86/m7d modules offer the advantage of solutions with high performance and longevity.

Two mezzanine factory build options provide either a RapidIO or PCI Express fabric interace. Option 1 provides a RapidIO x4 fabric interface and option 2 provides a PCI Express x4 interface.

The board supports VxWorks 7.

The product is end of life on 25.4.2025. If you have any questions, please contact us.

ORDER NOW

Technical Description

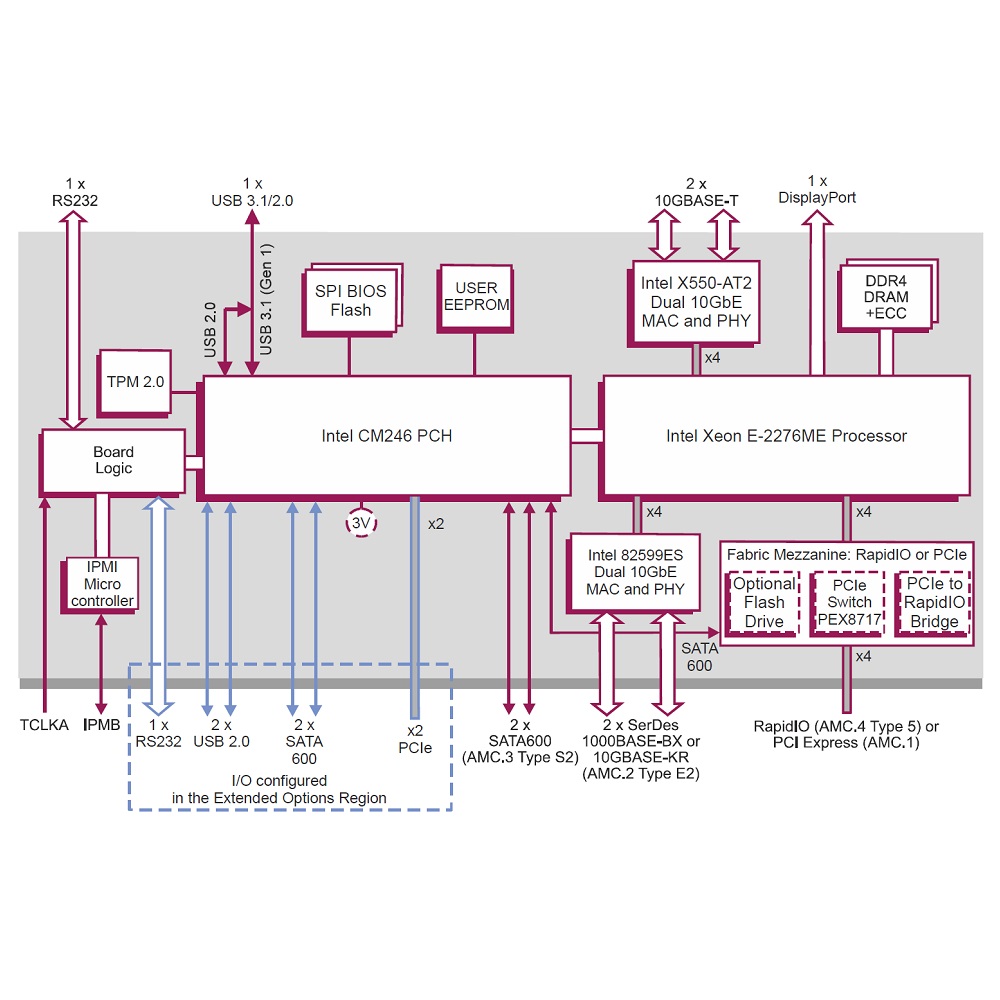

proimg1
  • Processor AMC module
  • AMC module with AMC.2 type E2, AMC.3 type S2 (SATA), AMC.4 RapidIO type 5 or AMC.1 type 4 interface, full size form factor
  • 6 Core 2.8 GHz Intel Xeon E-2276ME CPU, 12 MB Smartcache
  • 16 GB DDR4 ECC SDRAM, soldered
  • Intel CM246 controller
  • 1 graphics interface with one DisplayPort v 1.2 in the front panel via mini DP connector, 2880×1800 Pixel resolution, Intel UHD graphics
  • Dual 16 MB SPI BIOS flash and 8 KB user EEPROM flash
  • RapidIO x4 Gen 2 or PCIe x4 Gen3 Fabric interface
  • Two 10GbE front panel ports, 10GBase-T, 1000Base-T, 100 Base-TX full duplex, Intel X550-AT2
  • Two 10GbE SerDes 10GBase-KR ports or two GbE SerDes 1000Base-BX ports, Intel 82599ES
  • Up to 5 SATA ports, 2 AMC.3 type S2 ports on the backplane, 1 port for a flash module and opt. 2 ports in the ext. option
  • Up to two RS-232 ports, 1 front panel port and opt. 1 port in the ext. option, TxD, RxD, CTS, RTS signals
  • Up to 3 USB ports, 1 USB 3.1/2.0 front panel port, 2 USB 2.0 ports in the ext. option
  • Two 10Gigabit Ethernet, one USB 3.1/2.0, one DisplayPort and one RS-232 port with TxD, RxD in the front panel
  • Opt. SATA600 flash module
  • PCIe x2 Gen 3 port in the ext. option
  • UEFI 2.7 BIOS with Secure Boot, Intel Boot Guard
  • Trusted Platform Module 2.0 (TPM)
  • Watchdog, real time clock, and 32bit timer
  • IPMI 1.5 management and onboard BMC (Baseboard Management Controller)
  • 0°C .. 55°C operating temperature range
  • 2 years warranty

Order Information

AM C86/m7d-10

Processor AMC module, Xeon E-2276ME, RapidIO, full size

AM C86/m7d-11

Processor AMC module, Xeon E-2276ME, RapidIO, 64GB flash module, full size

AM C86/m7d-40

Processor AMC module, Xeon E-2276ME, PCIe, 64GB flash module, full size

m

Front panel size

d

Up to 16 GB RAM

yz

Rear I/O configuration

Technical Documentation

AM C86/m7d-DS

AM C86/m7d Data Sheet
