BA 2TR/501 3U VPX Board with 8 Serial Interfaces

The 3U VPX board providing up to eight serial communications ports is compatible with OpenVPX (VITA 65) BKP3-CEN06-15.2.2-3 and SLT3-PAY-1F2F2U profiles. Air cooled and conduction-cooled versions are available from CONCURRENT Technologies.

The conduction-cooled cooled variants have 5 RS-232 or 5 RS-422/485 ports on VPX connector P2. The channels support TXD, RXD, CTS, RTS, DCD, DSR and DTR on RS422/485 mode. The RS-422/485 mode supports simplex or duplex mode, selectable RXD resistor termination, master/slave selection accessible via software and channel flow control selectable by DTR or RTS.

Additional the air cooled versions have three RS-232/422/485 front panel ports. The RS-232 mode supports TXD, RXD, CTS, RTS, DCD, DSR, DTR and RI. The RS-422/485 modes supports TXD and RXD.

The boards are available with Microsoft Windows, Linux and VxWorks.

ORDER NOW

Technical Description

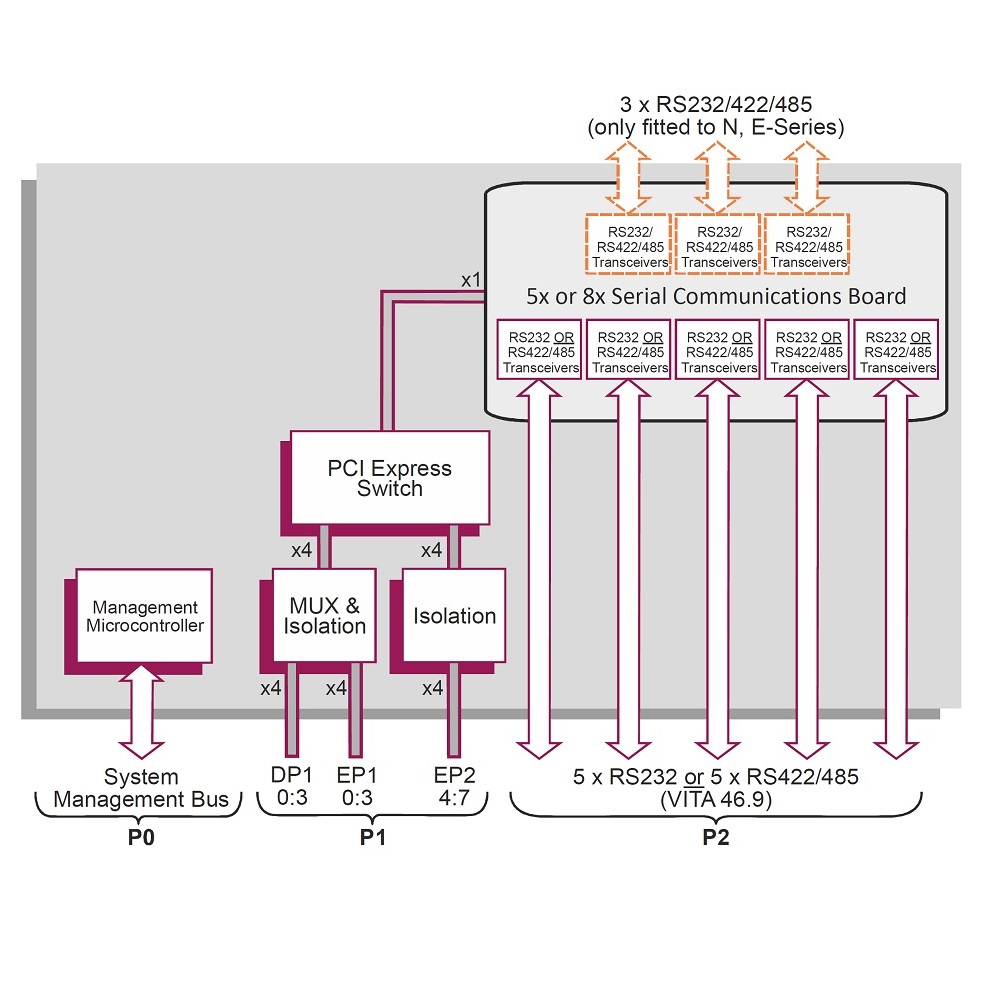

proimg1
  • 3U/4HP VPX board, VITA 42.0, VITA 46.0, VITA 46.9, VITA 47, VITA 48.0, VITA 48.2, VITA 65 conform
  • BKP3-CEN06-15.2.2-3 and SLT3-PAY-1F2F2U OpenVPX profiles
  • Front or Rear-I/O
  • 3 RS-232/422/485 front panel ports
    • TXD, RXD, CTS, RTS, DCD, DSR, DTR and RI on RS-232 mode
    • TXD and RXD on RS-422/485 mode
    • only available with air-cooled variants
  • 5 RS-232 ports or 5 RS-422/485 ports via P2
    • TXD, RXD, CTS, RTS, DCD, DSR and DTR on RS422/485 mode
    • RS-422/485 mode supports simplex or duplex mode, selectable RXD resistor termination, master/slave selection accessible via software and channel flow control selectable by DTR or RTS
  • In 3 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

BA_2TR/501

VPX board, serial interface, 0 .. +55°C, 1,0-inch slot

BA_2TR/501E

VPX board, serial interface, -25 .. +70°C, 1,0-inch slot

BA_2TR/501-RCS

VPX board, serial interface, conduction-cooled, -40 .. +85°C, VPX-REDI type 1: 0,85-inch slot

BA_2TR/501-RCT

VPX board, serial interface, conduction-cooled, -40 .. +85°C, VPX-REDI type 2: 0,8-inch slot

Technical Documentation

BA 2TR/501-DS

BA 2TR/501 Data Sheet
