BU-65590F/M MIL-STD-1553 and ARINC 429 Controller

PMC module with MIL-STD-1553 and ARINC 429 interface. The ARINC 429 controller has 6 transmit and 16 receive channels. Up to 4 redundant MIL-STD-1553 channels with 1 MB RAM per channel supports the operating modes Bus Controller, Remote Terminal, or Bus Monitor. In the mode Bus Monitor can used an IRIG-B time code input. A DMA engine allows a high load balancing. Furthermore two serial RS-232, two serial RS-422/485 ports and 6 prog. digital IOs are available.

Support for Linux 2.6, Windows XP, Windows 2000, VxWorks 5.x, and VxWorks 6.x is provided.

The DDC BU-65590F/M module is also available BU-65590A AMC module.

ORDER NOW

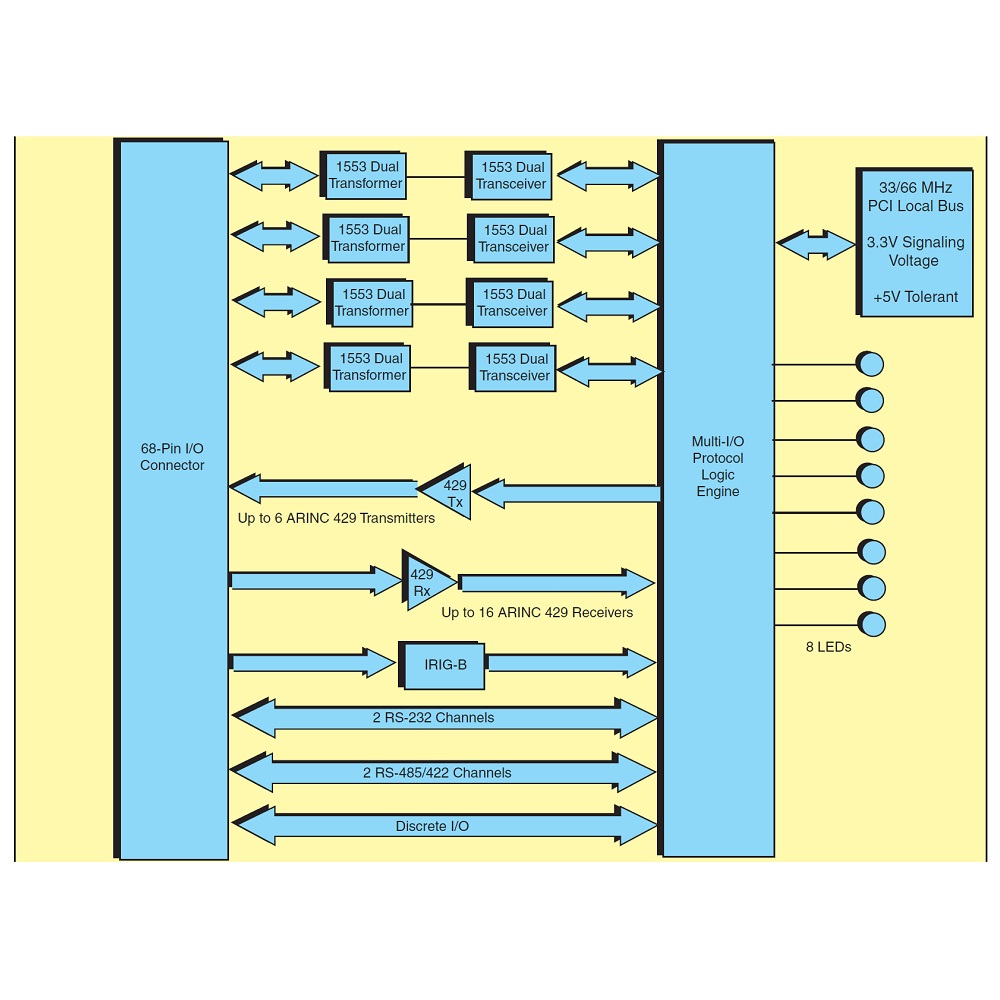

Technical Description

proimg1
  • MIL-STD-1553, ARINC 429 Interface
  • PMC module
  • ARINC 429 Interface with 16 receive and 6 transmit channels
  • MIL-STD-1553 interface with 2 or 4 redundant channels, BC, RT, or MT
  • 2 serial RS-232 channels
  • 2 serial RS-422/485 channels
  • 6 prog. digital IOs
  • 1 MB RAM per MIL-STD-1553 channel
  • IRIG-B time code input
  • 48bit/1 µs time stamp
  • DMA engine
  • HD68 connector on the front panel
  • Automatic slew rate adjustment
  • Built In self test
  • 0°C .. +55°C or -40°C .. +85°C operating temperature range, opt. conduction cooled
  • Linux 2.6, Windows XP, Windows 2000, VxWorks 5.x, and VxWorks 6.x drivers are available
  • 2 years warranty

Order Information

BU-65590x0-yy

Multi-I/O, 4 MIL-STD-1553, 8/4 ARINC, 2 RS-232, 2 RS-422/485, 6 digital IO channels

BU-65590x1-yy

Multi-I/O, 2 MIL-STD-1553, 8/6 ARINC, 2 RS-232, 2 RS-422/485, 6 digital IO channels

BU-65590x2-yy

Multi-I/O, 16/6 ARINC, 2 RS-232, 2 RS-422/485, 6 digital IO channels

x=F

FrontI/O

x=M

RearI/O

yy=2A

-40°C .. +85°C operating temperature range

yy=2C

-40°C .. +85°C operating temperature range, conduction cooled

yy=3L

0°C .. +55°C operating temperature range

Technical Documentation

BU-65590F/M-DS

BU-65590F/M Data Sheet
