3U VPX 22 Port 1/10/40GbE Layer 2+/3 Switch

3U VPX 1/10/40GbE Layer 2+/3 switch with up to 22 ports. Powered by the latest highly integrated Marvell System Chip (SoC) with programmable packet processors and controlled by Switchware, Interface Concept's field-proven network management application, the ComEth4081e series provides up to two 40Gigabit Ethernet ports and up to 22 10Gigabit Ethernet ports.

The ComEth4081e also supports VPX System Management in compliance with VITA 46.11 and based on the Intelligent Platform Management Interface (IPMI v1.5) for sensor management (temperature, voltage, current), inventory management, system configuration, recovery and diagnostic management. Interface Concepts Switchware supports a wide range of Layer 2/3 functions that can be managed via an easy-to-use graphical user interface (GUI), command line interface (CLI) or SNMP (v2c or v3).

The ComEth4081e series is available for five different environmental specifications: Standard operating temperature range (0°C .. 55°C), extended operating temperature range (-20°C .. +65°C), rugged operating temperature range (-40°C .. +75/85°C), conduction-cooled (-40°C .. +71°C) and conduction-cooled (-40°C .. +85°C).

ORDER NOW

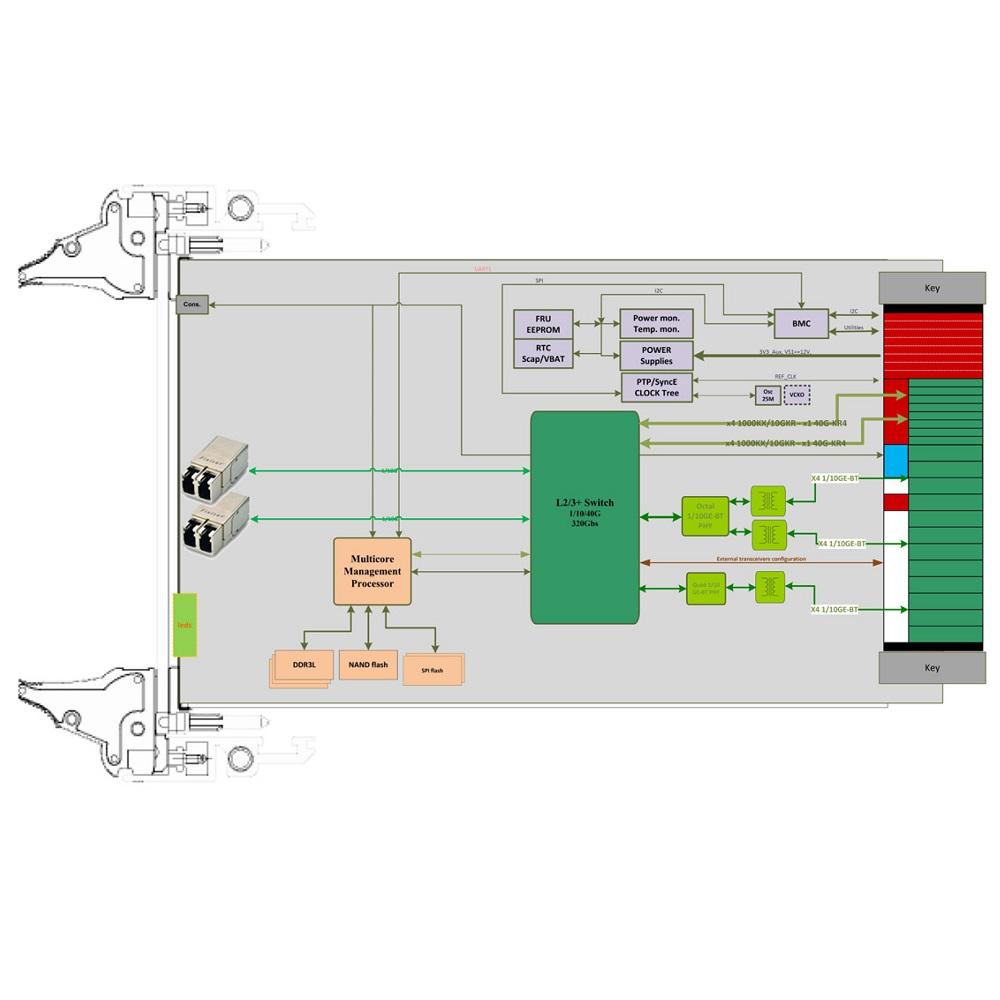

Technical Description

proimg1
  • 3U VPX Switch, VITA 46.11 and VITA 65.0 compliant

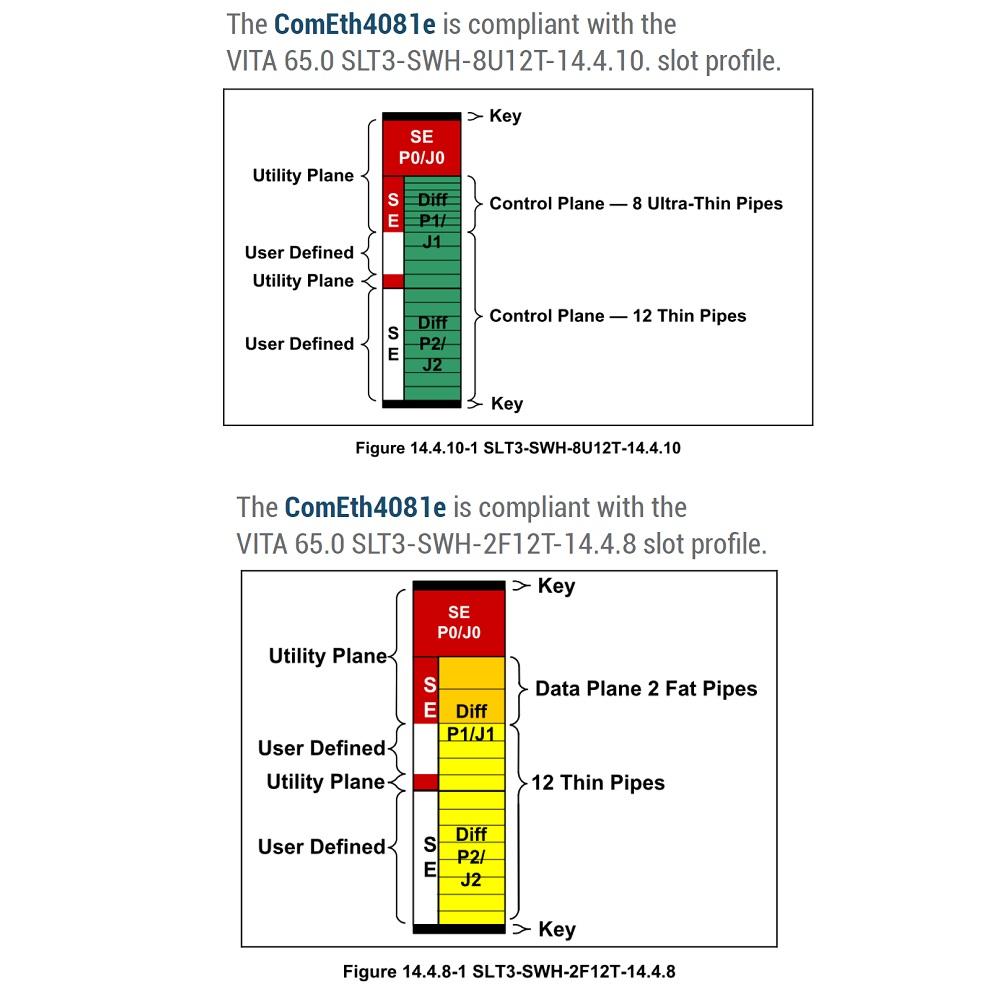

  • SLT3-SWH-8U12T-14.4.10 and SLT3-SWH-2F12T-14.4.8 slot profiles
  • 40GbE, 10GbE and 1Gigabit Ethernet switch
  • Up to 22 ports:
    • 8x 10GBase-KR/1GBase-KX4 ports or 2 40GBase-KR4 ports via P1
    • 12x 10GBase-T ports via P1 and P2
    • 2x 10Gigabit Ethernet front panel ports via LC connector
  • Speed, duplex, auto-negotiation, flow control and power management on all ports
  • QoS on all ports
  • VLAN support / 802.1Q tagging
  • Port mirroring and port rights management
  • Static MAC address list and static IPM address list
  • Port static authentication
  • IEEE 802.1X port-based authentication
  • Ingress filtering
  • Storm prevention
  • Ingress / egress access lists
  • Static trunking / LACP
  • STP / RSTP
  • Secure switch management by HTTPS, SSH or SNMPv3
  • Login/password, key or certificate authentication
  • IGMP snooping (v1, v2, v3) and MLD snooping (v1, v2)
  • Layer3: ICMP, Proxy-ARP, DHCP-Relay, NAT, IPv4 routing (unicast/multicast), static IP routing (unicast and multicast), RIPv1, RIPv2 (IPv4), RIPng(IPv6), OSPFv2 (IPv4) / OSPFv3(IPv6)
  • PBIT results
  • Five different environment classes: standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged (-40°C to +75/85°C) and conduction-cooled (-40°C to +71/85°C)
  • 2 years warranty

Order Information

ComEth4081e-100

3U VPX 40GbE Switch, 0°C .. +55°C

ComEth4081e-100e

3U VPX 40GbE Switch, -20°C .. +65°C

ComEth4081e-100r1

3U VPX 40GbE Switch, -40°C .. +75°C

ComEth4081e-100r2

3U VPX 40GbE Switch, -40°C .. +85°C

ComEth4081e-100c1

3U VPX 40GbE Switch, conduction-cooled -40°C .. +71°C

ComEth4081e-100c2

3U VPX 40GbE Switch, conduction-cooled -40°C .. +85°C

Technical Documentation

ComEth4081e-DS

ComEth4081e Data Sheet
