cPCI-3510(BL) 3U CompactPCI Intel Core i7 Gen 4/5 CPU Board with DVI-I Graphics Interface and opt. PMC/XMC Slot

Core i7 Gen 4/5 CPU board with two Gigabit Ethernet ports, DVI-I graphics interface and opt. PMC/XMC slot. The 3U CompactPCI CPU board has up to 16 GB DDR3L-1333 MHz soldered ECC SDRAM.

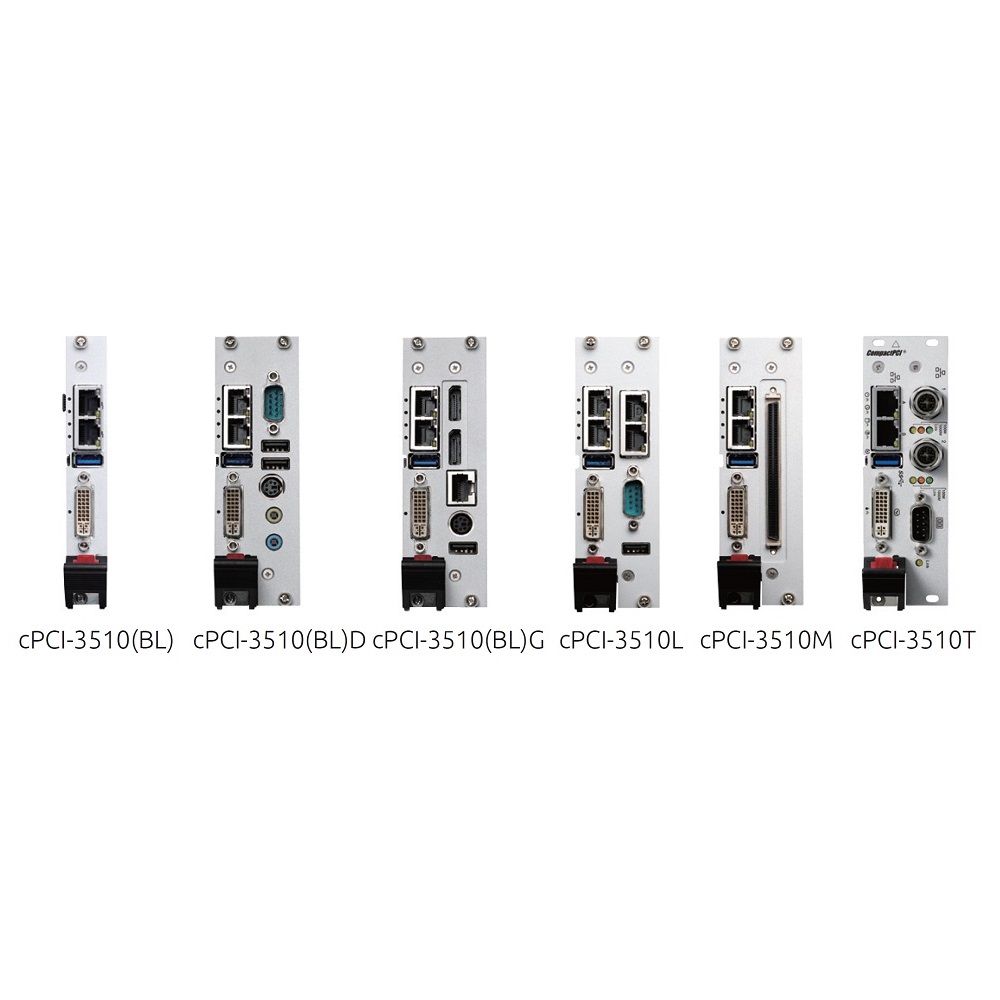

The cPCI-3510(BL) offers two Gigabit Ethernet ports, one USB 3.0 ports and one DVI-I port. In addition the 8HP versions provide up to two additional Gigabit Ethernet ports, two USB 2.0 ports, one mouse/keyboard port, one RS-232/422/485/485 port, one DisplayPort, one SATA port, and an audio interface with line out and microphone input. On the 12HP version is also a PMC/XMC site. The 8/12HP versions have a SATA interface which allows to use a 2.5" hard disk.

The board supports Microsoft Windows 7 and Windows 8, Red Hat Enterprise Linux 6.4, Fedora 18, and Wind River VxWorks 6.9.

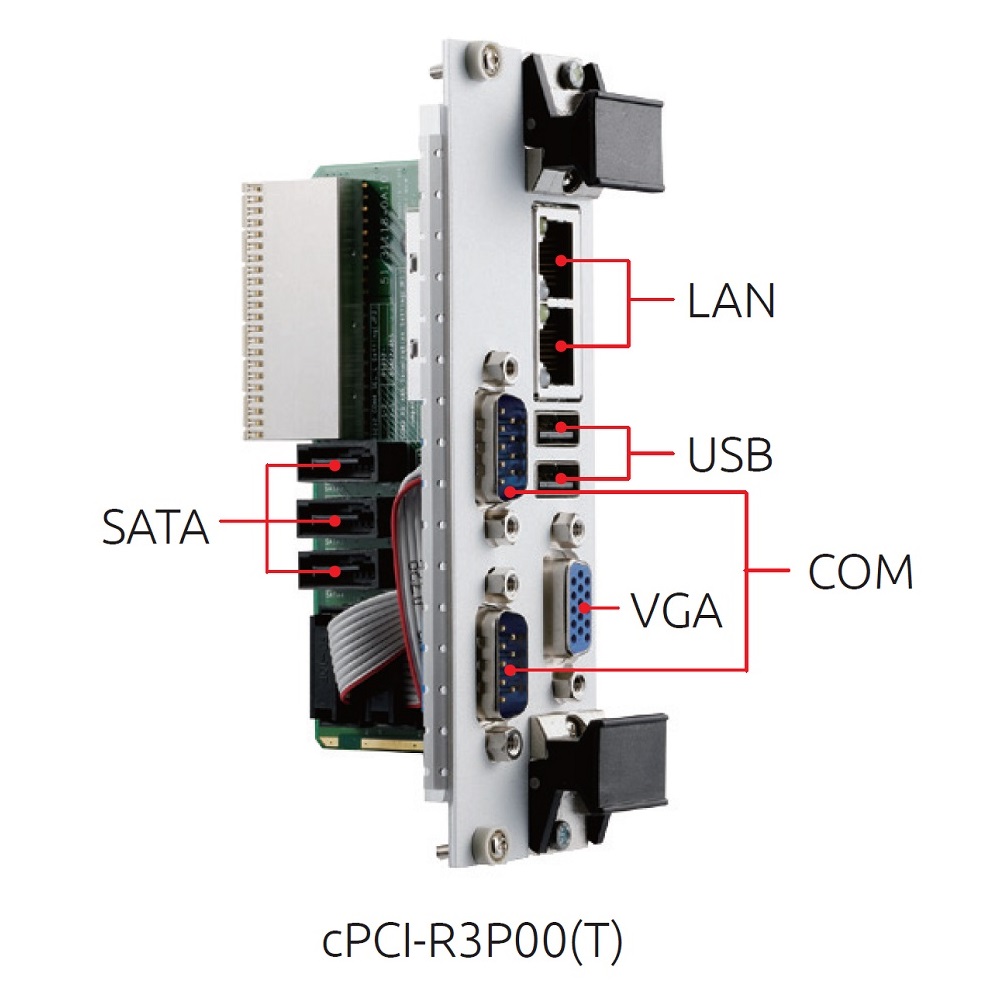

The cPCI-R3P00 transition module has two Gigabit Ethernet ports, 2 RS-232/422/485 ports, two USB 2.0 ports, three SATA ports, and one VGA port.

ORDER NOW

Technical Description

proimg1
  • 3U 4/8/12HP universal-slot CPU board, PICMG 2.0 R 3.0, PICMG 2.1 R 2.0 hot-swap, PICMG 2.9 R 1.0, 32bit/66MHz cPCI bus interface, 3.3/5 Vio
  • Quad core 2.6 GHz Intel Core i7-5700EQ CPU
    Quad core 2.4 GHz Intel Core i7-4700EQ CPU,
    Dual core 1.6 GHz Intel Core i5-4402E CPU
  • Intel QM87 chipset
  • Up to 16 GB DDR3L-1333 ECC SDRAM (cPCI-3510BL) or
    up to 8 GB DDR3L-1600 ECC SDRAM (cPCI-3510), soldered
  • 3 independent graphics ports integrated in the processor, DVI-I front panel connector, 2048×1536 pixel resolution, two DisplayPorts (DVI, VGA and HDMI) at the cPCI-3510G, 2560×1600 Pixel resolution
  • CFast socket or mSATA socket
  • SATA port for a 2.5″ HDD on the 8/12HP version
  • PMC/XMC slot on the 12HP version, 64bit/66 MHz
  • Up to six Gigabit Ethernet ports, up to 4 GbE front panel ports and 2 rear I/O ports, Intel I217 PHY, I210 and 82574L controller
  • Up to four RS-232/422/485/485 ports, one front panel port, two rear I/O ports and one port to the RTM on the cPCI-3510G version
  • Up to eight USB ports, one USB 3.0 front panel port, up to 2 USB 2.0 front panel ports, 3 USB 2.0 rear I/O ports and 2 USB 2.0 ports to the RTM
  • PS/2 mouse/ keyboard front panel port on the cPCI-3510G version
  • Opt. transition module with connectors for 2 Gigabit Ethernet ports, 2 RS-232/422/485 ports, two USB 2.0 ports, 3 SATA ports (RAID 0/1/5/10 support), and one VGA port
  • Audio Line-in and Line-out front panel ports on the cPCI-3510D
  • AMI EFI BIOS with 64 Mbit SPI Flash
  • HW monitor and watchdog timer
  • -20°C .. +70°C (Core i7-4700EQ and Core i7-5700EQ at 47W) and -40°C .. +85°C (Core i5-4402E, Core i7-4700EQ, and Core i7-5700EQ at 37W) operating temperature range
  • 2 years warranty

Order Information

cPCI-3510-721

3U/4HP CPCI Core i7-4700 CPU board, 8 GB RAM, 32GB SSD

cPCI-3510D-710

3U/8HP CPCI Core i7-4700 CPU board, 4 GB RAM, RS-232, 2 USB 2.0, PS/2, Audio

cPCI-3510G-710

3U/8HP CPCI Core i7-4700 CPU board, 4 GB RAM, RS-232, 2 DisplayPort, PS/2, USB 2.0

cPCI-3510L-710

3U/8HP CPCI Core i7-4700 CPU board, 4 GB RAM, 4 GbE, USB 2.0, RS-232

cPCI-3510P-710

3U/12HP CPCI Core i7-4700 CPU board, 4 GB RAM, RS-232, 2 USB 2.0, PS/2, Audio

cPCI-3510BL-831

3U/4HP CPCI Core i7-5700 CPU board, 16 GB RAM, 32GB SSD

cPCI-3510BLD-831

3U/8HP CPCI Core i7-5700 CPU board, 16 GB RAM, RS-232, 2 USB 2.0, PS/2, Audio

cPCI-3510BLG-831

3U/8HP CPCI Core i7-5700 CPU board, 16 GB RAM, RJ-45 COM, 2 DisplayPorts, PS/2, USB 2.0

cPCI-R3P00

3U 2 slot rear transition module for cPCI-3510, 50mm, 2 GbE, 2 RS-232/422/485, 2 USB, 3 SATA, VGA

cPCI-R3P00T

3U 2 slot rear transition module for cPCI-3510, 80mm, 2 GbE, 2 RS-232/422/485, 2 USB, 3 SATA, VGA

DB-3CFAST

CompactFlash adapter board

DP-DVI cable

DisplayPort to DVI cable

DP-VGA cable

DisplayPort to VGA cable

DP-HDMI cable

DisplayPort to HDMI cable
