cPCI-3520 3U CompactPCI Intel Xeon/Core i7 Gen 9 CPU Board with DVI-I Graphics Interface and opt. PMC/XMC Slot

Xeon/Core i7 Gen 9 CPU board with two Gigabit Ethernet ports, DVI-I graphics interface and opt. PMC/XMC slot. The 3U 4/8/12HP CompactPCI board has up to 32 GB DDR4-2666 MHz ECC SDRAM in 2 SODIMM slots.

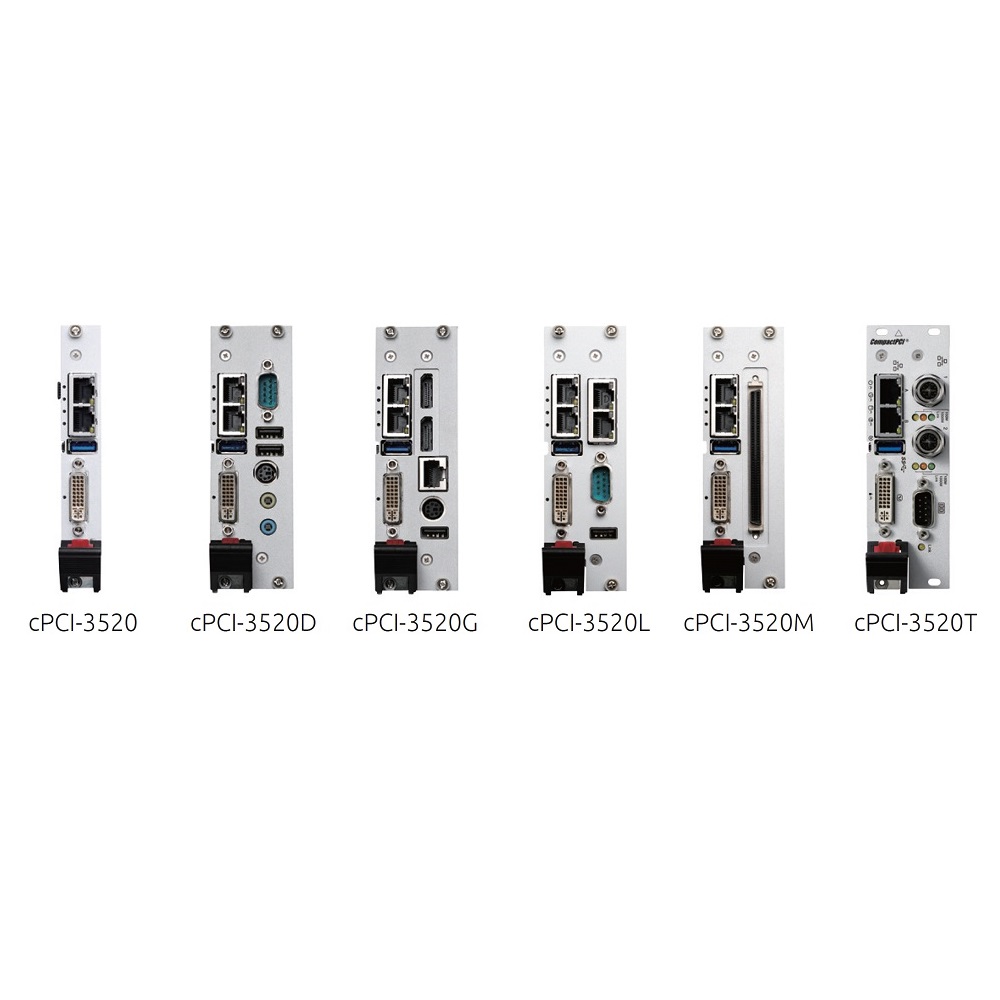

The cPCI-3520 offers two Gigabit Ethernet ports, one USB 3.0 port, one DVI-I port and an onboard SSD. In addition the 8HP/12HP versions provide up to two additional Gigabit Ethernet ports, an PMC/XMC site, two USB 2.0 ports, one mouse/keyboard port, two RS-232/422/485/485 ports, two DisplayPorts, one SATA port, an audio interface with line out and line in and an CFast socket.

The board supports Microsoft Windows 10, Red Hat Enterprise Linux 6.4, Fedora 18, QNX SDP 7.0 and Wind River VxWorks.

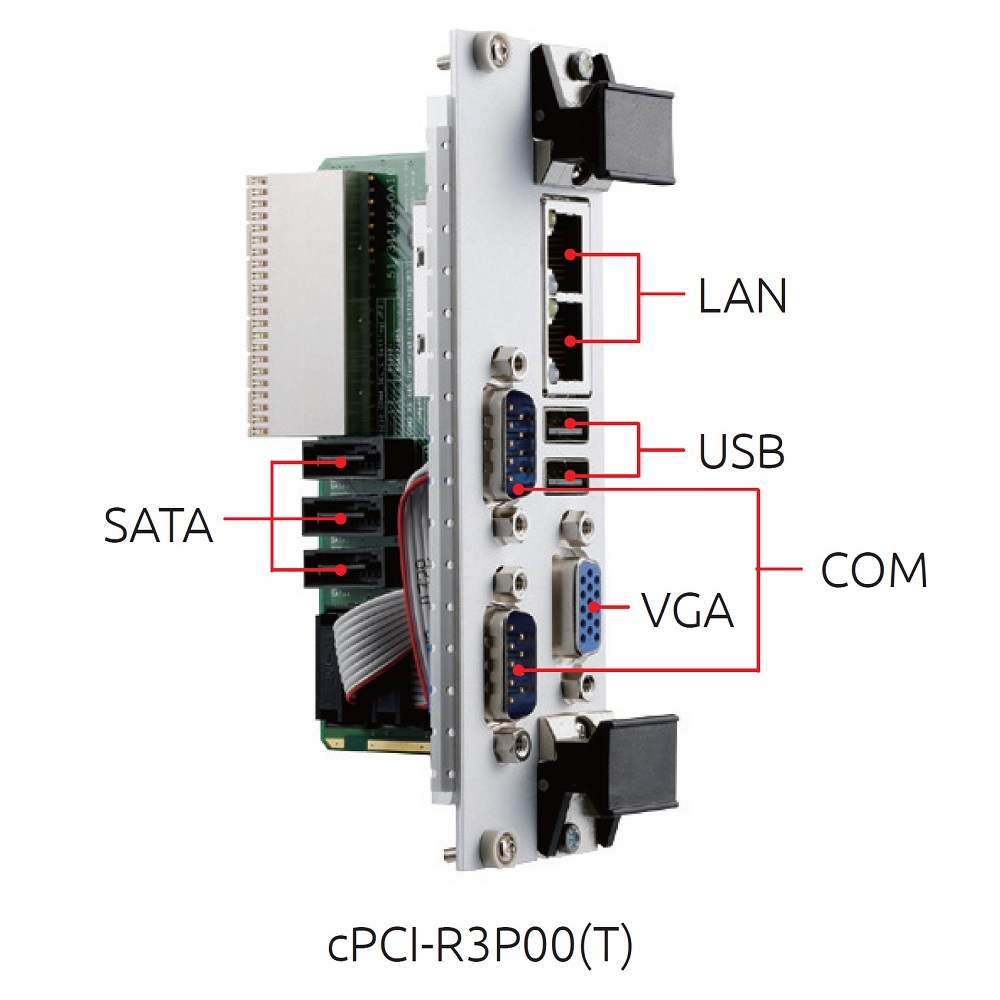

The cPCI-R3P00(T) transition module has two Gigabit Ethernet ports, two RS-232/422/485 ports, two USB 2.0 ports, three SATA ports, and one VGA port.

ORDER NOW

Technical Description

proimg1
  • 3U 4/8/12HP universal-slot CPU board, PICMG 2.0 R3.0, PICMG 2.1 R2.0 hot-swap, PICMG 2.9 R1.0, 32bit/66MHz cPCI bus interface, 3.3/5 Vio
  • Six core 2.0 (4.2) GHz Intel Xeon E-2276ML CPU
    Six core 1.9 (4.1) GHz Intel Core i7-9850HL CPU,
    Six core 2.7 (4.4) GHz Intel Core i7-9850HE CPU
  • Intel CM246 chipset
  • Up to 32 GB DDR4-2666 ECC SDRAM
  • 3 independent graphics ports with 3D engine integrated in the processor, DVI-I front panel connector, 2048×1536 pixel resolution, two DisplayPorts (DVI, VGA and HDMI) at the cPCI-3520G, 2560×1440 Pixel resolution
  • CFast socket or mSATA socket
  • SATA port for a 2.5″ SSD on the 8/12HP version
  • PMC/XMC slot on the cPCI-3520P/S version, 64bit/66 MHz
  • Up to six Gigabit Ethernet ports, up to 4 GbE front panel ports and 2 rear I/O ports, Intel I219LM, I210IT and I210L controller
  • Up to four RS-232/422/485/485 ports, one front panel port, two rear I/O ports and one port to the RTM on the cPCI-3520G version
  • Up to 8 USB ports, one USB 3.0 front panel port, up to 2 USB 2.0 front panel ports, 3 USB 2.0 rear I/O ports and 2 USB 2.0 ports to the RTM
  • PS/2 mouse/ keyboard front panel port on the cPCI-3520D/G version
  • Opt. transition module with connectors for 2 Gigabit Ethernet ports, 2 RS-232/422/485 ports, two USB 2.0 ports, 3 SATA ports (RAID 0/1/5/10 support), and one VGA port
  • Audio Line-in and Line-out front panel ports on the cPCI-3520D
  • AMI UEFI BIOS with dual 128Mbit SPI Flash
  • HW monitor and watchdog timer
  • -20°C .. +70°C and -40°C .. +85°C operating temperature range
  • 2 years warranty

Order Information

cPCI-3520-711

3U/4HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 32GB SSD

cPCI-3520-912

3U/4HP CPCI Xeon E-2276ML CPU board, 16 GB RAM, 128GB SSD

cPCI-3520D-710

3U/8HP CPCI Core i7-9850HL CPU board, 16 GB RAM, RS232, PS/2, 2x USB 2.0, audio, CFast socket, SATA

cPCI-3520G-710

3U/8HP CPCI Core i7-9850HL CPU board, 16 GB RAM, RS232, 2x DisplayPort, PS/2, USB 2.0, CFast socket, SATA

cPCI-3520L-710

3U/12HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 4x GbE, 2x USB 2.0, CFast socket, SATA

cPCI-3520M-710

3U/8HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 3 DVI, 2x GbE, 2x USB 2.0, 2x RS-232, PS/2, audio, CFast socket, SATA

cPCI-3520P-710

3U/12HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 2 GbE, RS232, 2x USB 2.0, PS/2, audio, CFast socket, SATA, PMC/XMC

cPCI-3520S-710

3U/8HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 2 GbE, CFast, PMC/XMC site

cPCI-3520T-710

3U/8HP CPCI Core i7-9850HL CPU board, 16 GB RAM, 2x GbE, 2x GbE MIL-STD M12, CFast socket, SATA

cPCI-R3P00

3U/8HP 2 slot rear transition module for cPCI-3520, 50mm, 2 GbE, 2 RS-232/422/485, 2 USB, 3 SATA, VGA

cPCI-R3P00T

3U/8HP 2 slot rear transition module for cPCI-3520, 80mm, 2 GbE, 2 RS-232/422/485, 2 USB, 3 SATA, VGA

DB-3CFAST

CompactFlash adapter board

DP-DVI cable

DisplayPort to DVI cable

DP-VGA cable

DisplayPort to VGA cable

DP-HDMI cable

DisplayPort to HDMI cable

Technical Documentation

cPCI-3520-DS

cPCI-3520 data sheet
