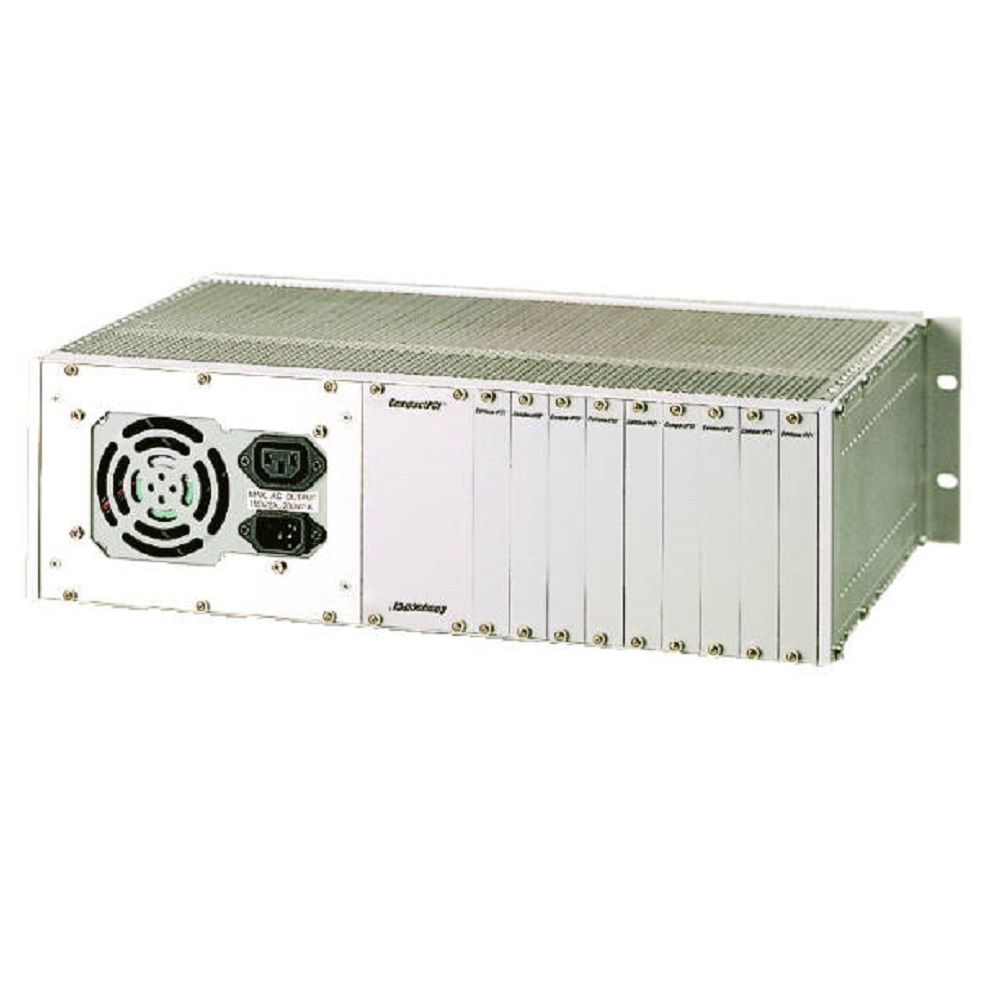

cPCIS-1100A 3U 8 Slot CompactPCI Chassis

3U CompactPCI 19"-chassis with 8 slots for 3U boards. The robust and reliable chassis cPCIS-1100A from ADLINK is suitable for industrial automation and test & measurement applications.

The cPCIS-1100A is designed for system-slot CPUs of 4..12HP and provides one system and seven 32-bit CompactPCI I/O slots and is available with 400W ATX or two 250W hot swappable power supplies. There are two versions with front I/O and front & rear I/O available.

The chassis is in combination with ADLINK's CPU boards available, e.g. cPCI-3510BL or cPCI-3520.

ORDER NOW

Technical Description

proimg1
  • 3U 19″-rackmount chassis for 3U CompactPCI boards, PICMG 2.0 Rev. 2.1, PICMG 2.1 hot swappable
  • Eight 32-bit CompactPCI slot opt. 64-bit
  • Backplane with 10 layer multilayer
  • Front I/O or front&rear I/O
  • Power supply via 400W ATX AC power supply or two 250W hot swappable power supplies
  • Dimensions: 482.56 x 133.35 x 250.00mm (WxHxD)
  • For the chassis’s cooling are external fans required
  • Operating temperature range 0..50°C
  • IEEE 1101.10 and 1101.11 compliant
  • CE certified
  • 2 years warranty

Order Information

cPCIS-1100A

3U 19" CompactPCI chassis with 8 32-bit slots, 4000W ATX AC power supply

cPCIS-1100AR

3U 19" CompactPCI chassis with 8 32-bit slots with rear I/O, 4000W ATX AC power supply

cPCIS-1102

3U 19" CompactPCI chassis with 8 32-bit slots, two 250W hot swappable AC power supply

cPCIS-1102R

3U 19" CompactPCI chassis with 8 32-bit slots with rear I/O, two 250W hot swappable AC power supply

cPB-3208

8 slot 3U cPCI backplane

cPB-3208R

8 slot 3U cPCI backplane with rear I/O

Technical Documentation

cPCIS-1100-DS

cPCIS-1100 data sheet

cPCIS-1100-UM

cPCIS-1100 user manual

cPB-3208-DS

cPB-3208 data sheet
