cPCIS-2630/2830 4U Chassis with 8 3U CompactPCI Slots

4U CompactPCI 19"-chassis with 8 slots for 3U boards. The robust and reliable chassis cPCIS-2630/2830 from ADLINK is suitable for industrial automation and Test&Measurement applications.
The cPCIS-2630/2830 is designed for system-slot CPUs of 4..12HP and provides 7 32-bit CompactPCI I/O slots and has a 400W 110/240VAC ATX power supply. Versions with front I/O or front/rear I/O are available. An alarm module supervises the chassis's internal temperature and the status of the fans. Alerts are indicated via LEDs and a buzzer. The module indicates the power supplies of 5V, 3.3V and +/-12V via LED.

The chassis is in combination with ADLINK's CPU boards available, e.g. cPCI-3510BL or cPCI-3520.

ORDER NOW

Technical Description

proimg1
  • 4U 19″-rackmount chassis for 3U CompactPCI boards, PICMG 2.0 Rev. 2.1, PICMG 2.1 hot swappable
  • 10 layer multilayer backplane with 8 32-bit CompactPCI slots
  • cPCIS-2630: backplane cBP-3208 with front I/O

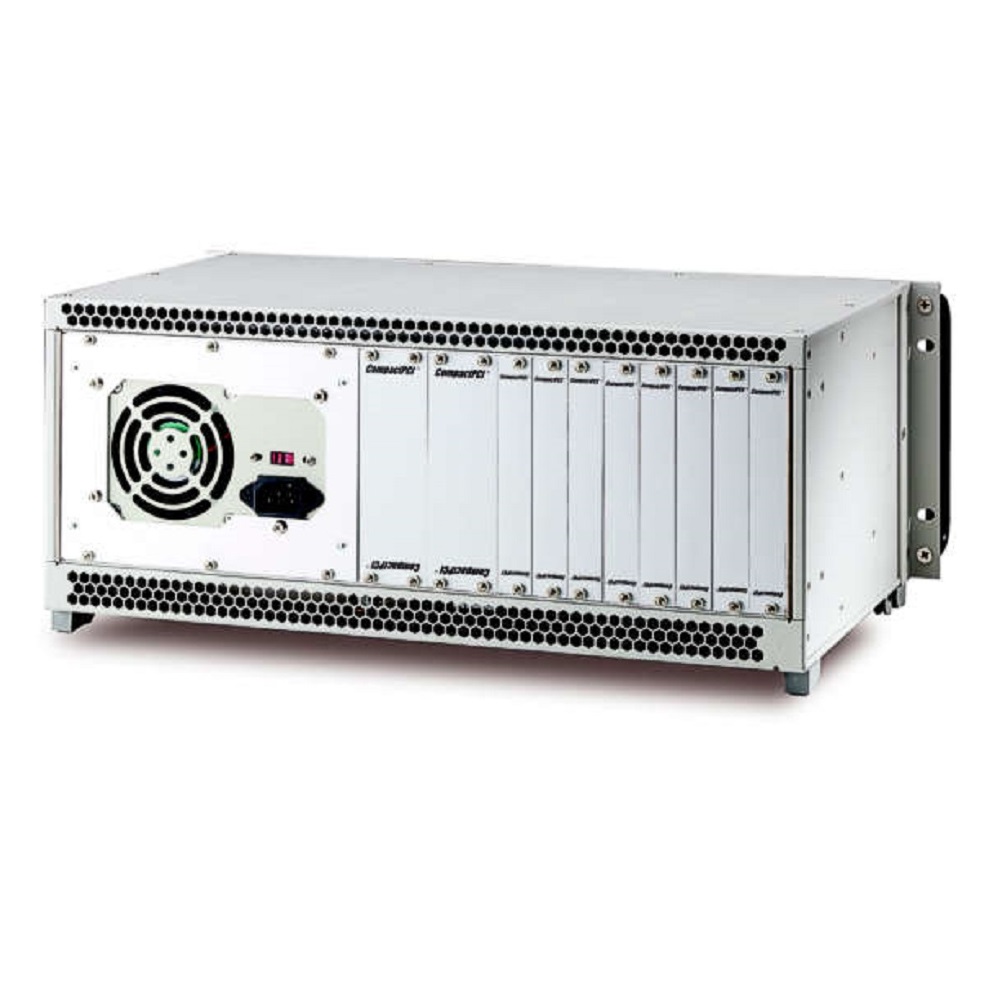

    cPCIS-2630R: backplane cPB-3208R with front/rear I/O
  • Power supply via 400W 110/240VAC ATX power supply

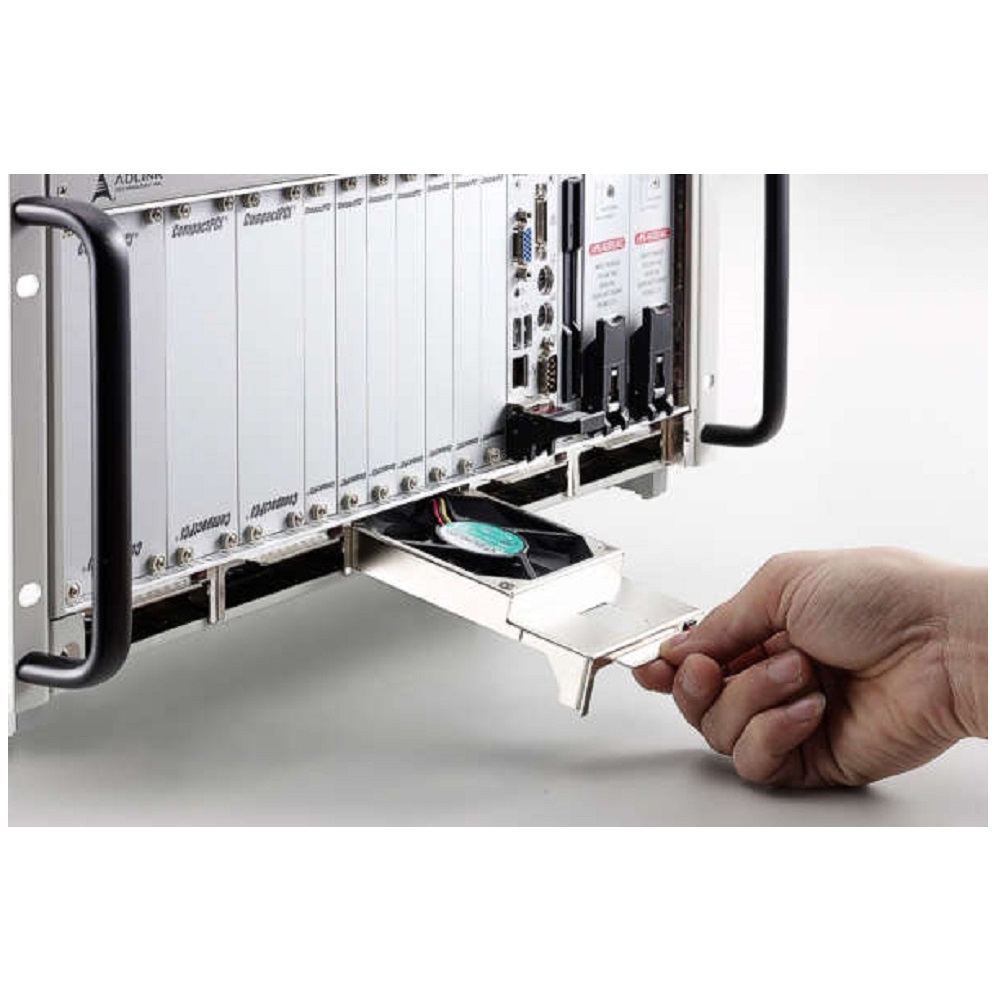

  • Cooling via 5 hot swappable fans

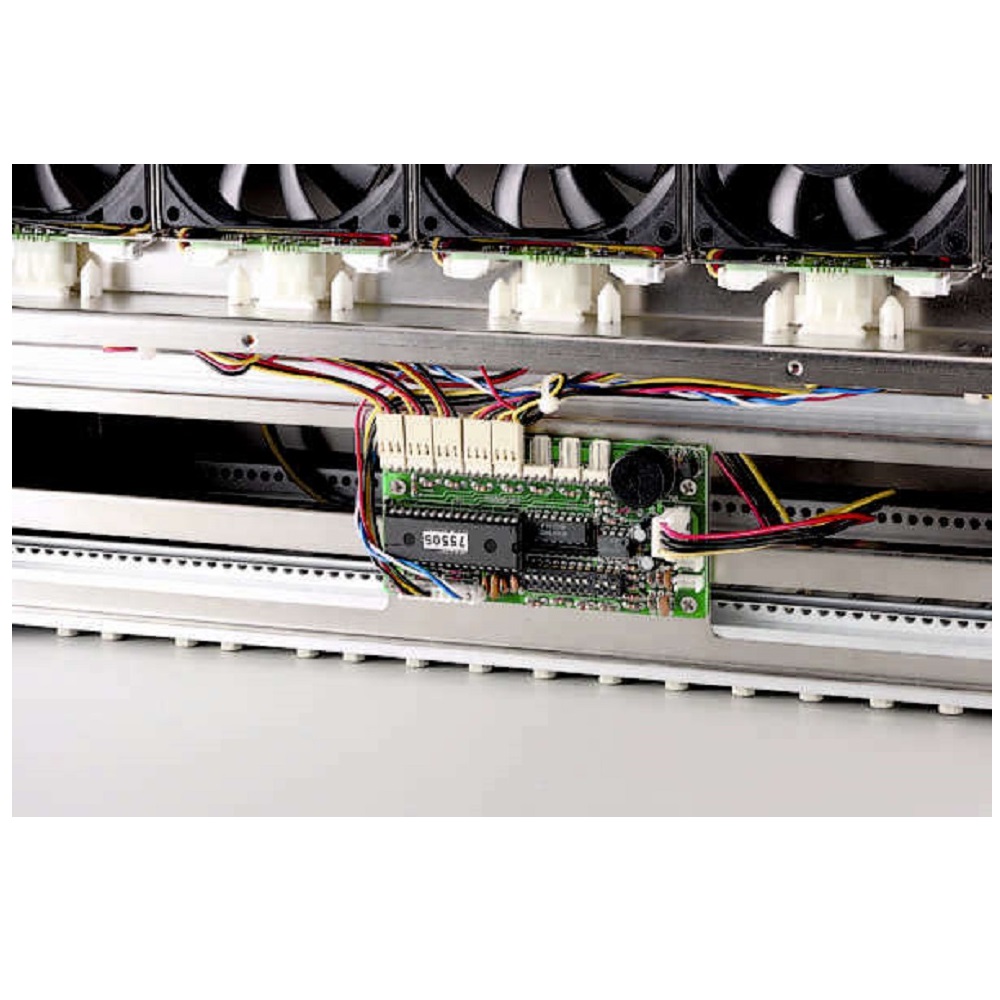

  • Alarm module for monitoring of the chassis’s internal temperature and fans status. Alarm indication via LED and buzzer, LED indicators for 5V, 3.3V, and +/-12V power
  • Dimensions:
    cPCIS-2630: 448.4 x 177.8 x 258mm, ( WxHxD w.o. handles)
    cPCIS-2830: 448.4 x 177.8 x 288mm, ( WxHxD w.o. handles)
  • Operating temperature range 0..60°C
  • IEEE 1101.10 und 1101.11 compliant
  • CE certified, FCC class B
  • 2 years warranty

Order Information

cPCIS-2630

4U 19" cPCI chassis, 8 32-bit slots, FP I/O, 400W ATX AC power supply, 50mm RTM slots

cPCIS-2630R

4U 19" cPCI chassis, 8 32-bit slots, FP/rear I/O, 400W ATX AC power supply, 50mm RTM slots

cPCIS-2830R

4U 19" cPCI chassis, 8 32-bit slots, FP I/O, 400W ATX AC power supply, 80mm RTM slots

cPCIS-2830R

4U 19" cPCI chassis, 8 32-bit slots, FP/rear I/O, 400W ATX AC power supply, 80mm RTM slots

Technical Documentation

cPCIS-2630/2830-DS

cPCIS-2630/2830 data sheet

cPCIS-2630/2830-UM

cPCIS-2630/2830 user manual

cPB-3208-DS

cPB-3208 data sheet
