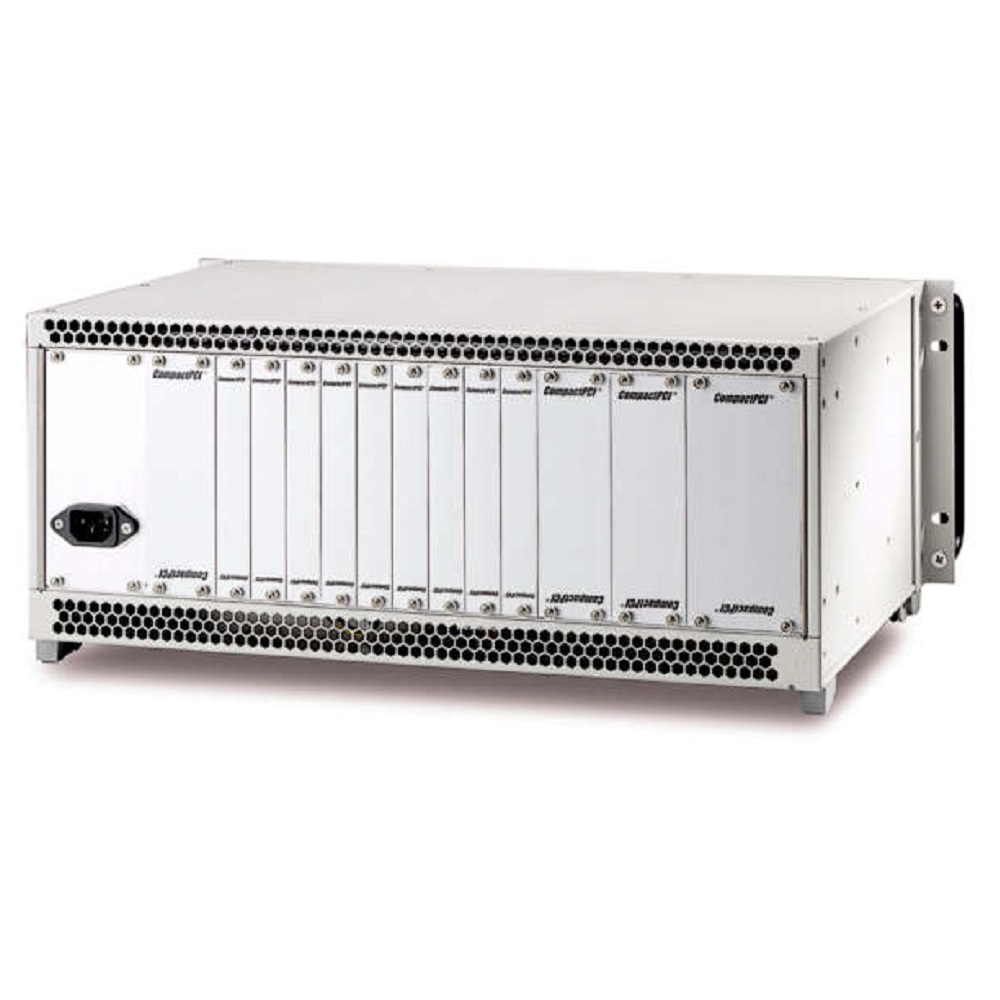

cPCIS-2632/2832 4U cPCI Chassis with 8 3U Slots and redundant PICMG2.11 Power Supplies

4U CompactPCI 19"-chassis with 8 slots for 3U boards. The robust and reliable chassis cPCIS-2632/2832 from ADLINK is suitable for applications in industrial automation and Test&Measurement.
The cPCIS-2632/2832 is designed for system-slot CPUs of 4..12HP and provides 7 32-bit CompactPCI I/O slots. The redundant power supply is realized with hot pluggable 250W 100..240VAC PICMG 2.11 power supply modules. Versions with front I/O or front/rear I/O are available.
An alarm module monitors the chassis' internal temperature and the status of the fans. Alerts are indicated via LED and buzzer. The module indicates the power supplies of 5V, 3.3V and +/-12V via LEDs.

The chassis is in combination with ADLINK's CPU boards available, e.g. cPCI-3510BL or cPCI-3520.

ORDER NOW

Technical Description

proimg1
  • 4U 19″-rackmount chassis for 3U CompactPCI boards, PICMG 2.0 Rev. 2.1, PICMG 2.1 hot swappable
  • 10 layer multilayer backplane with 8 32-bit cPCI slots
  • cPCIS-2632: backplane cBP-3208 with front I/O
    cPCIS-2632R: backplane cPB-3208R with front/rear I/O
  • Power supply via 250W 100..240VAC PICMG 2.11 power supplies (opt. 18..36VDC or 36..72VDC)
  • Cooling via 5 hot swappable fans
  • Alarm module for monitoring of the chassis’ internal temperature and fans status. Alarm indication via LED and buzzer, LED indicators for 5V, 3.3V, and +/-12V power
  • Dimensions:
    cPCIS-2632: 448.4 x 177.8 x 258mm, ( WxHxD w.o. handles)
    cPCIS-2832: 448.4 x 177.8 x 288mm, ( WxHxD w.o. handles)
  • Operating temperature range 0..60°C
  • IEEE 1101.10 und 1101.11 compliant
  • CE certified, FCC class B
  • 2 years warranty

Order Information

cPCIS-2632

4U 19" cPCI chassis, 8 32-bit slots, FP I/O, 50mm RTM slots

cPCIS-2632R

4U 19" cPCI chassis, 8 32-bit slots, FP/rear I/O, 50mm RTM slots

cPCIS-2832

4U 19" cPCI chassis, 8 32-bit slots, FP I/O, 80mm RTM slots

cPCIS-2832R

4U 19" cPCI chassis, 8 32-bit slots, FP/rear I/O, 80mm RTM slots

cPS-H325AC

250W PICMG 2.11 100..240VAC power supply

cPB-3208

8 slot 3U cPCI backplane

cPB-3208R

8 slot 3U cPCI backplane with rear I/O

cPCI-Panel-3U1S

3U front panel 4HP

Technical Documentation

cPCIS-2632/2832-DS

cPCIS-2632/2832 data sheet

cPCIS-2632/2832-UM

cPCIS-2632/2832 user manual

cPS-H325/AC+48-DS

cPS-H325/AC+cPS-H325/48 data sheet

cPB-3208-DS

cPB-3208 data sheet
