cPCIS-6400U 4U cPCI Chassis with five 6U Slots, H.110 TDM-Bus and 2+1 redundant PICMG 2.11 Power Supplies

4U cPCI chassis with five 6U slots, H.110 TDM bus and 2+1 redundant PICMG 2.11 power supplies. The compact 19"-chassis cPCIS-6400U from ADLINK provides front/rear I/O according IEEE 1011.11. The system slot may equipped with 4 or 8HP CPU boards. The robust and reliable chassis is suitable for applications in industry and telecommunication.

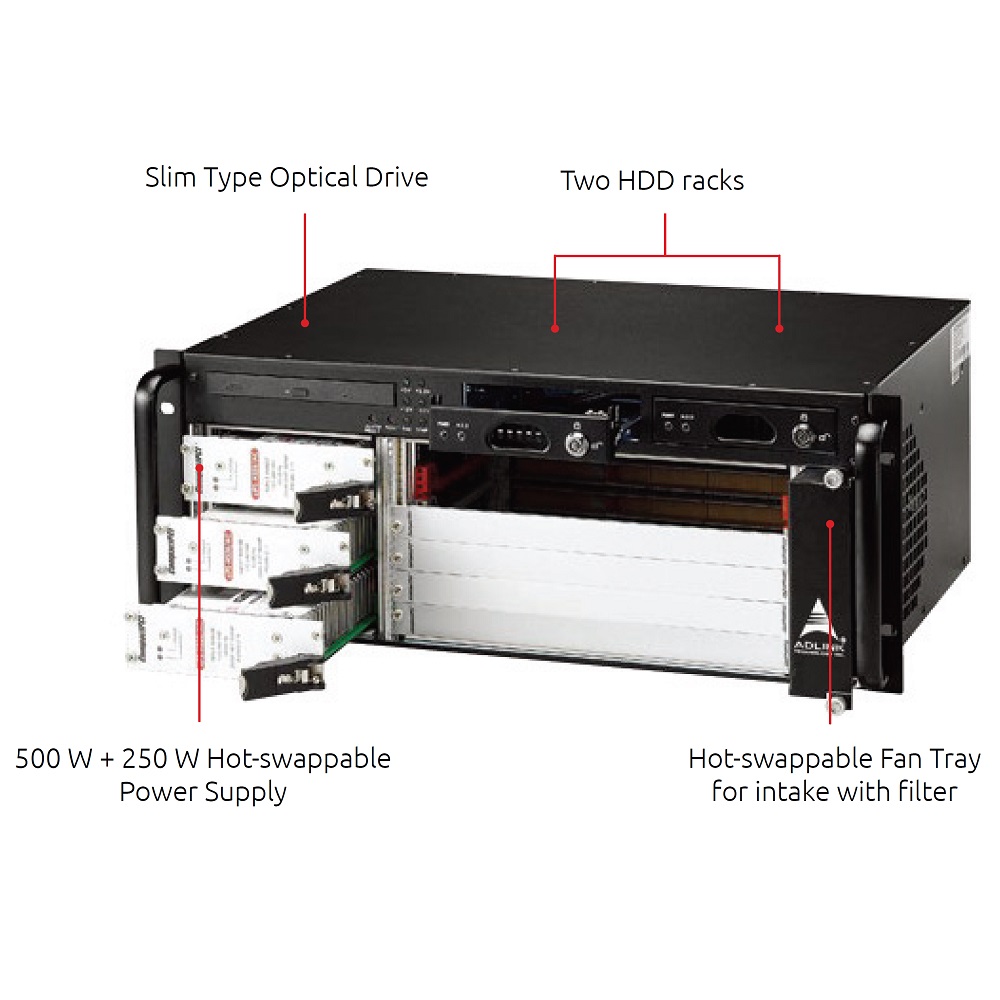

The chassis offers two 3.5'' EIDE/SCSI removable racks, a slim-line floppy, and a CD/DVD ROM drive (optional R/RW). The 2+1 PICMG 2.11 hot swappable, redundant power supply delivers 500W+250W from 100..240VAC input. Optional are 24VDC and -48VDC power supplies available. The chassis cooling is done by 5 hot swappable fans. An alarm panel monitors voltages, chassis temperature, and the fan status.

The chassis is available in combination with ADLINK's CPU boards like e.g. cPCI-6540, others on request.

ORDER NOW

Technical Description

proimg1
  • 4U 19″-rack mounting chassis for 6U CompactPCI boards, PICMG 2.0 Rev. 3.0, PICMG 2.1 hot swappable
  • 5 CompactPCI slots
  • Front/rear I/O according IEEE 10.11.11
  • Slim-line floppy, CD/DVD-ROM (optional R/RW), 2 removable racks for 3.5” EIDE/SATA/SCSI hard disks
  • Backplane 64-bit, 10 layer, H.110
  • Guarded power and reset switch
  • 2+1 redundant power supply via 250W 100..240VAC PICMG 2.11 power supplies (opt. 18..36VDC or 36..72VDC)
  • Dimensions 482.75 x 176.9 x 296.2 mm (BxHxT)

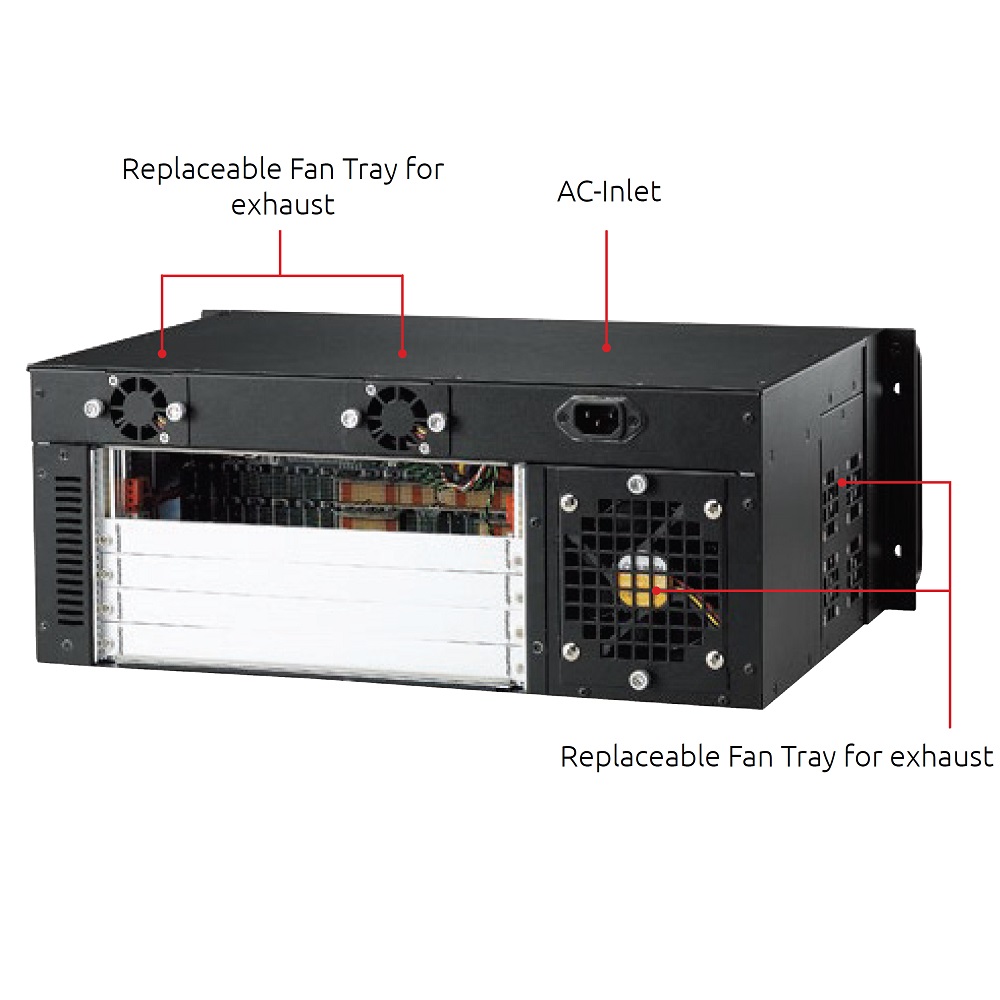

  • Cooling with 5 hot swappable filtered DC fans
  • Alarm panel for supervision of voltages, chassis temperature, and fan status
  • Operating temperature 0..55°C
  • IEEE 1101.10 und 1101.11 compliant
  • 2 years warranty

Order Information

cPCIS-6400U/AC

4U 19" cPCI chassis, 5 slots 64-bit backplane, H.110, 2 removable EIDE racks, AC input, 3 power supplies cPS-H325AC

cPCIS-6400U/32

4U 19" cPCI chassis, 5 slots 64-bit backplane, H.110, 2 removable EIDE racks, AC input (please order the power supplies separately)

cPCIS-6400US/NCD/AC

4U 19" cPCI chassis, 5 slots 64-bit backplane, H.110, 2 removable EIDE racks, AC input, 3 power supplies cPS-H325AC

Versions w.o. H.110

on request

cPS-H325AC

250W PICMG 2.11 100..240VAC power supply

cPB-6105R

5 slot 32-bit cPCI backplane, rear I/O, H.110

cPB-6405R

5 slot 64-bit cPCI backplane, rear I/O, H.110

Technical Documentation

cPCIS-6400U-DS

cPCIS-6400U data sheet

cPCIS-6400U-UM

cPCIS-6400U user manual

cPS-H325AC-DS

cPS-H325AC data sheet

cBP-6xxx-DS

cBP-6xxx data sheet
