cPCIS-6400X 4U CompactPCI Chassis with 5 Slots and H.110

4U CompactPCI Chassis with 5 Slots and H.110. The compact 19"-chassis cPCIS-6400X from ADLINK provides front/rear I/O according IEEE 1011.11. The system-slot may equipped with 4 or 8HP CPU boards. The robust and reliable chassis is suitable for applications in industry and telecommunication.

The chassis offers two removable 3.5'' EIDE/SCSI racks, a slim-line floppy, a CD/DVD (optional R/RW) drive, and a 280W AC power supply with wide-range input. The chassis's 5 fans are hot swappable. An alarm module monitors the chassis's temperature, and fan status.

The chassis is available in combination with ADLINK's CPU boards e.g.: cPCI-6540, others on request.

ORDER NOW

Technical Description

proimg1
  • 4U 19″-rack mount chassis for 6U CompactPCI boards, PICMG 2.0 Rev. 3.0, PICMG 2.1 hot swappable
  • 5 CompactPCI slots
  • Front/rear I/O according IEEE 10.11.11
  • Slim-line floppy, CD-ROM, 2 removable rack for 3.5″ EIDE/SCSI hard disks
  • 64-bit bus, 10 layer, H.110
  • Guarded I/O, and reset switch
  • 280W ATX power supply with universal input 90..260VAC, IEC320-C14
  • Dimensions 482.75 x 176.9 x 296.2 mm (WxHxD)

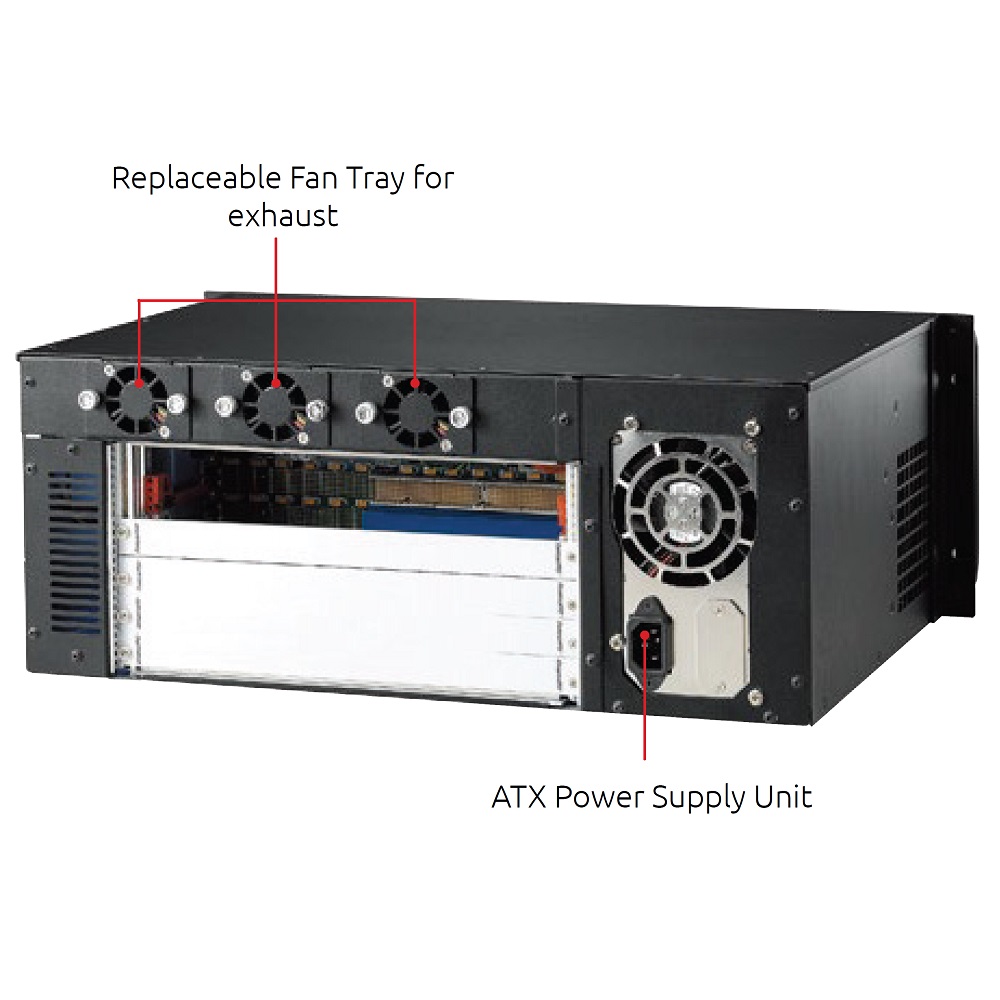

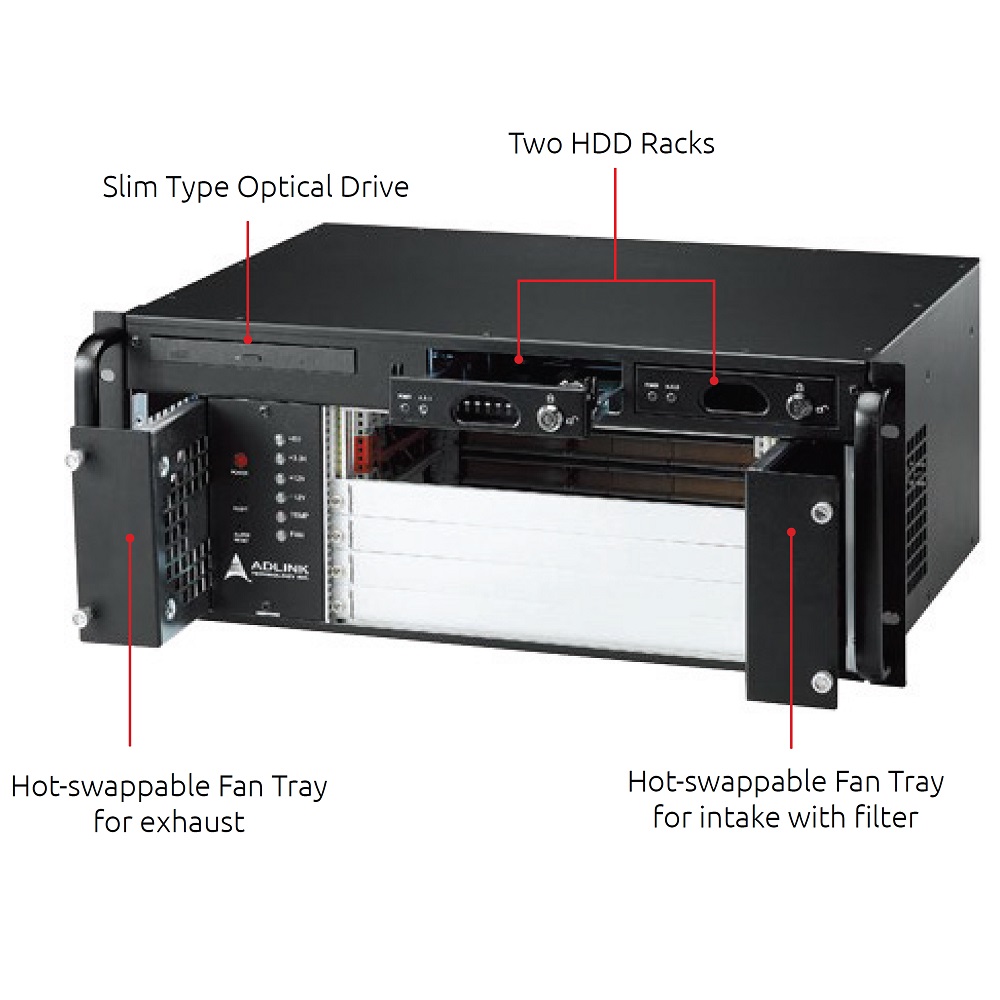

  • Cooling with 5 hot swappable filtered DC fans
  • Alarm panel for supervision of chassis temperature, and fan status
  • Operating temperature 0..55°C
  • IEEE 1101.10 und 1101.11 compliant
  • 2 years warranty

Order Information

cPCIS-6400X

4U 19" cPCI chassis with 5 slots, cBP-6405R 64-bit H.110 backplane, 2 removable EIDE racks

cPCIS-6400X/32

4U 19" cPCI chassis with 5 slots, cBP-6405R 32-bit H.110 backplane, 2 removable EIDE racks

cPCIS-6400XS/NCD

4U 19" cPCI chassis with 5 slots, cBP-6405R 64-bit H.110 backplane, 2 removable SCSI racks

cPCIS-6400SP

Starter kit: cPCIS-6400X chassis, cPCI6780V CPU, cPCI-R6780V, Pentium III 866MHz, 256MB RAM, 40GB 3.5" EIDE hard disk

Versions with standard backplane

on request

cPB-6105R

5 slot 32-bit cPCI backplane, rear I/O, H.110

cPB-6405R

5 slot 64-bit cPCI backplane, rear I/O, H.110

Technical Documentation

cPCIS-6400X-DS

cPCIS-6400X data sheet

cPCIS-6400X-UM

cPCIS-6400X user manual

cBP-6xxx-DS

cBP-6xxx data sheet
