cPCIS-6418U 4U cPCI Chassis with eight 6U Slots, H.110 TDM Bus and 2+1 redundant PICMG 2.11 Power Supplies

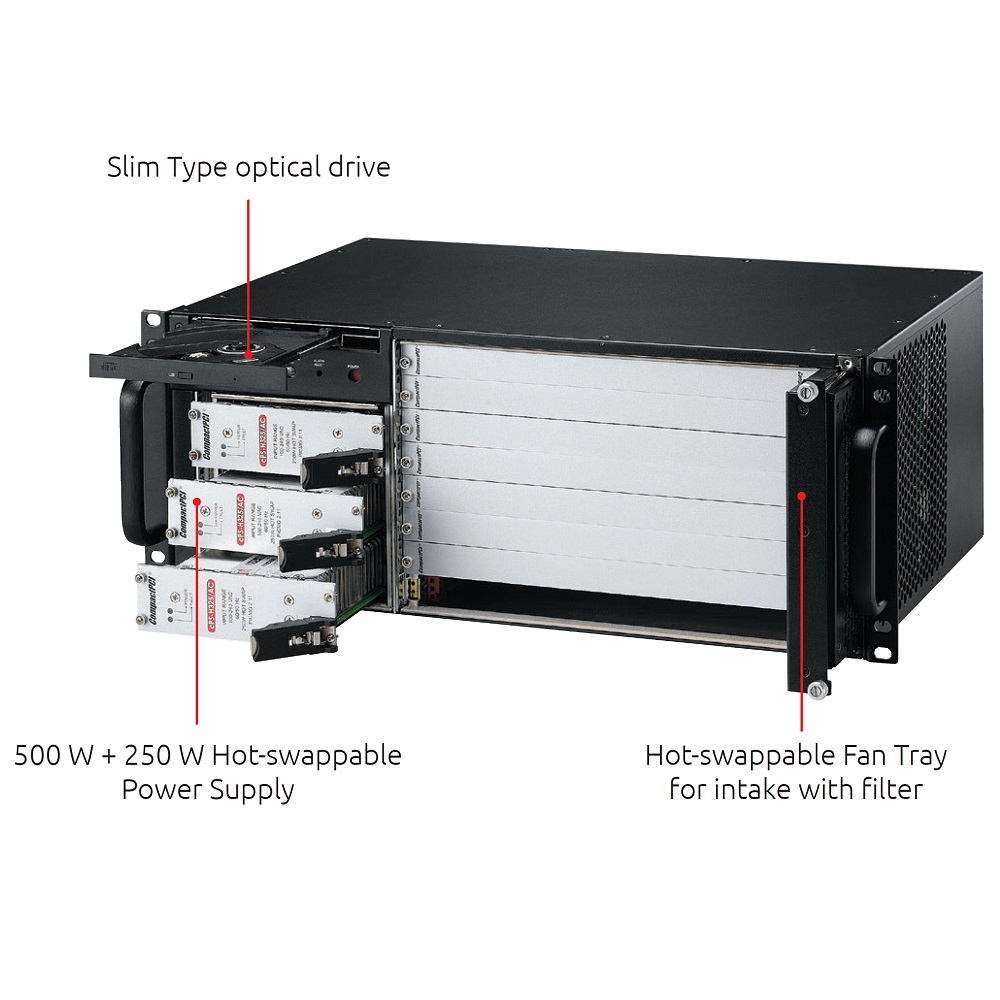

4U cPCI chassis with eight 6U slots, H.110 TDM bus and 2+1 redundant PICMG 2.11 power supplies. The compact 19" chassis cPCIS-6418U from ADLINK provides front and rear I/O according IEEE 1011.11. The system slot may equipped with 4 or 8HP CPU boards. The robust and reliable chassis is suitable for applications in industry and telecommunication.

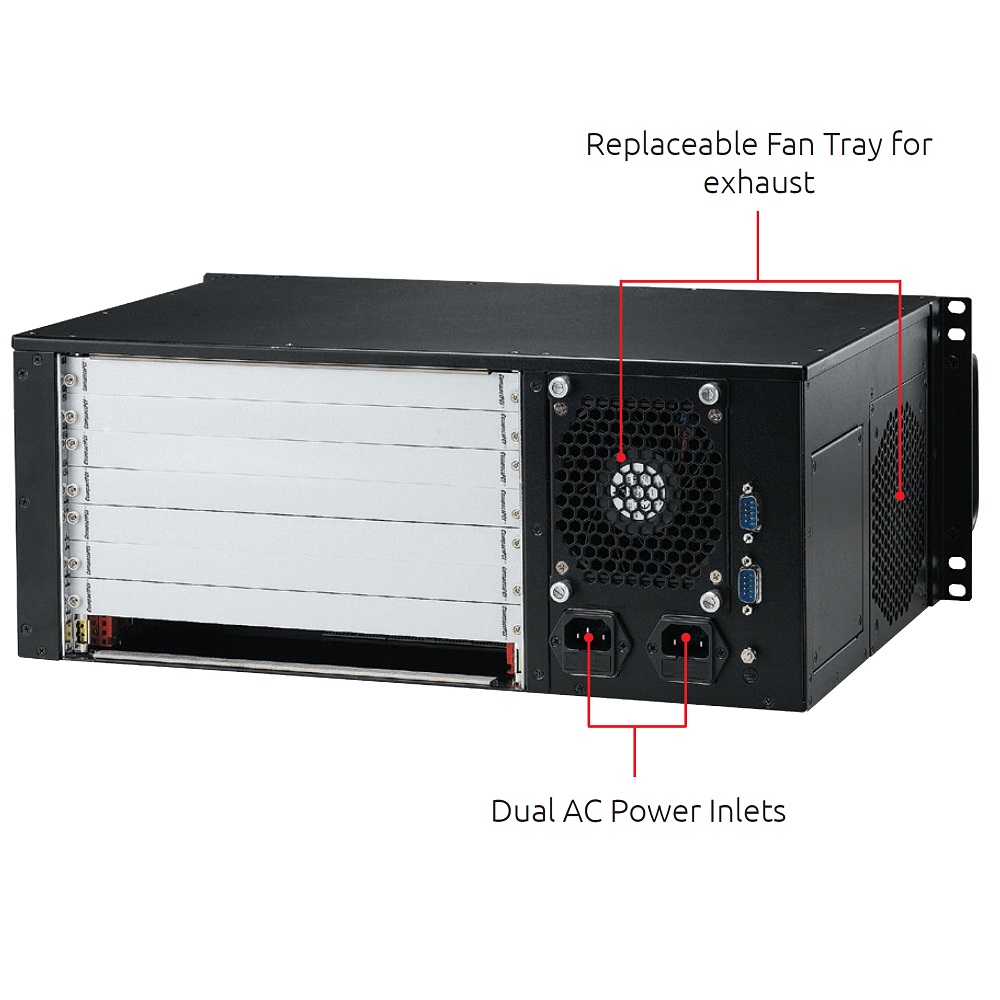

The chassis offers two RS232 management ports and a slim-line CD-ROM drive. The 2+1 PICMG 2.11 hot swappable, redundant power supply delivers 500W+250W from 100..240VAC input. Optional are 24VDC and -48VDC power supplies available. The chassis cooling is done by 5 hot swappable fans. An alarm panel monitors voltages, chassis temperature, and the fan status.

The chassis is available in combination with ADLINK's CPU boards like e.g. cPCI-6540, others on request.

ORDER NOW

Technical Description

proimg1
  • 4U 19″ rack mounting chassis for 6U CompactPCI boards, PICMG 2.0 Rev. 3.0, PICMG 2.1 hot swappable, PICMG 2.5 Rev. 1.0
  • 8 CompactPCI slots
  • Front/rear I/O according IEEE 10.11.11
  • Slim-line CD-ROM
  • Backplane 64 bit, H.110
  • Guarded power and reset switch
  • 2+1 redundant power supply via 250W 100..240VAC PICMG 2.11 power supplies (opt. 18..36VDC or 36..72VDC)
  • Cooling with 5 hot swappable filtered DC fans
  • Alarm panel for supervision of voltages, chassis temperature, and fan status
  • Two RS232 management ports
  • Dimensions 482.6 x 177 x 346.35 mm (WxHxD)
  • Operating temperature 0 .. 50°C
  • IEEE 1101.10 und 1101.11 compliant
  • 2 years warranty

Order Information

cPCIS-64018/AC

4U 19" cPCI chassis, 8 slots 64 bit backplane, H.110, CD-ROM, AC input, 3 power supplies cPS-H325AC

Versions w.o. H.110

on request

cPS-H325AC

250W PICMG 2.11 100..240VAC power supply

Technical Documentation

cPCIS-6418U-DS

cPCIS-6418U data sheet

cPCIS-6418U-UM

cPCIS-6418U user manual

cPS-H325AC-DS

cPS-H325AC data sheet
