FP 210/024 24 or 22 Port Unmanaged Gigabit Ethernet Layer 2 Switch

6U VMEbus Gigabit Ethernet Layer 2 switch with 24 or 22 ports. 12 Gigabit Ethernet ports are available via P2. The front panel offers additional 12 RJ45 Gigabit Ethernet ports or 8 RJ45 Gigabit Ethernet ports and two SFP LC optical connectors. In addition, an RS-232 port is available to control switch management on the front panel. The configuration is maintained in flash EPROM.

CONCURRENT Technologies' FP 210/024 series offers auto-negotiation on all ports, an 8000 MAC address cache with automatic learning and aging, and full-duplex operation at 10/100/1000 Mbps and half-duplex operation at 10/100 Mbps.

Quality of Service (QoS) supports prioritized packet streams for management of voice, video, and data, as well as four hardware priority queues per port. The queues may have a fixed or a weighted fair priority. The QoS traffic classification is determined by Port ID, IEEE 802.1p multimedia traffic tags, and IPv6 traffic class.

The FP 210/024 series comes in five different environment classes from standard (0°C to 55°C), extended temperature (-25°C to +70°C), (-40°C to +85°C), ruggedized air-cooled (-40°C to +70°C) up to ruggedized conduction-cooled (-40°C to +85°C).

ORDER NOW

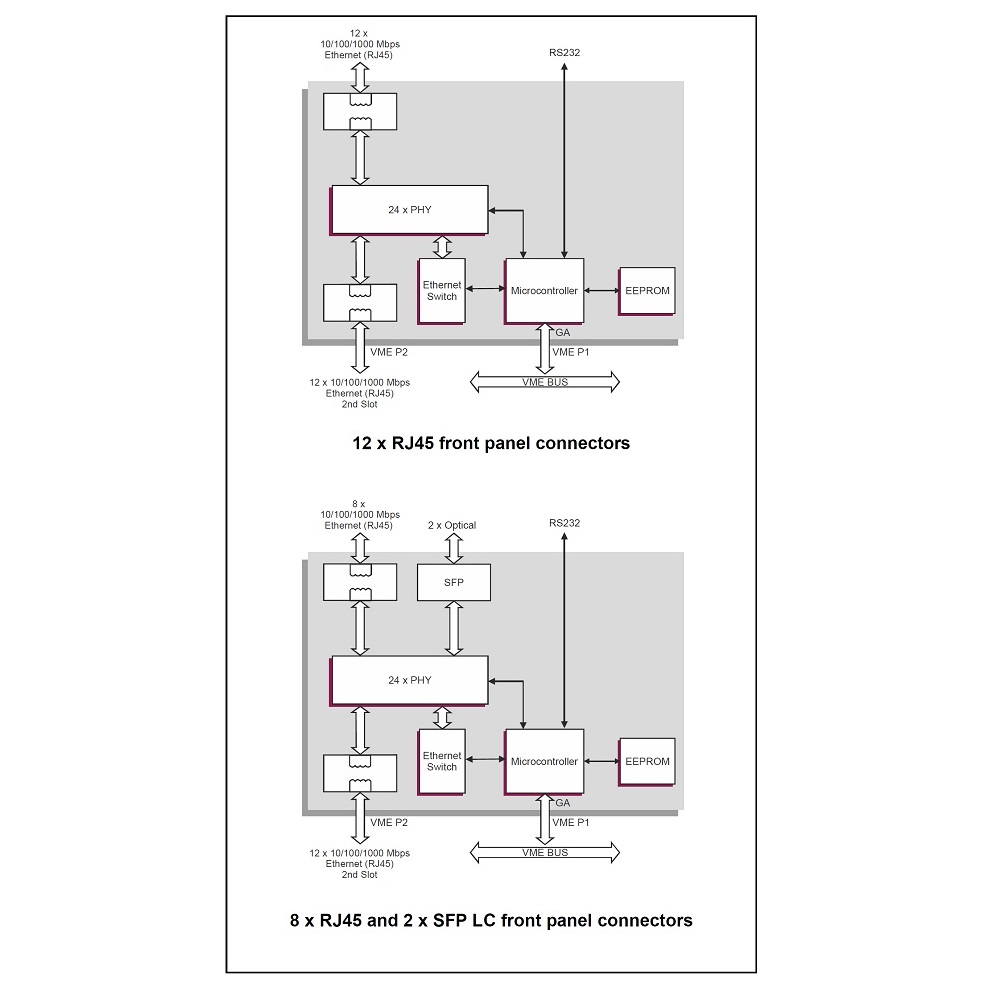

Technical Description

proimg1
  • 6U VMEbus switch, IEEE 802.1p compliant
  • 24/22 port layer 2 Gigabit Ethernet switch
  • 12 RJ45 front panel ports, opt. with magnetics or
    8 RJ45 front panel ports and 2 SFP LC optical connectors on the front panel
  • 12 Gigabit Ethernet ports via P2
  • 8000 MAC address cache with automatic learning and aging
  • Auto-negotiation
  • Full and half duplex mode
  • One RS-232 front panel port for controlling switch management
  • Configuration maintained in flash EPROM
  • Quality of Service (QoS):
    • QoS supports prioritized packet streams for management of voice, video and data
    • 4 hardware priority queues per port
    • Fixed priority or weighted fair queuQoS traffic classification, determined by:
      port ID
      IEEE 802.1p multimedia traffic tags
      IPv6 Traffic Classing
  • In 5 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), (-40°C .. +85°C), ruggedized air-cooled (-40°C .. +70°C), and ruggedized conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

FB 210/024-00

24 Port GbE switch with 12 FP RJ45 ports and 12 ports via P2 with magnetics

FB 210/024-01

24 Port GbE switch with 12 FP RJ45 ports and 12 ports via P2 without magnetics

FB 210/024-10

22 Port GbE switch with 8 FP RJ45 ports, 2 SFP ports and 12 ports via P2 with magnetics

FB 210/024-11

22 Port GbE switch with 8 FP RJ45 ports, 2 SFP ports and 12 ports via P2 without magnetics

Extension E

-25°C .. +70°C

Extension K

-40°C .. +85°C

Extension RA

-40°C .. +70°C, ruggedized air-cooled

Extension RC

-40°C .. +85°C, ruggedized conduction-cooled

Technical Documentation

FB 210/024-DS

FB 210/024 Data Sheet
