GAP-145x Rugged Workstation W9 Series

1U Rugged Workstation with Core i Gen 14/13 CPU, 192GB RAM and Front or Rear Power Supply

1U Rugged Workstation with Intel Core i9/i7/i5/i3 Gen. 14/13 and 192GB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-145x-W9 are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U workstations with a depth of 450mm feature 14th/13th Generation Intel® Core™ i9/i7/i5/i3 processors supporting up to 192GB DDR5 memory. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP workstations are designed to meet MIL-STD-810 for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. The workstations have one PCIe x16 slot and three M.2 PCIe 4.0 x4 2280 NVMe slots with M-Key. DisplayPort, HDMI, VGA, DVI-D, 2 GbE, IPMI LAN, 3x USB 3.2, USB-C and audio are available on the front of the GAP-145F and GAP-145P versions and on the rear of the GAP-145R version.

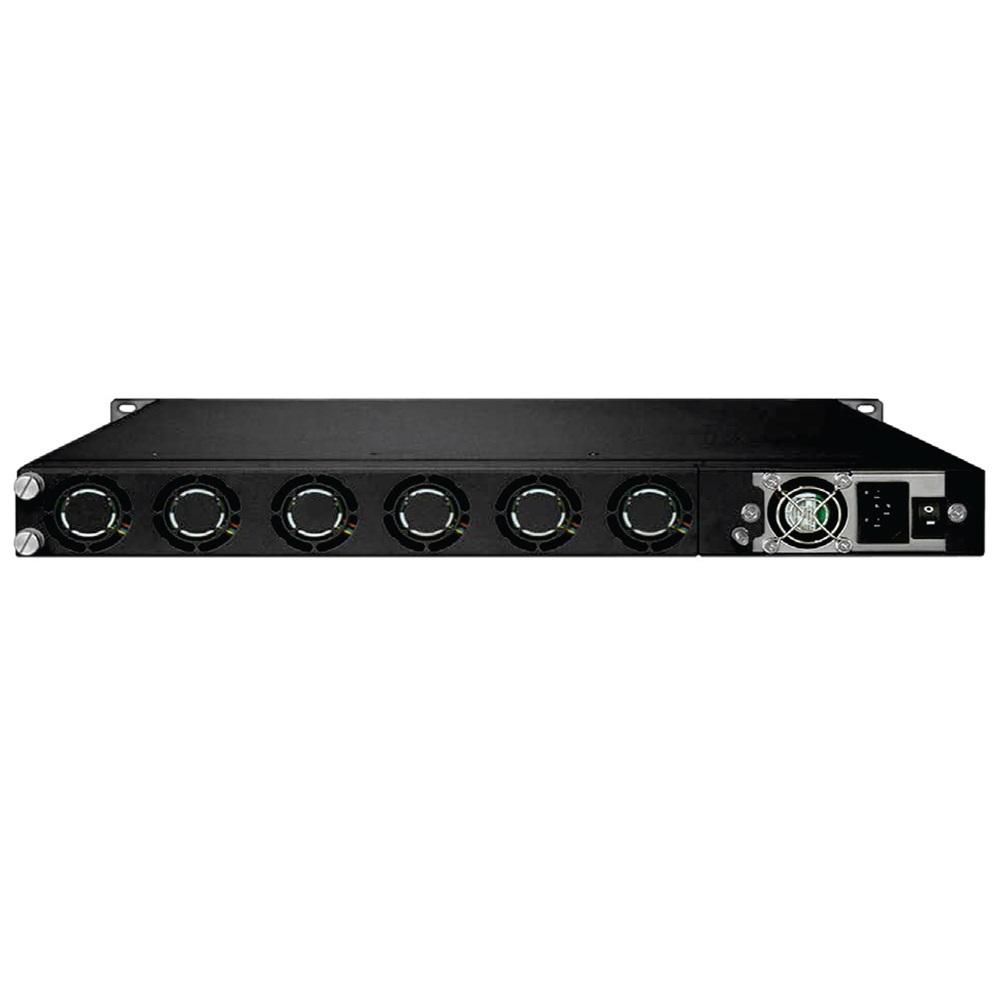

The GAP-145F-W8 has front I/O and a rear AC or DC power supply. The workstation provides up to one 2.5" SAS SSD or up to two hot swap U.2 NVMe SSDs or up to three hot swap 2.5” SATA SSDs.

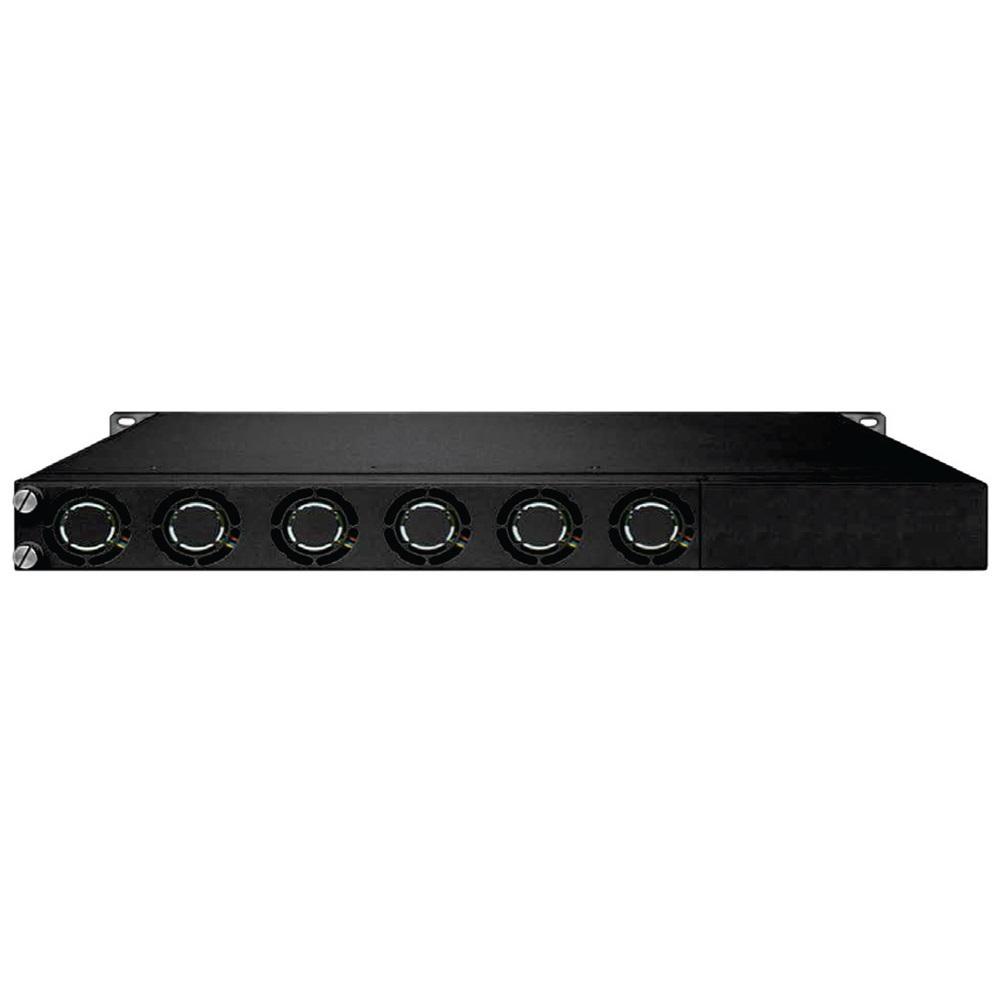

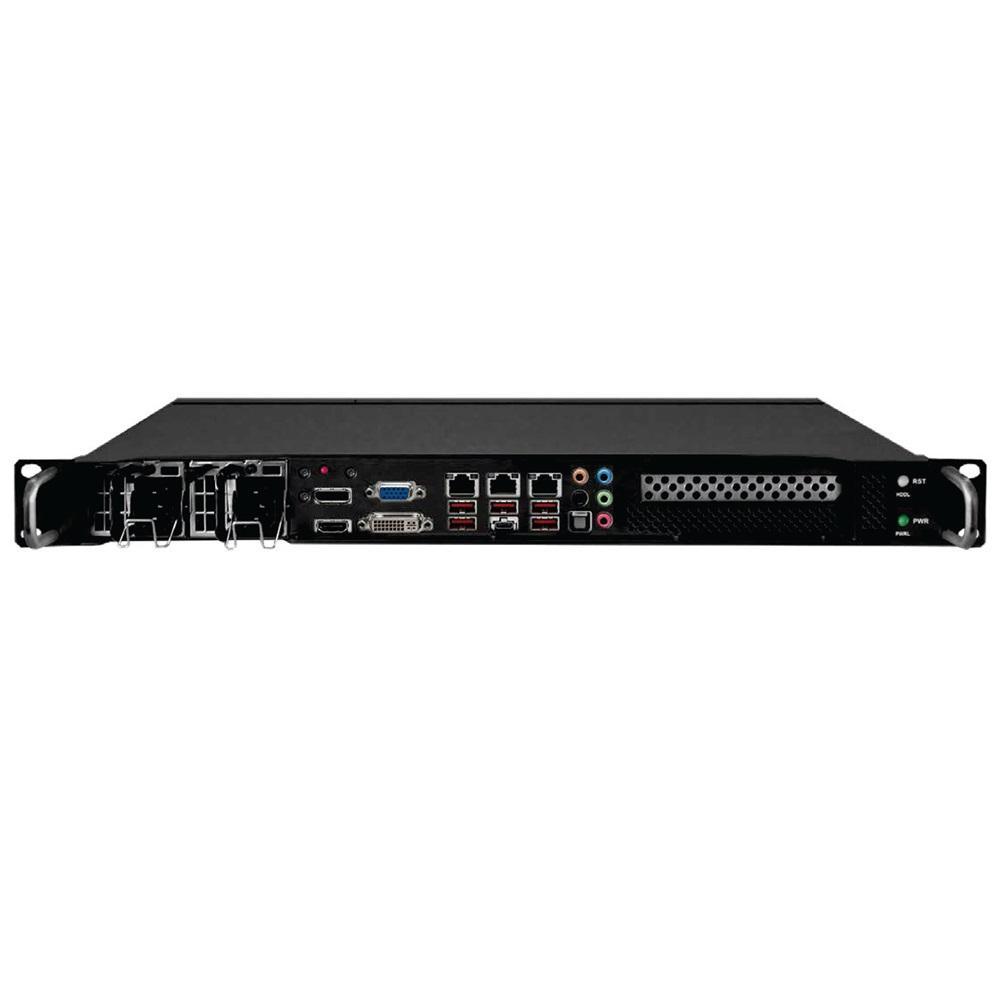

The GAP-145P-W8 has front I/O and a front redundant (or optional single) AC power supply. The workstation provides up to one 2.5" SATA SSD.

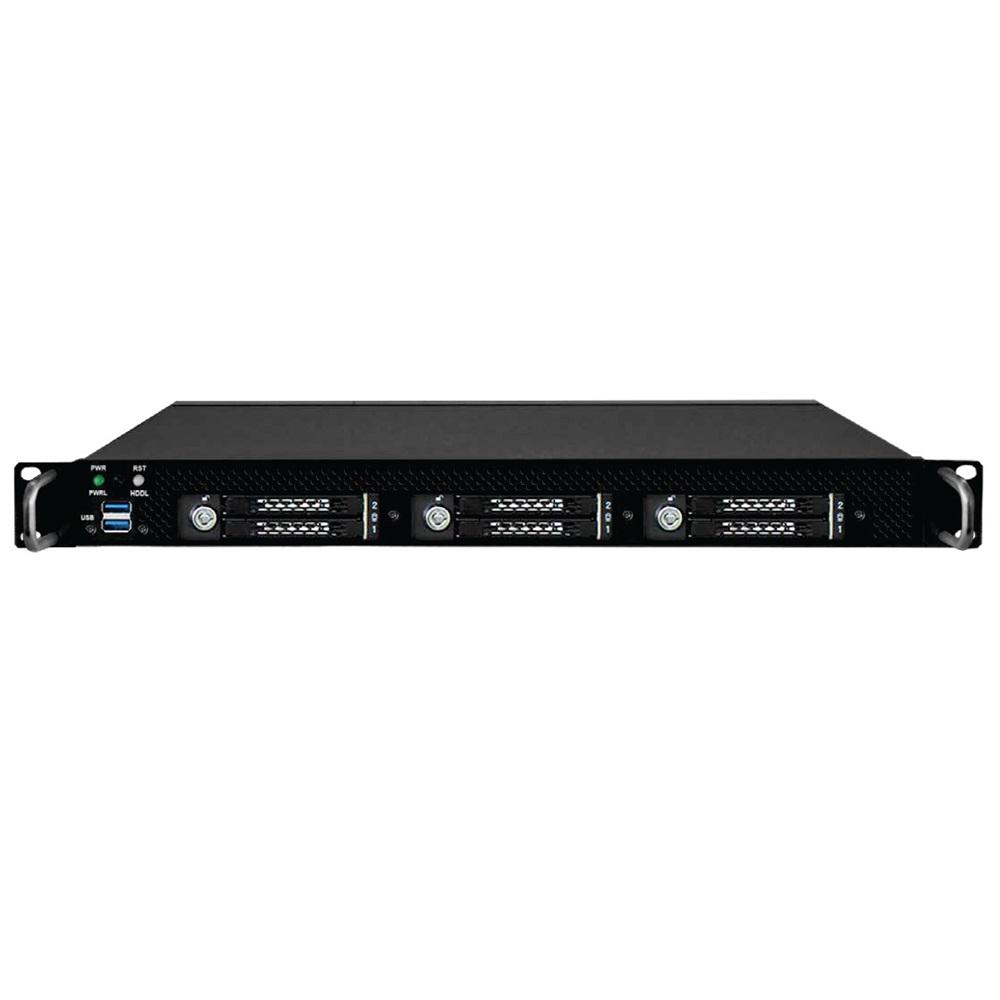

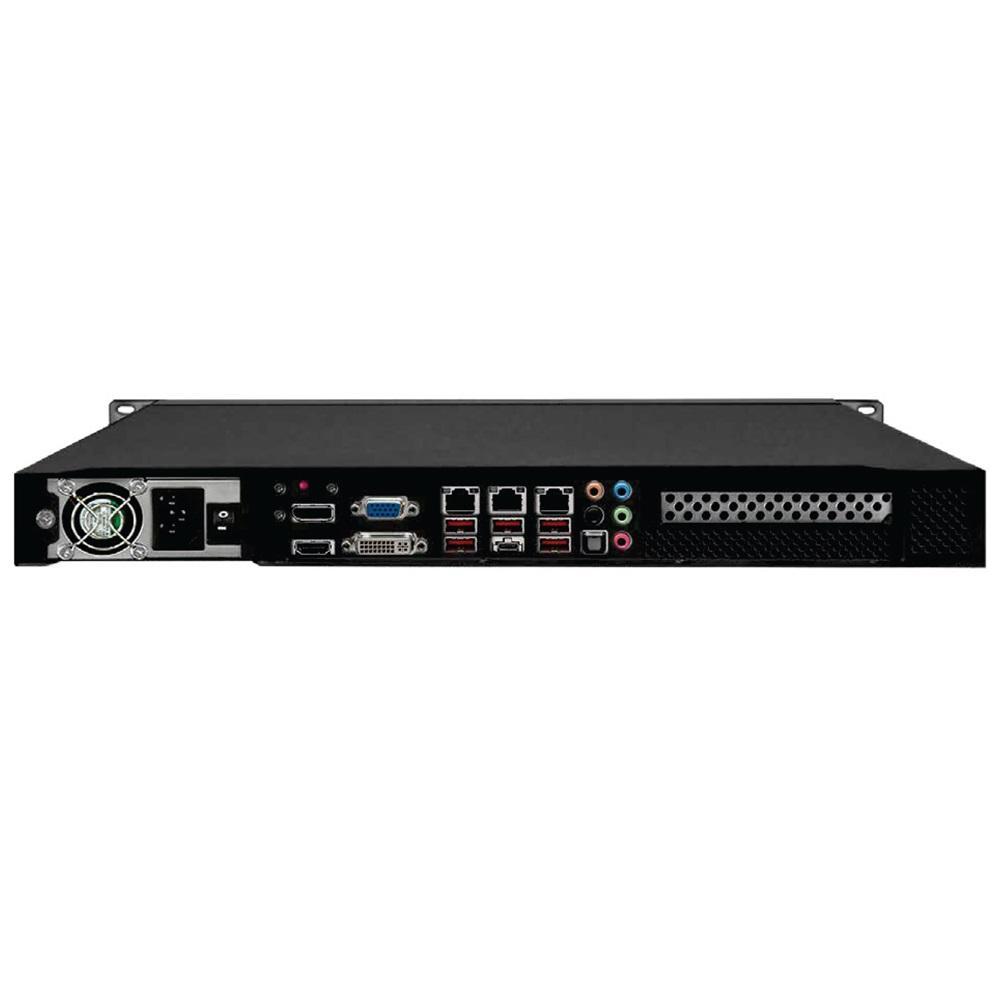

The GAP-145R-W8 has rear I/O and a rear AC or DC power supply. The workstation provides up to six hot swap U.2 NVMe SSDs or nine hot swap 2.5” SATA/SAS SSDs.
