GAP-151x Rugged Server G6 Series

1U Rugged Server with 1 or 2 Xeon CPUs, 3TB RAM and Front or Rear Power Supply

1U Rugged Server with Xeon® Scalable and 3TB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-151x-G6 are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U servers with a depth of 510mm feature scalable single or dual-socket Intel® Xeon® processors with up to 3TB of DDR4 2933 RAM. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP servers are designed to meet MIL-STD-810F for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. All version have 2x PCIe bracket full height slots.

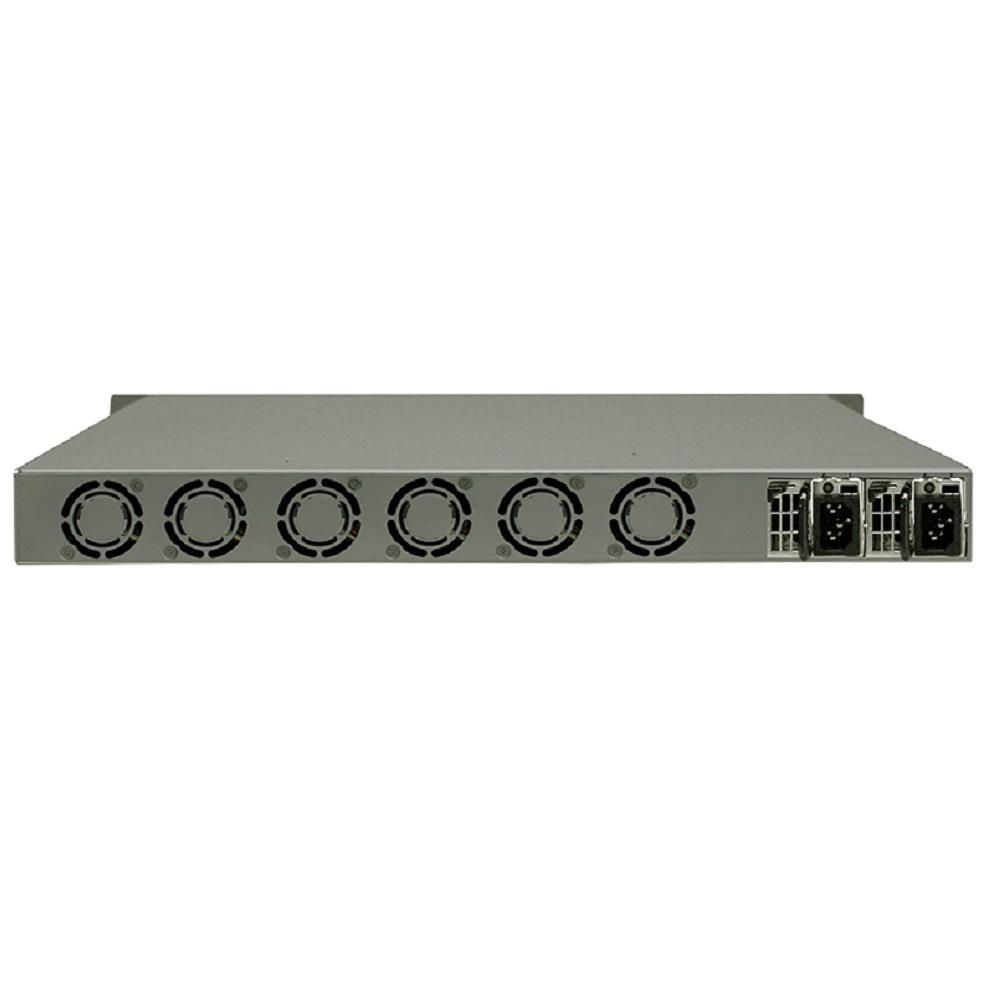

The GAP-151F-G6 has front I/O and a rear redundant AC power supply. There are up to three hot swap 2.5" SSDs and one internal 2.5” SSD available. The server provides VGA, four USB 3.0, two Gigabit Ethernet and IPMI in the front. Optional a DVD drive is available.

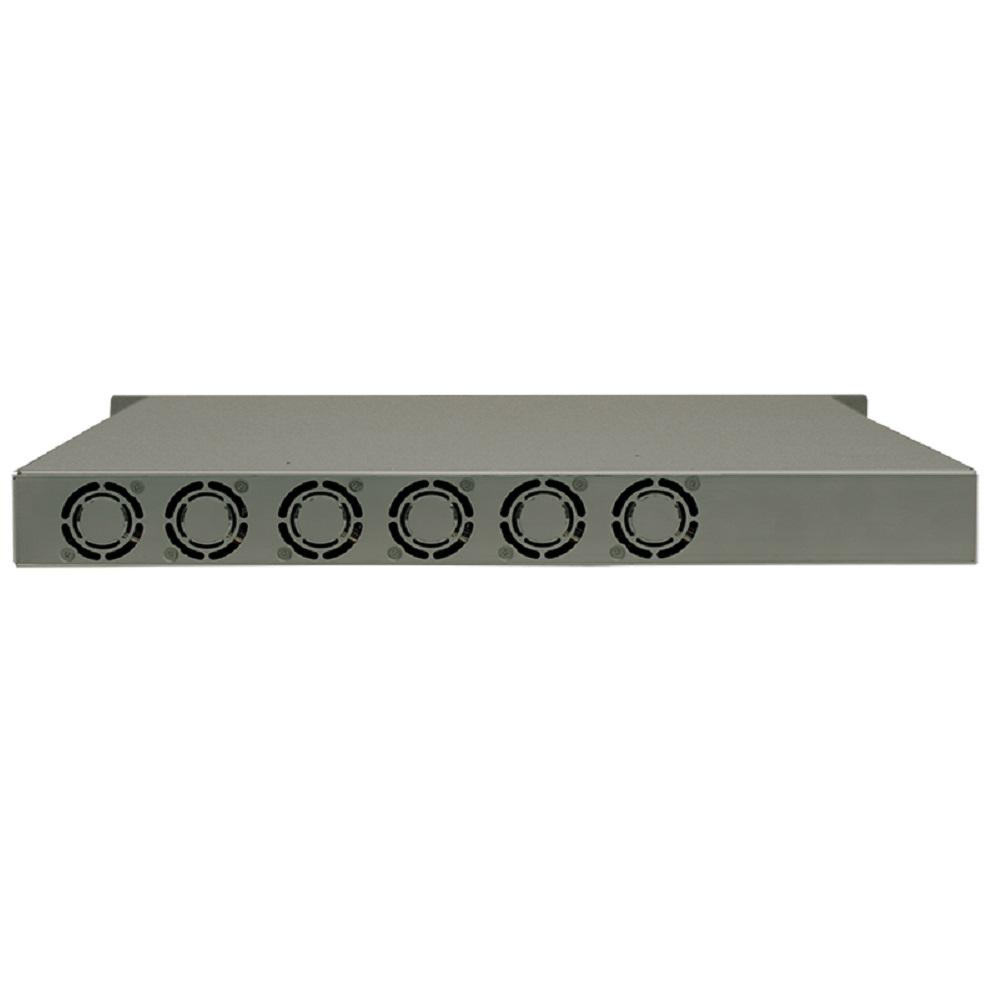

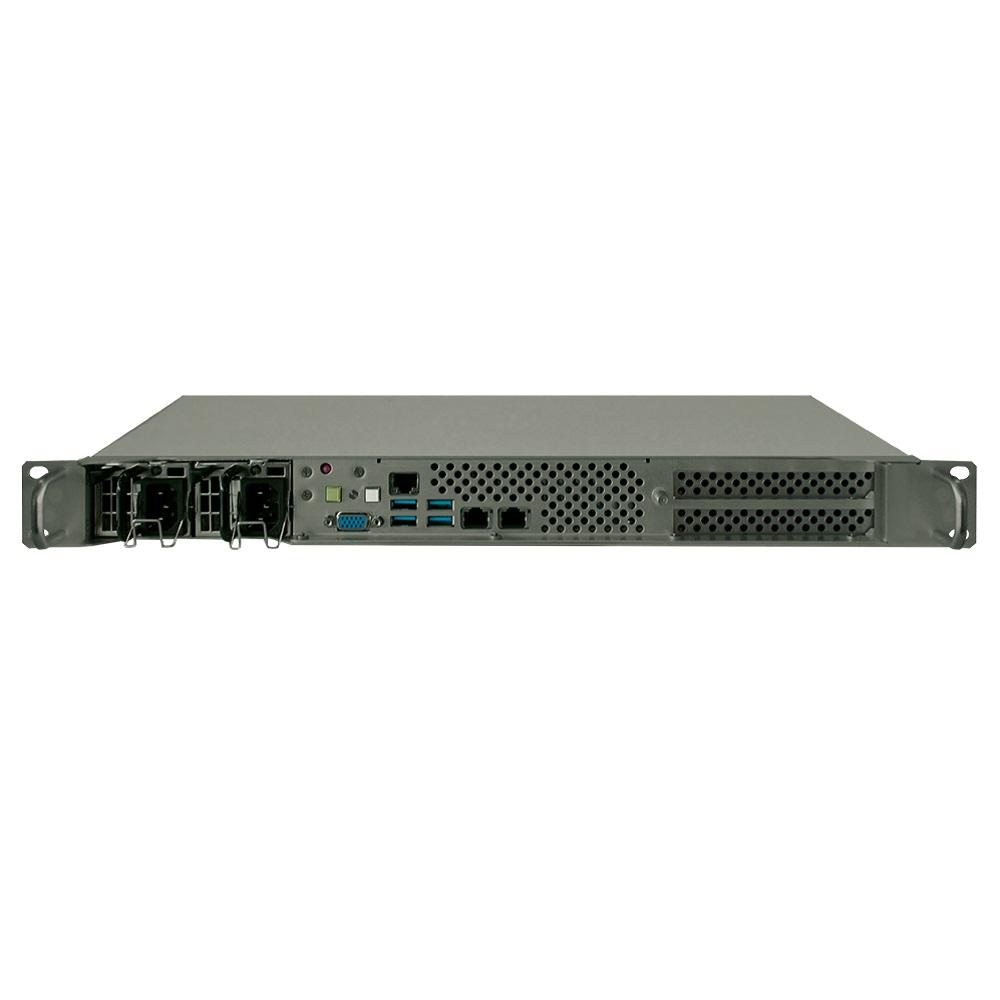

The GAP-151P-G6 has front I/O and a front redundant AC power supply. The server provides one internal 2.5" SSD. There are VGA, four USB 3.0, two Gigabit Ethernet and IPMI available in the front.

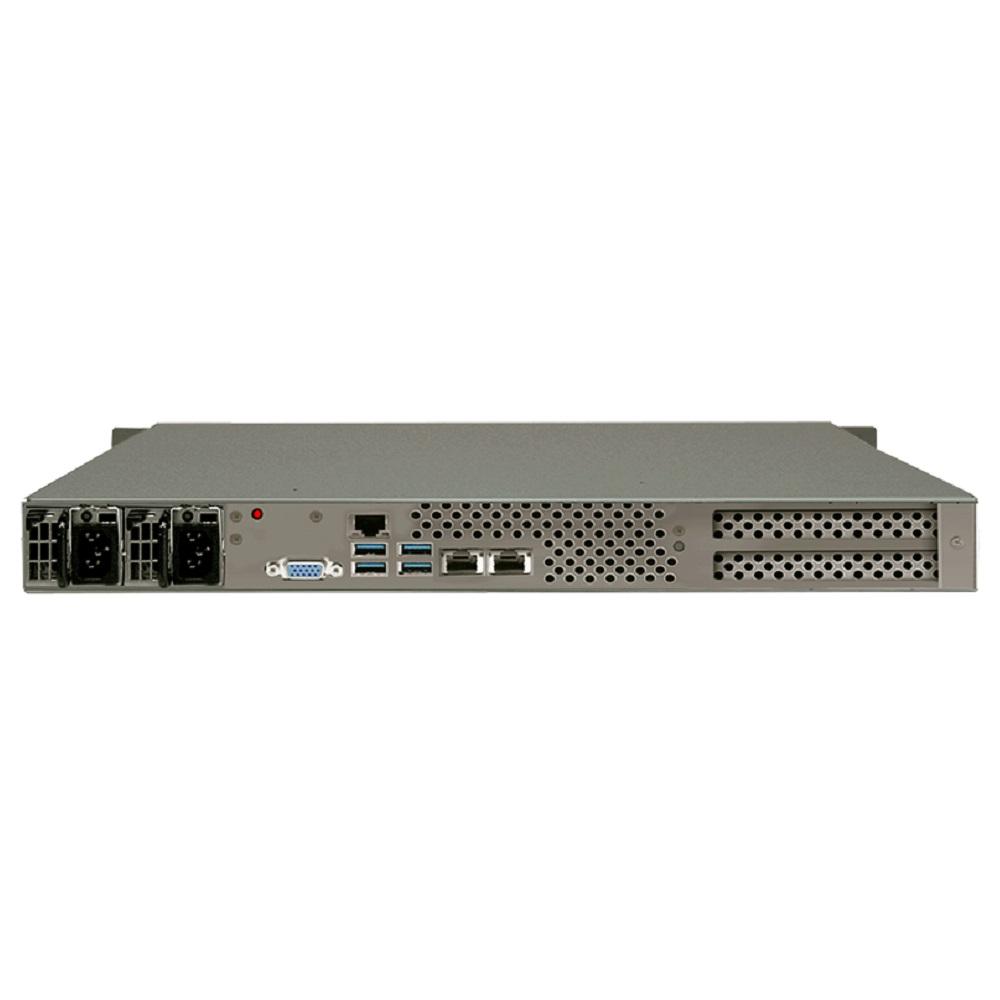

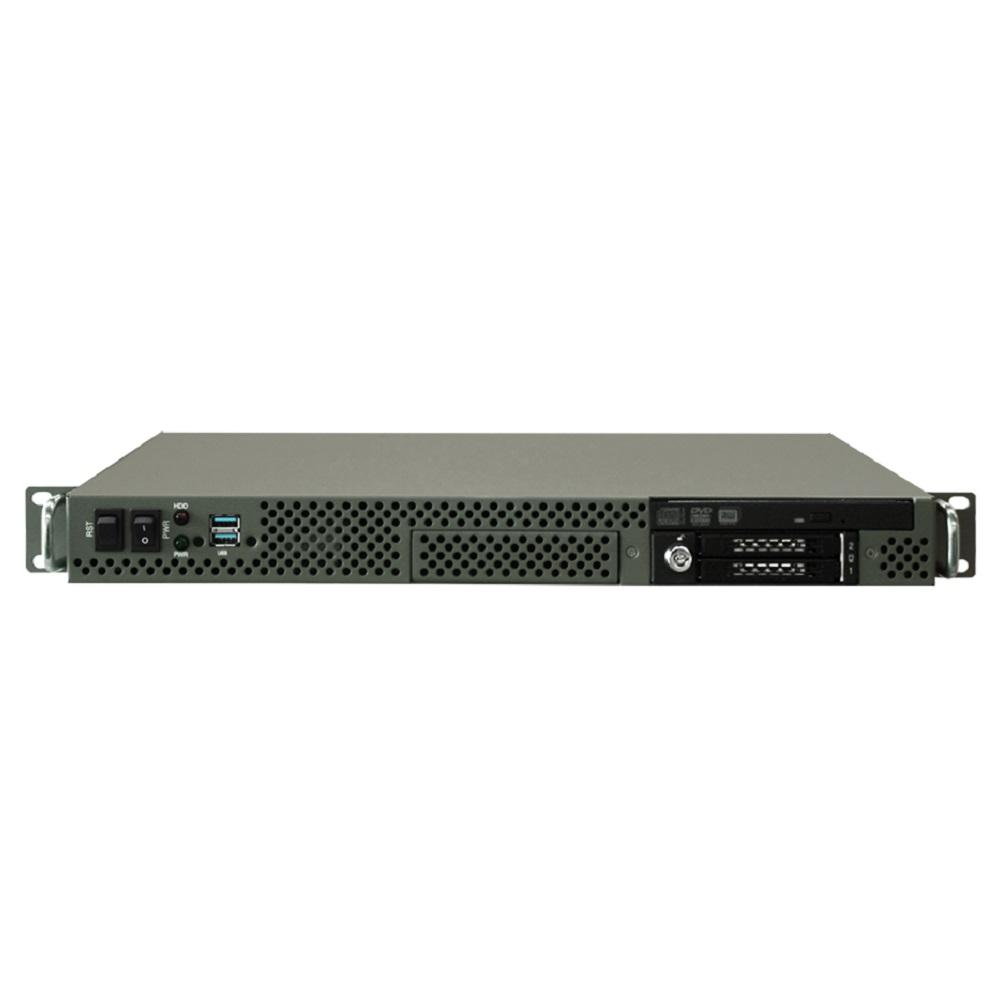

The GAP-151R-G6 provides rear I/O and a rear redundant AC power supply. There are two front panel USB 2.0 ports, up to 6 hot swap 2.5" SSDs and one internal 2.5” SSD available. The server has VGA, four USB 3.0, two Gigabit Ethernet and IPMI in the rear. Optional a DVD drive is available.
