1U Rugged Workstation with Xeon or Core i Gen 9/8 CPU, up to 128GB RAM and Front or Rear Power Supply

1U Rugged Workstation with Xeon® E3-2200/2100 or Core i3 Gen. 9/8 and 128GB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-1xxx-G7 are designed for 19" rack mounting and are suitable for operation in critical environments. The 1U workstations feature Intel® Xeon® E-2200/2100 processors or 9th/8th Generation Intel® Core™ i3 processors supporting up to 8 Cores (16 thread with Hyper-Threading), 16MB smart cache and up to 128GB DDR4 memory with or without ECC memory support. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP workstations are designed to meet MIL-STD-810 for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. All version have two PCIe bracket full height slots.

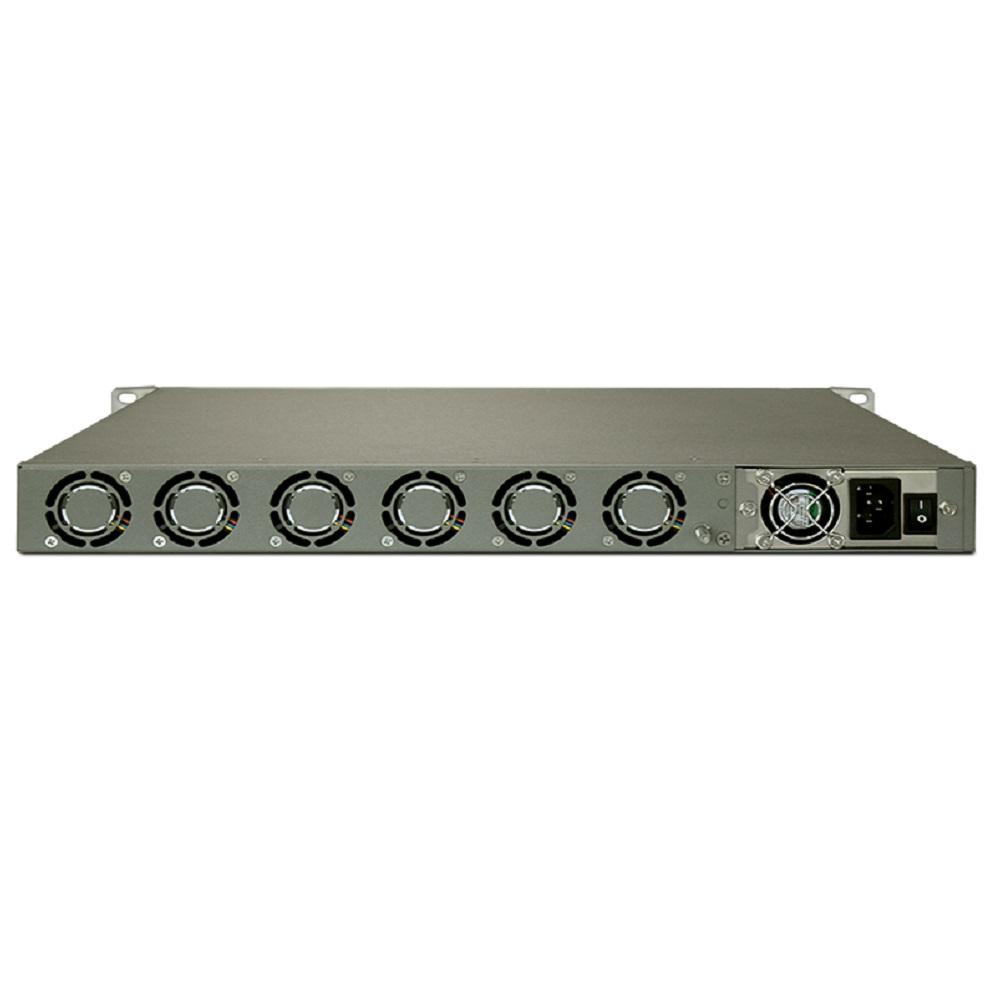

The GAP-145F-G7 has a depth of 450mm, front I/O and a rear (opt. redundant) AC power supply. VGA, two Gigabit Ethernet LAN, two USB 3.1, two USB 2.0, COM and IPMI are available in the front. The workstation provides up to three hot swap 2.5" SSDs and three internal 2.5” SSDs. RAID 0, 1, 5 and 10 are supported. Optional a DVD drive is available.

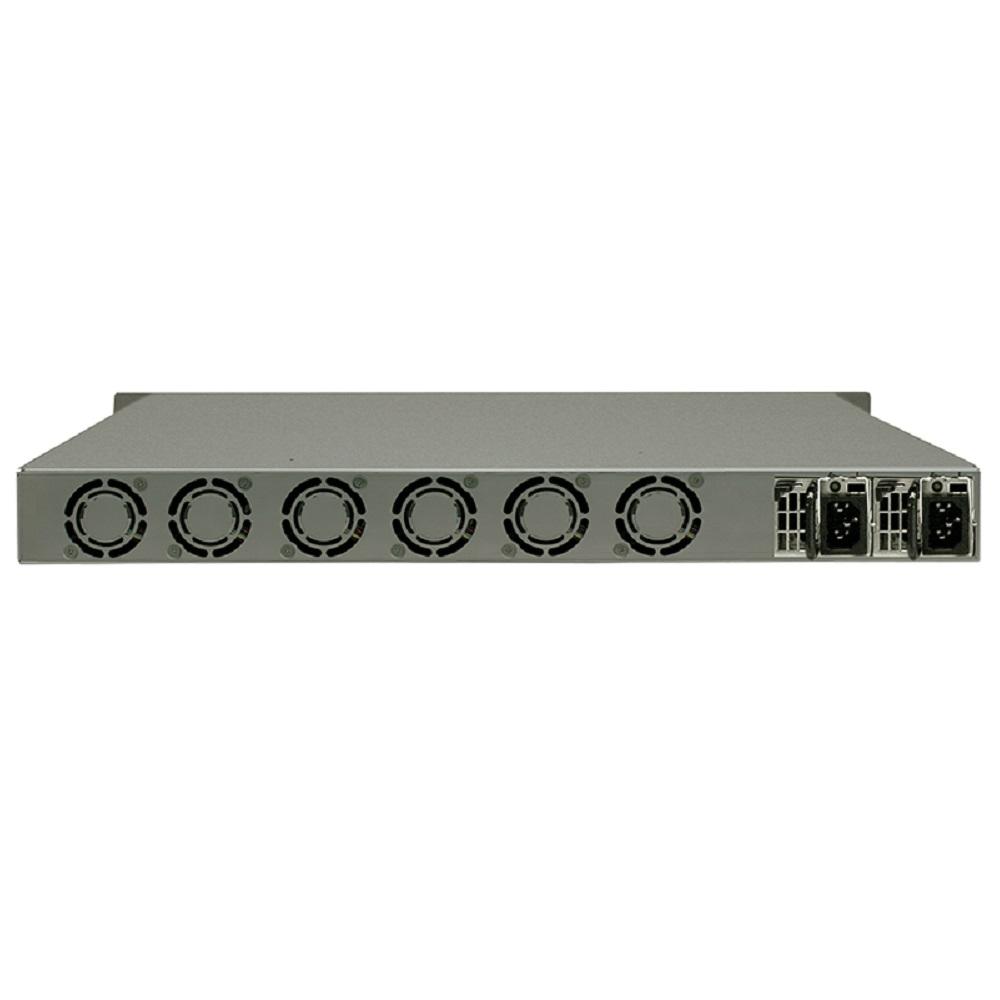

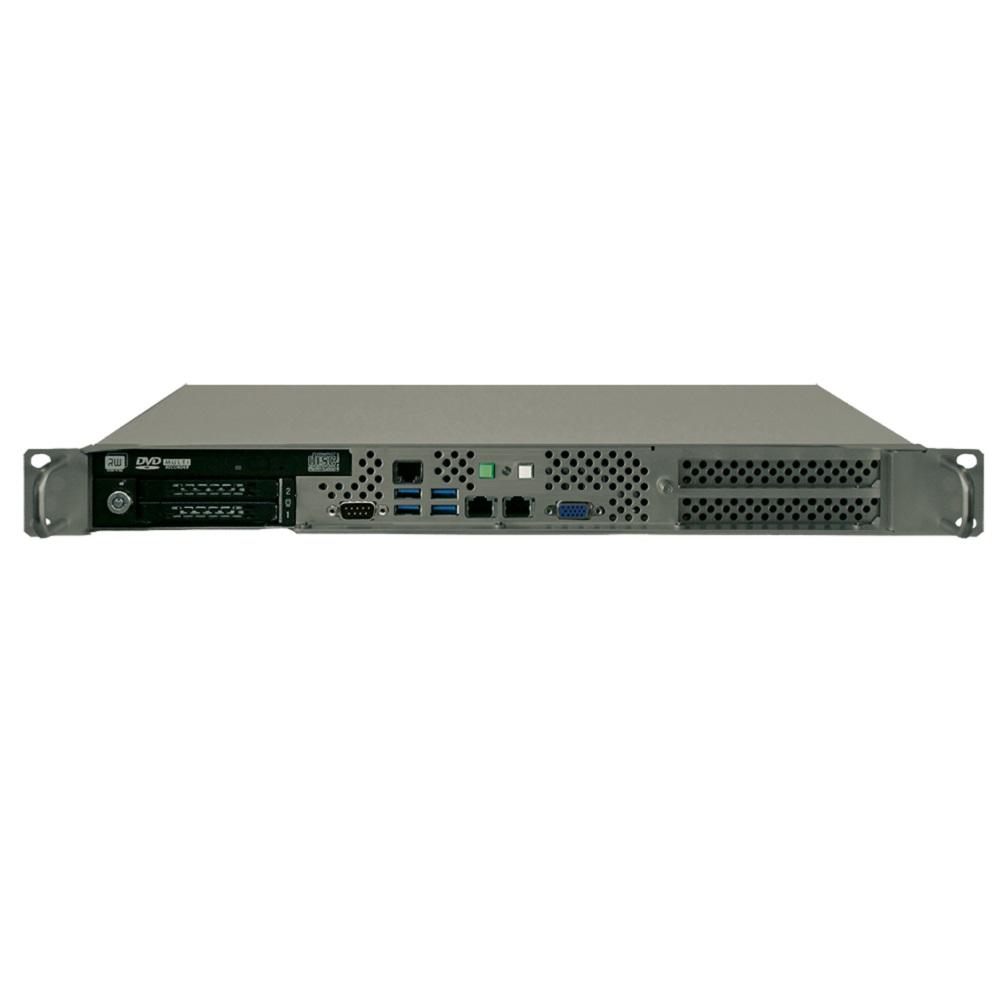

The GAP-151F-G7 has a depth of 510mm, front I/O and a rear redundant (opt. single) AC power supply. VGA, two Gigabit Ethernet LAN, two USB 3.1, two USB 2.0, COM and IPMI are available in the front. The workstation provides up to three hot swap 2.5" SSDs and one internal 2.5” SSD. RAID 0, 1, 5 and 10 are supported. Optional a DVD drive is available.

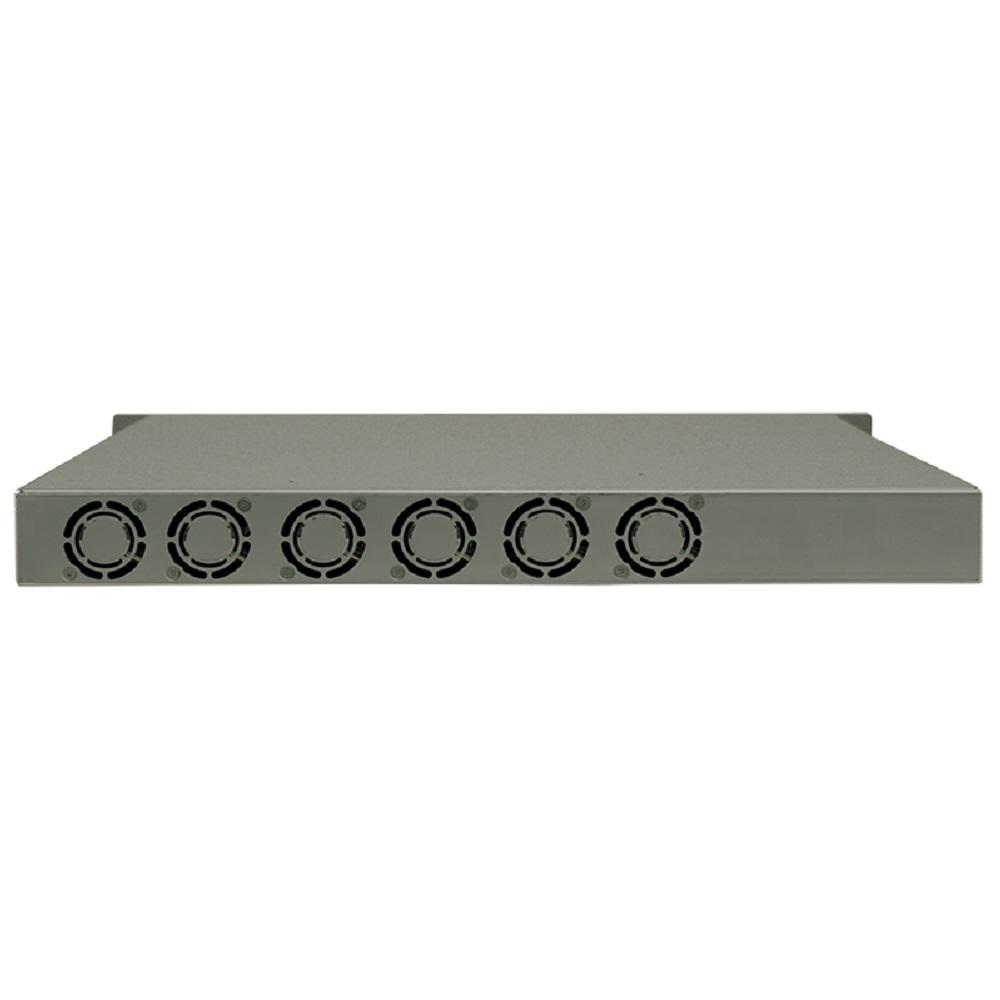

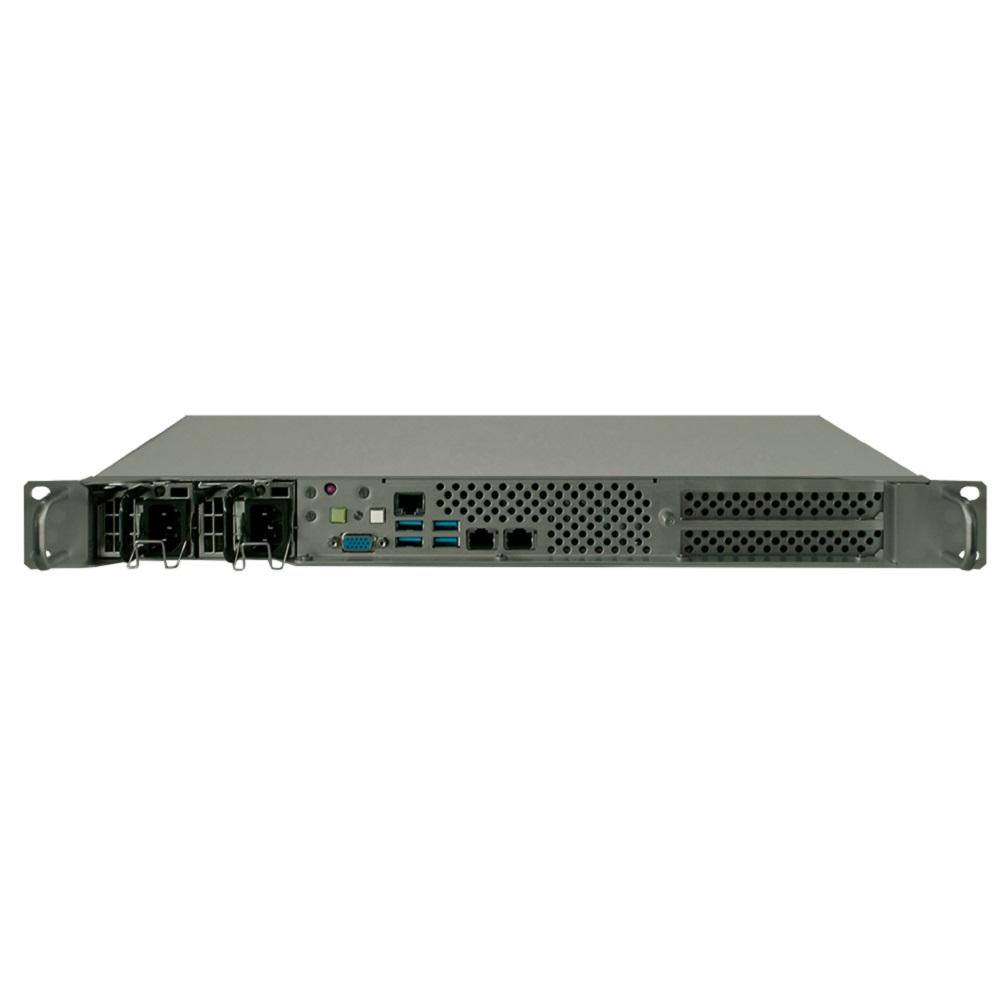

The GAP-151P-G7 has a depth of 510mm, front I/O and a front redundant (opt. single) AC power supply. VGA, two Gigabit Ethernet LAN, two USB 3.1, two USB 2.0, COM and IPMI are available in the front. The workstation provides one internal 2.5” SSD. RAID 0, 1, 5 and 10 are supported.

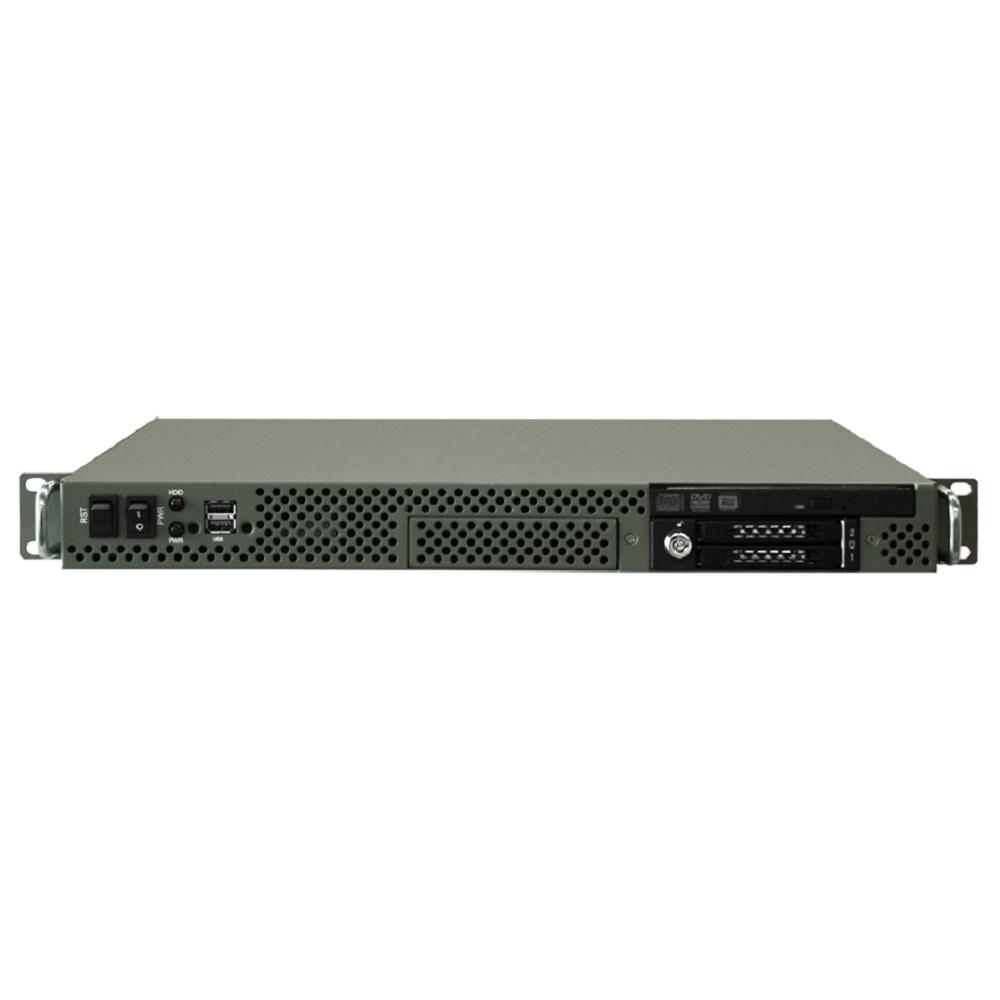

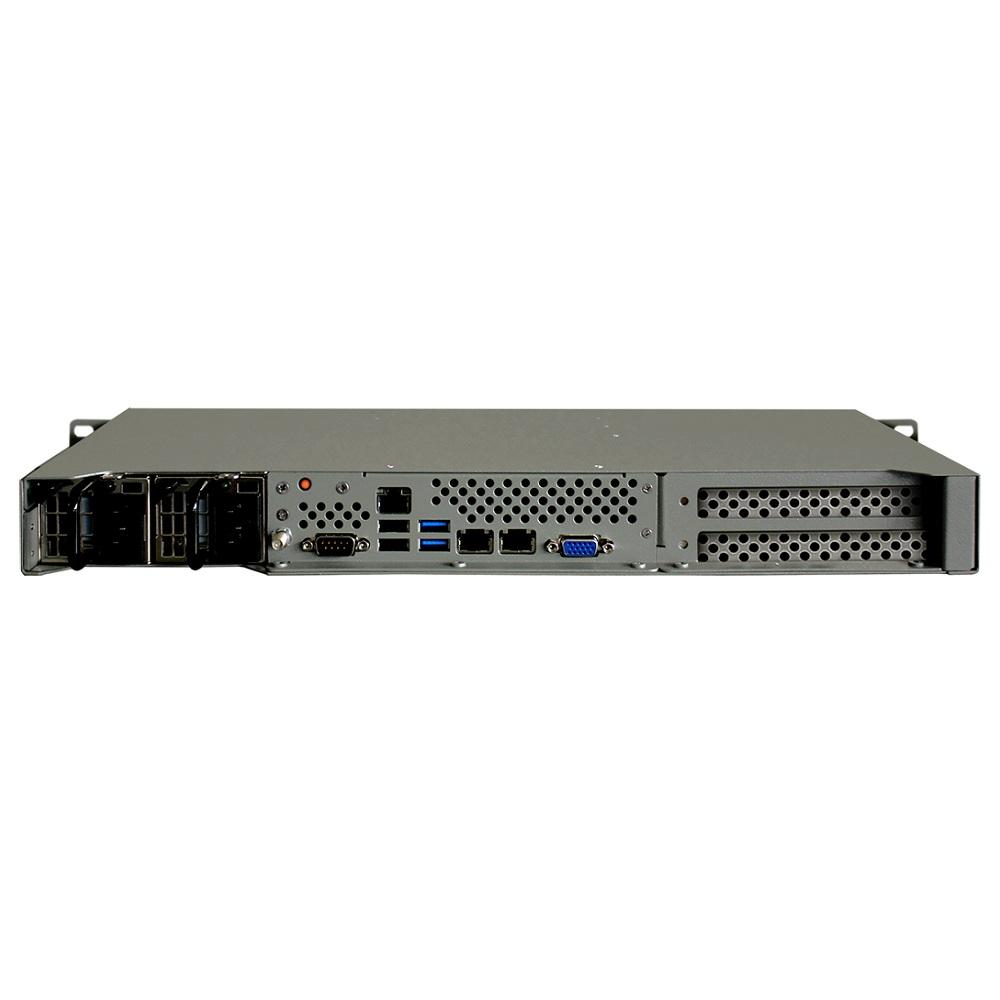

The GAP-151R-G7 has a depth of 510mm, rear I/O and a rear redundant (opt. single) AC power supply. VGA, two Gigabit Ethernet LAN, two USB 3.1, two USB 2.0, COM and IPMI are available in the rear. In addition the workstation provides two USB 2.0 ports in the front, up to 6 hot swap 2.5" SSDs and one internal 2.5” SSD. RAID 0, 1, 5 and 10 are supported. Optional a DVD drive is available.

ORDER NOW

Technical Description

proimg1
  • 1U rugged server, 450mm or 510mm depth
  • Intel® Xeon® E3-2200/2100 or Core i3 Gen. 9/8 processors
  • Up to 128GB DDR4-2666 MHz RAM
  • Intel C246 chipset
  • 2x PCIe bracket full height slots
  • GAP-145F: Up to 3x hot-swap 2.5″ SSDs and 3x 2.5” SSD, RAID 0, 1, 5 and 10
    GAP-151F: Up to 3x hot-swap 2.5″ SSDs and one 2.5” SSD, RAID 0, 1, 5 and 10
    GAP-151P: One 2.5″ SSD, RAID 0, 1, 5 and 10
    GAP-151R: Up to 6x hot-swap 2.5″ SSDs and one 2.5” SSD, RAID 0, 1, 5 and 10
  • 2x USB 2.0 in the front of the GAP-151R version
  • VGA, 2x GbE LAN, 2x USB 3.1, 2x USB 2.0, COM and IPMI in the front of the GAP-145F, GAP-151F and GAP-151P version, in the rear of the GAP-151R version
  • Opt. DVD drive at GAP-145F, GAP-151F and GAP-151R version
  • GAP-145F: Rear AC power supply, optional redundant
    GAP-151F und GAP-151R: Rear redundant AC power supply, optional single
    GAP-151P: Front redundant AC power supply, optional single
  • 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
    optional -20°C .. +60°C operating temperature range
  • 20G/11ms shock MIL-STD-810G method 516.7, optional EMC MIL-STD-461 and conformal coating
  • 2 years warranty

Order Information

GAP-145F_G7-100

1U Rugged WS, front I/O, rear power supply redundant, 3x SSD

GAP-145F_G7-100D

1U Rugged WS, front I/O, rear power supply, 3x hot-swap + 3x SSD, DVD

GAP-151F_G7-100

1U Rugged WS, front I/O, rear power supply redundant, 3x hot-swap + 1x SSD

GAP-151F_G7-100D

1U Rugged WS, front I/O, rear power supply redundant, 3x hot-swap + 1x SSD, DVD

GAP-151P_G7-100

1U Rugged WS, front I/O, front power supply redundant, 1x SSD

GAP-151R_G7-100

1U Rugged WS, rear I/O, rear power supply redundant, 6x hot-swap + 1x SSD

GAP-151R_G7-100D

1U Rugged WS, rear I/O, rear power supply redundant, 6x hot-swap + 1x SSD, DVD

Technical Documentation

GAP-145F_G7-DS

GAP-145F-G7 data sheet

GAP-151F_G7-DS

GAP-151F-G7 data sheet

GAP-151P_G7-DS

GAP-151P-G7 data sheet

GAP-151R_G7-DS

GAP-151R-G7 data sheet
