2U Rugged Workstation with Xeon or Core i Gen 10/11 CPU, 128GB RAM and Front or Rear Power Supply

2U Rugged Workstation Xeon® W-1300 Gen. 11 or Core i9/i7/i5/i3 Gen. 10 and 128GB RAM. The GAP series of rugged servers and workstations are designed for applications that require rugged and qualified MIL-GRADE equipment with up to 20G/11ms shock (MIL-STD-810G Method 516.7). The GAP-2x5x-W8 are designed for 19" rack mounting and are suitable for operation in critical environments. The 2U workstations feature 11th Generation Intel® Xeon® W-1300 processors or 10th Generation Intel® Core™ i9/i7/i5/i3 processors supporting up to 8 Cores (16 thread with Hyper-Threading), 16MB smart cache and up to 128GB DDR4 memory with or without ECC memory support. Integrated IPMI services support monitoring, control and management funtions sending alarm notifications in case of critical events. GAP workstations are designed to meet MIL-STD-810 for temperature and shock and MIL-STD-167-1A for vibrations. Optionally, they can conform to MIL-STD-461 for EMI/EMC. The I/O connectors and power supply input can be provided with MIL-GRADE connectors. The workstations have one PCIe 4.0 x16 slot or two PCIe x8 slots, as well as one M.2 PCIe 4.0 x4 2280/22110 NVMe slot with M-Key and two M.2 PCIe 3.0 x4 2280/22110 NVMe slots with M-Key.

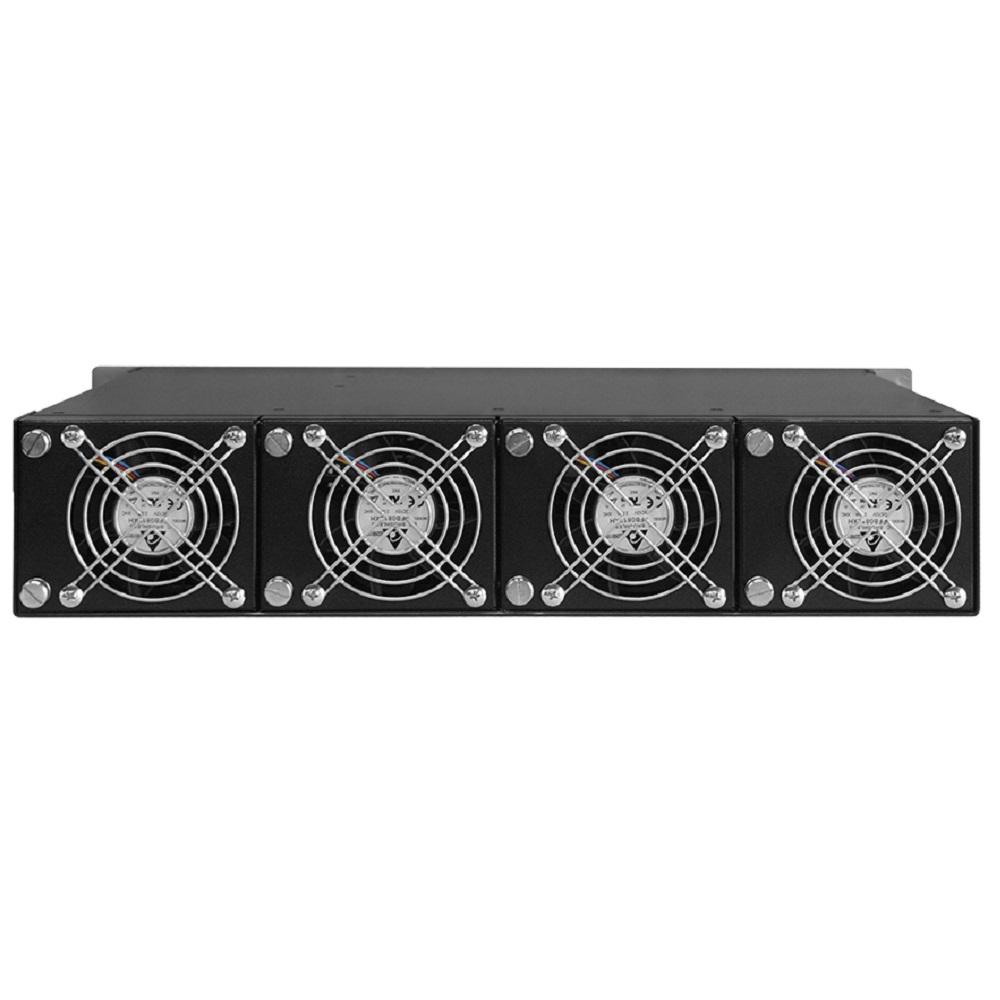

The GAP-235PL-W8 has a depth of 355 mm, front I/O and a front AC power supply. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the front. The workstation offers two PCIe 3.0 x1 slots and one 5V PCI 32bit slot, as well as up to two removable U.2 NVMe SSDs or three removable 2.5" SATA/SAS SSDs. An optional DVD drive is available.

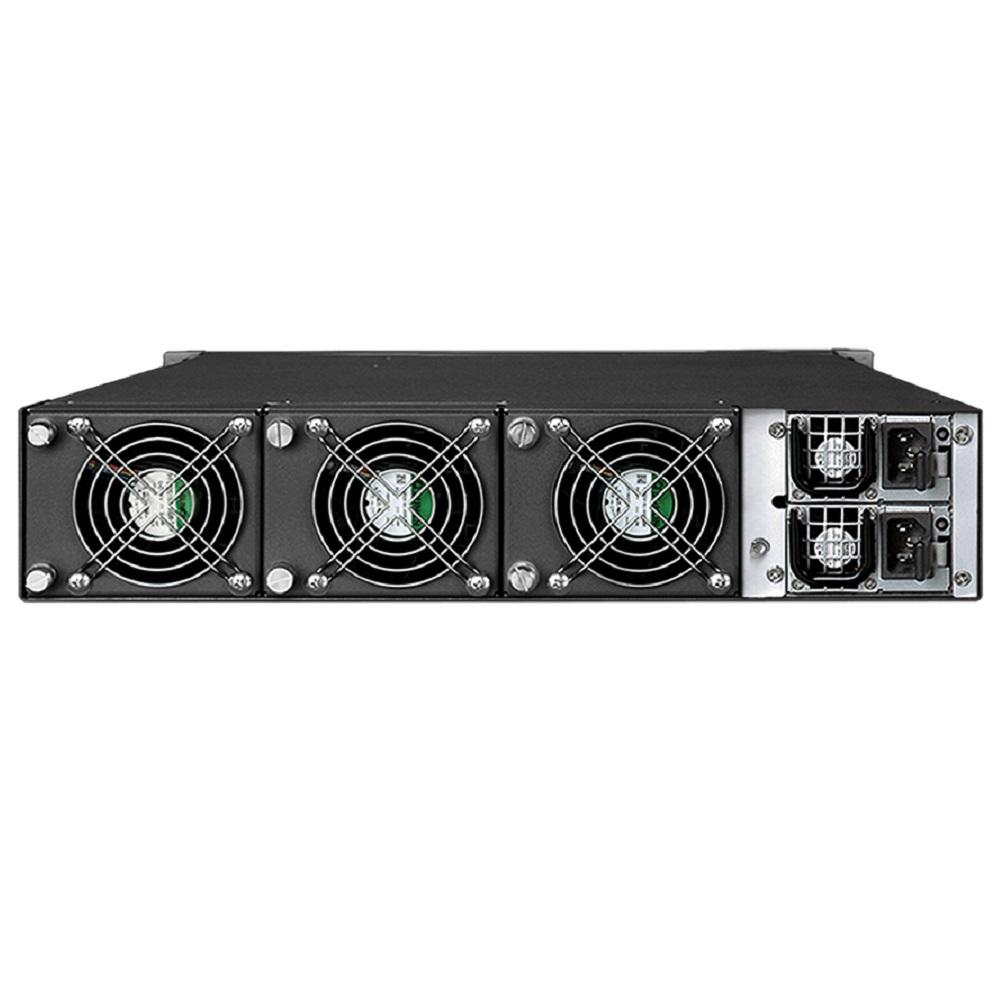

The GAP-245F-W8 has a depth of 450 mm, front I/O, and rear redundant (or optional single) AC power. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the front. The workstation offers up to 6x removable U.2 NVMe SSDs or 9x removable 2.5" SATA/SAS SSDs.

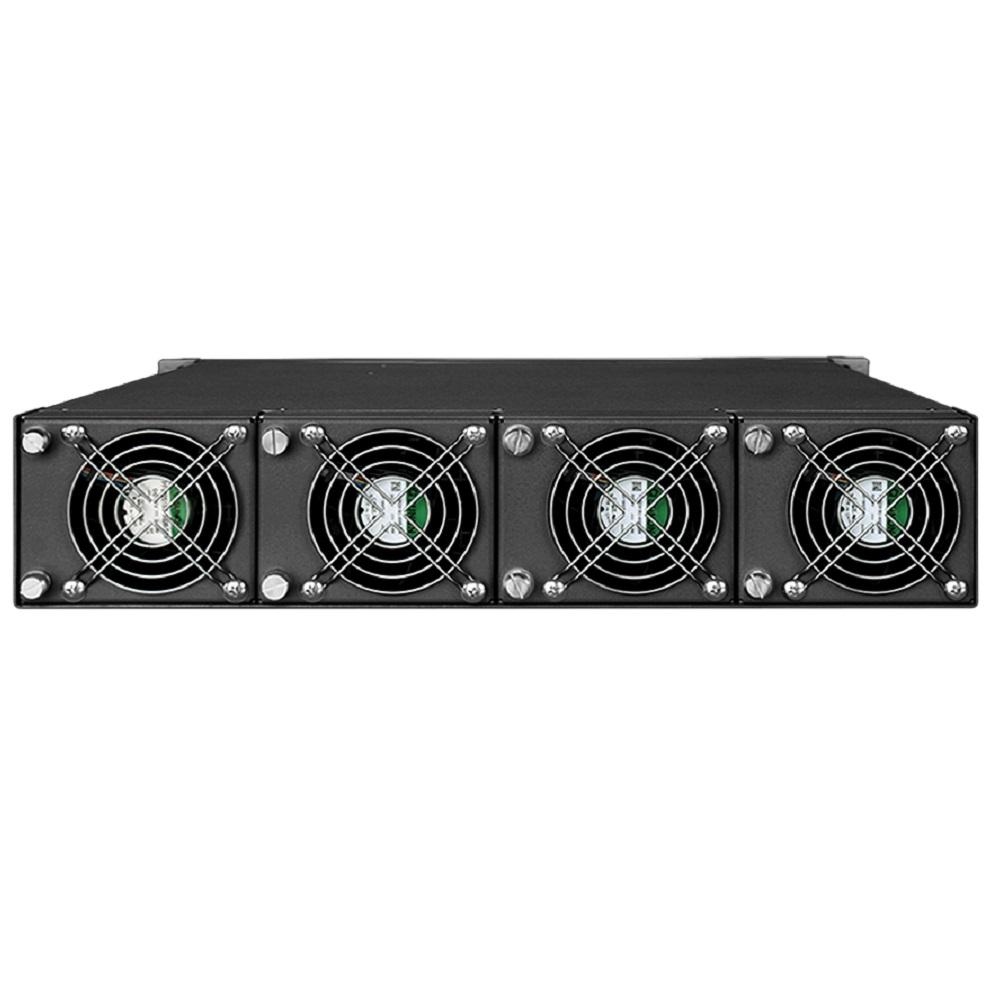

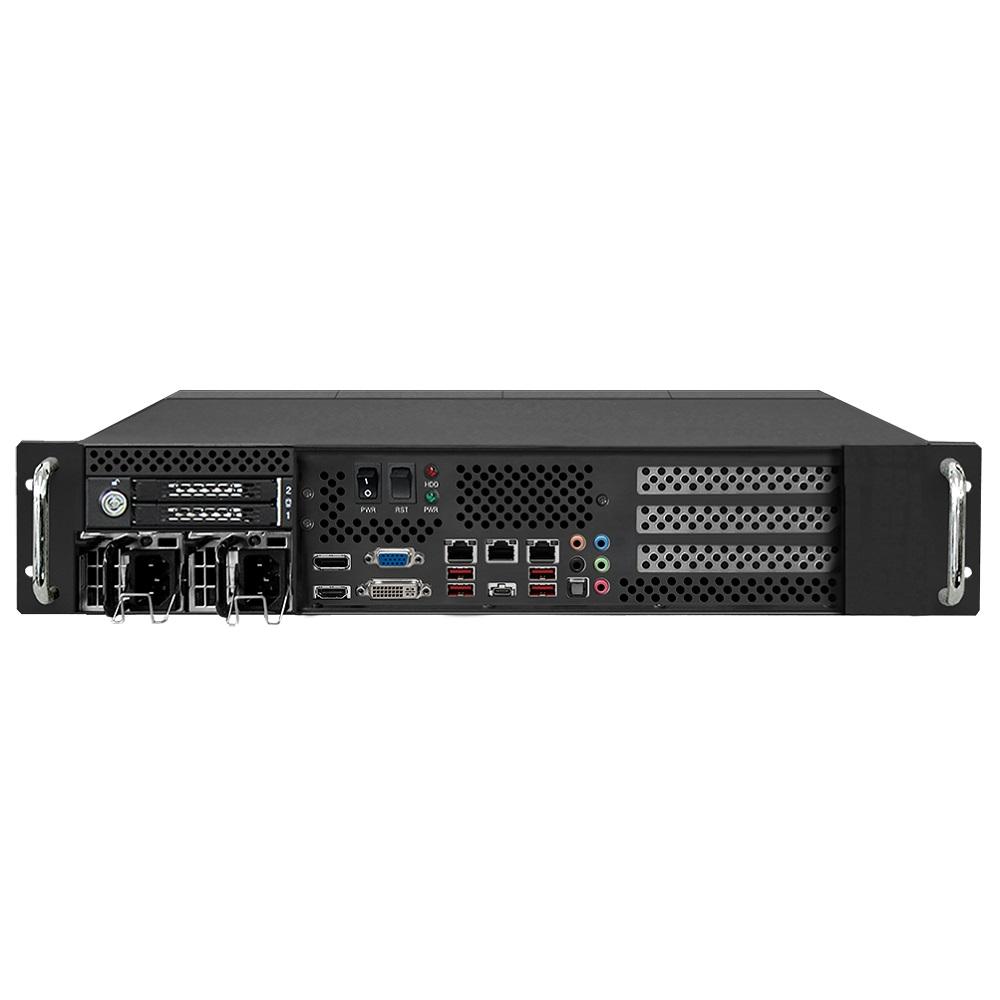

The GAP-245P-W8 has a depth of 450mm, front I/O, and front redundant (or optional single) AC power. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the front. The workstation offers up to two removable U.2 NVMe SSDs or three removable 2.5" SATA/SAS SSDs.

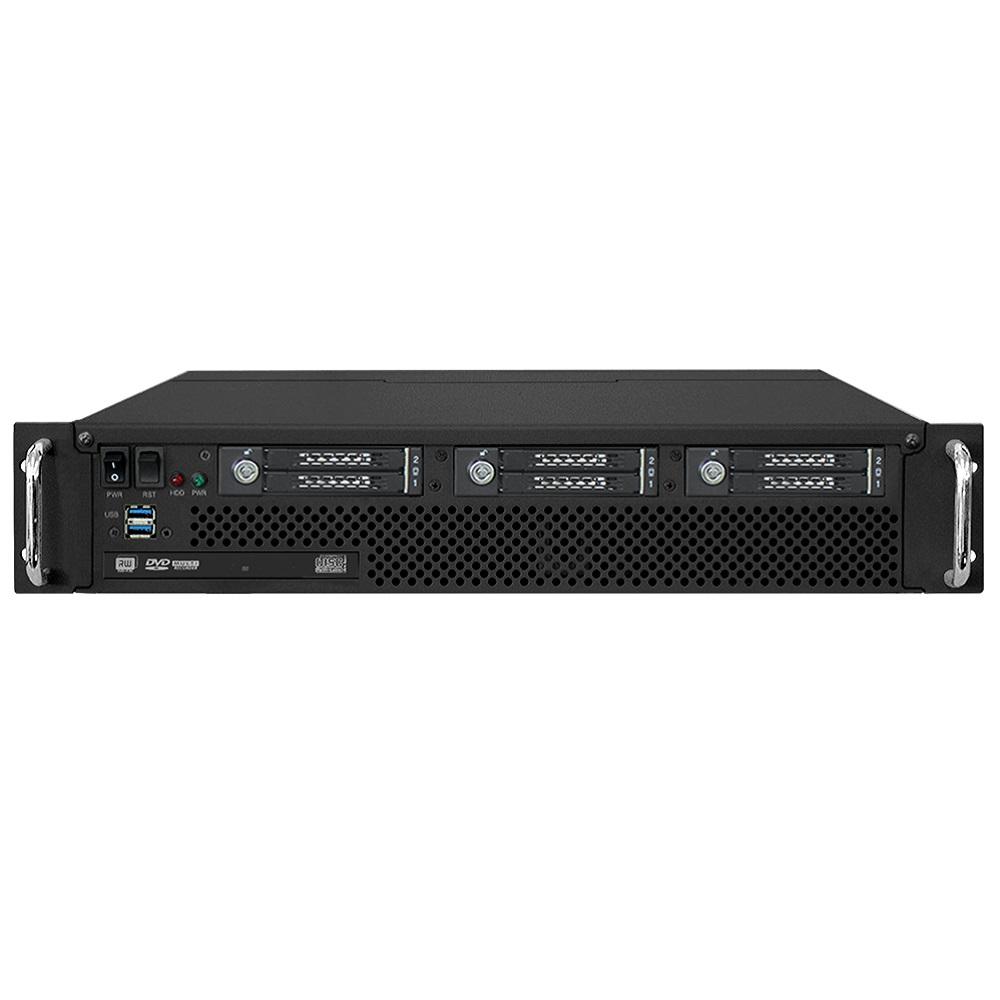

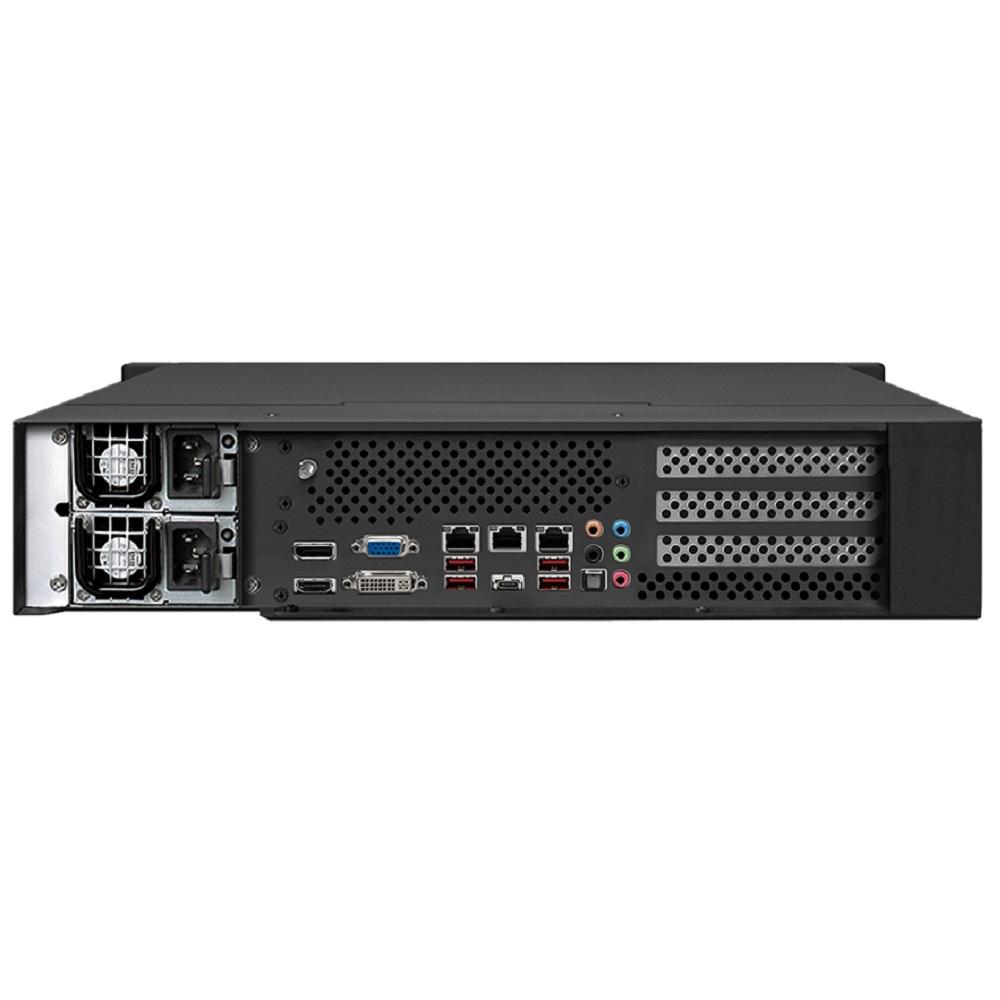

The GAP-245R-W8 has a depth of 450 mm, rear I/O, and rear redundant (or optional single) AC power. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the rear. The workstation also offers two USB 2.0 front panel ports and up to 6x removable U.2 NVMe SSDs or 9x removable 2.5" SATA/SAS SSDs. An optional DVD drive is available.

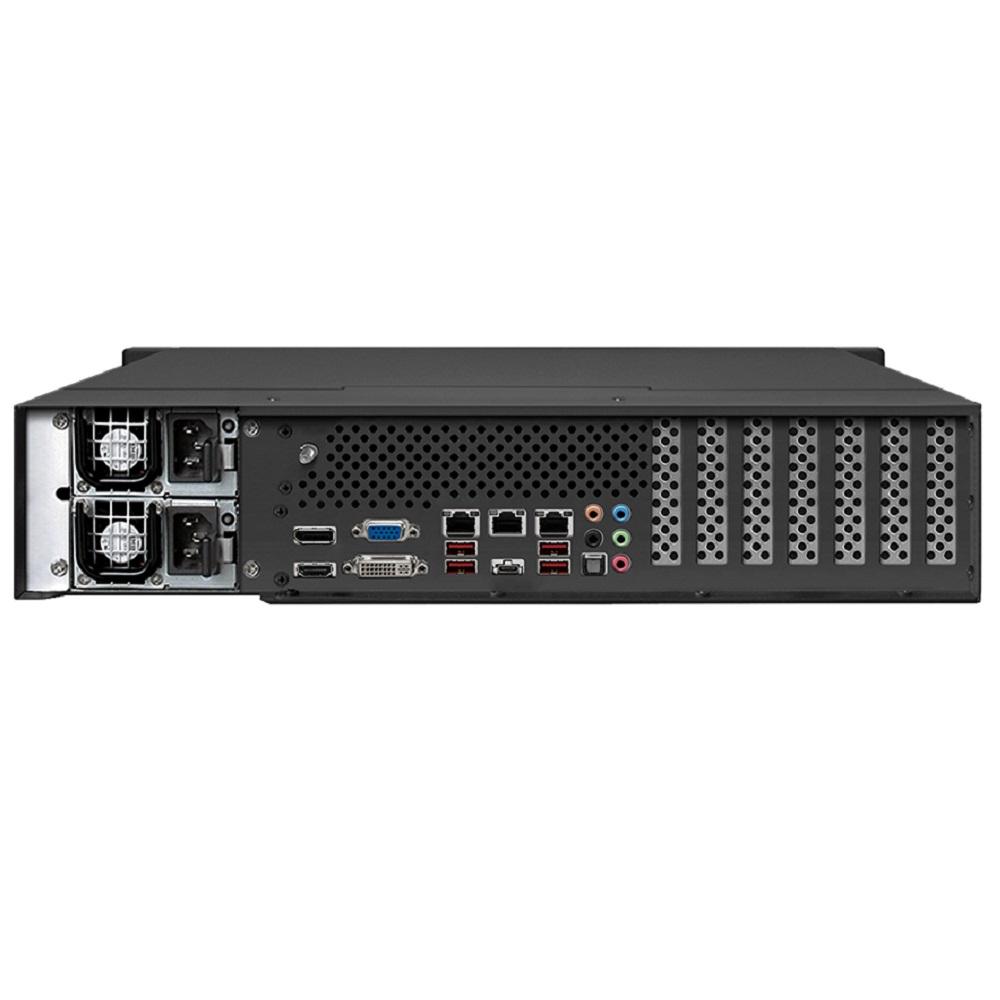

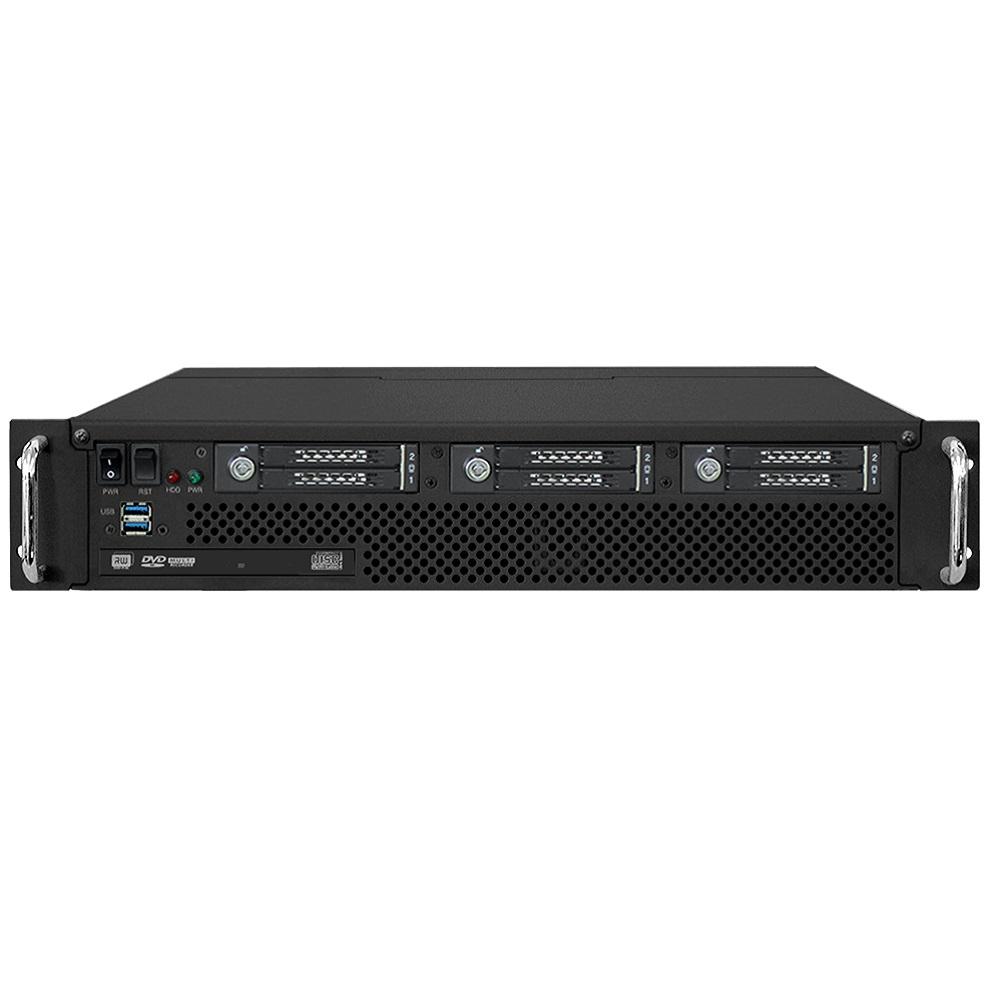

The GAP-245RL-W8 has a depth of 450mm, rear I/O, and rear redundant (or optional single) AC power. DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio are available in the rear. The workstation also offers two USB 2.0 front panel ports, two PCIe 3.0 x1 slots and one 5V PCI 32bit slot, and up to 6x removable U.2 NVMe SSDs or 9x removable 2.5" SATA/SAS SSDs. A DVD drive is optionally available.

ORDER NOW

Technical Description

proimg1
  • 2U rugged server, 355mm or 450mm depth
  • Intel® Xeon® W-1300 Gen. 11 or Core i9/i7/i5/i3 Gen. 10 processors
  • Up to 128GB DDR4-3200 MHz ECC/non-ECC RAM, 4 DIMM slots
  • Intel W580 chipset
  • ASPEED AST2500 BMC graphics
  • PCIe 4.0 x16 slot or 2x PCIe x8 slots
  • 2x PCIe 3.0 x1 and 1x 5V PCI 32bit on GAP-235PL and GAP-245RL version
  • M.2 PCIe 4.0 x4 2280/22110 NVMe with M-Key and 2x M.2 PCIe 3.0 x4 2280/22110 NVMe with M-Key
  • GAP-235PL, GAP-245P: Up to 2x hot swap U.2 NVMe SSDs or 3x hot swap 2.5″ SATA/SAS SSDs
    GAP-245F, GAP-245R, GAP-245RL: Up to 6x hot swap U.2 NVMe SSDs or 9x hot swap 2.5″ SATA/SAS SSDs
  • DisplayPort, HDMI, VGA, DVI-D, GbE LAN, 2.5GHz GbE LAN, IPMI, 4x USB 3.2, USB-C and audio in the front of the GAP-235PL, GAP-245F and GAP-245P version, in the rear of the GAP-245R and GAP-245RL version
  • Opt. DVD drive at GAP-235PL, GAP-245R and GAP-245RL version
  • GAP-235PL: Front AC power supply
    GAP-245F, GAP-245R und GAP-245RL: Rear redundant (opt. single) AC power supply
    GAP-245P: Front redundant (opt. single) AC power supply
  • 0°C .. 50°C operating temperature range, MIL-STD-810H, method 501.7 & 502.7,
    opt. -20°C .. +60°C operating temperature range
  • 20G/11ms shock MIL-STD-810G method 516.7, opt. EMC MIL-STD-461G and conformal coating
  • 2 years warranty

Order Information

GAP-235PL-W8-100

2U Rugged WS, front I/O, power supply, 3x 2.5" SSDs, 355mm depth

GAP-235PL-W8-101

2U Rugged WS, front I/O, front power supply, 2x U.2 NVME SSDs, 355mm depth

GAP-245F-W8-100

2U Rugged WS, front I/O, rear power supply, 9x 2.5" SSDs, 450mm depth

GAP-245F-W8-101

2U Rugged WS, front I/O, rear power supply, 6x U.2 NVME SSDs, 450mm depth

GAP-245P-W8-100

2U Rugged WS, front I/O, front power supply, 3x 2.5" SSDs, 450mm depth

GAP-245P-W8-101

2U Rugged WS, front I/O, front power supply, 2x U.2 NVME SSDs, 450mm depth

GAP-245R-W8-100

2U Rugged WS, rear I/O, rear power supply, 9x 2.5" SSDs, 2 PCIe

GAP-245R-W8-101

2U Rugged WS, rear I/O, rear power supply, 6x U.2 NVME SSDs, 2 PCIe

GAP-245RL-W8-100

2U Rugged WS, rear I/O, rear power supply, 9x 2.5" SSDs, 5 PCIe

GAP-245RL-W8-101

2U Rugged WS, rear I/O, rear power supply, 6x U.2 NVME SSDs, 5 PCIe
