Hermes

Hermes conduction-cooled 3U VPX CPU Board with Intel Core i7 Generation 13 Processor, 100GbE and opt. XMC Slot

3U conduction-cooled VPX CPU board with one 2.5 GHz (5.0 GHz Turbo) 14-core Intel Core i7-13800HRE processor, integrated Intel Iris Xe Gen12 graphics and Intel® Vector Neuro Network Instructions (VNNI). The board has up to 64GB soldered LPDDR5 IBECC SDRAM.

The CONCURRENT Technologies Hermes board offers one 100GbE port, up to two 10GbE ports and one 1GbE port. In addition one DisplayPort with up to 5120x3200 pixel resolution, one M.2 2242 SSD slot, one SATA 6Gbit/s port, one PCIe x4 port, one RS232/422/485, one LVCMOS maintenance port, one USB 3.2 port, two USB 2.0 ports, up to 4 GPIO ports and optional one XMC slot are available.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Microsoft Windows and Linux.

ORDER NOW

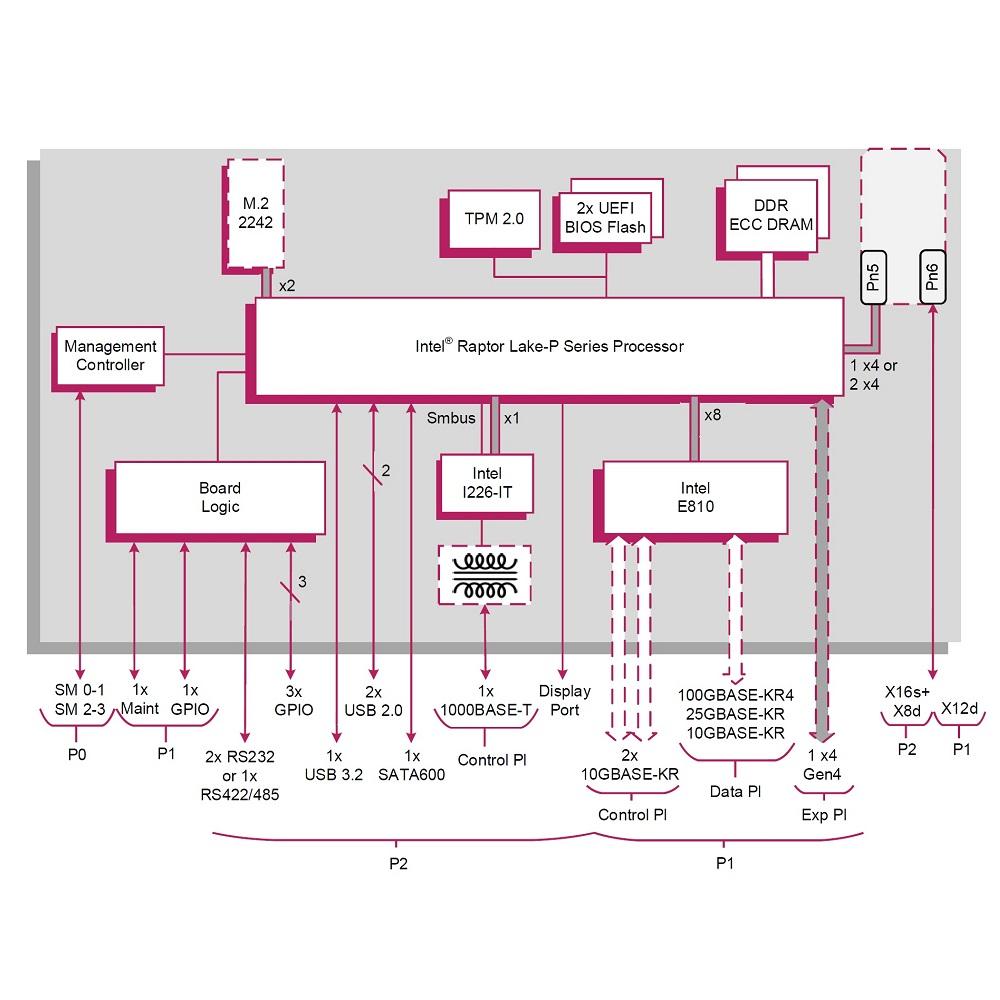

Technical Description

proimg1
  • 3U/4HP VPX board, VITA 42.0, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.7, VITA 46.9, VITA 46.11, VITA 47, VITA 48.0, VITA 48.2, VITA 61 OpenVPX compliant
  • SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 slot profile,
    MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-4 module profile
  • 14-core Intel Core i7-13800HRE CPU
  • Intel® Vector Neuro Network Instructions (VNNI)
  • Up to 64 GB ECC LPDDR5 SDRAM, soldered
  • Dual 32 MB BIOS SPI Flash EPROMs
  • Graphics in CPU integrated, Intel Iris Xe Gen12 graphics with up to 96 EUs
  • DisplayPort v1.2/1.4 via P2 with up to 5120×3200 pixel resolution
  • Opt. one XMC slot, VITA 42.0, P1 and P2 rear I/O (X12d+X16s+X8d), VITA 46.9
  • One 100GBase-KR4 port or one 25GBase-KR port or four 10GBase-KR ports via P1, VITA 46.7, Intel E810
  • Up to two 10GBase-KR ports via P1, VITA 46.7, Intel E810
  • One 2.5GBase-T port with 10/100/1000Base-T support via P2, VITA 46.6, Intel I226-IT
  • One M.2 SSD slot: 2242 module formats supported, PCIe x2 interface, NVMe logical device interface, write protection and Opal 2.0 security support
  • One SATA 6Gbit/s port on P2
  • 2 serial port:
    one RS232/422/485 port via P2
    one LVCMOS maintenance port on P1
  • 3 USB ports via P2, 1 USB 3.2 and 2 USB 2.0 ports
  • 4 GPIO ports, 3 ports via P2 and 1 port via P1
  • One PCIe x4 port via P1 on the expansion plane with Gen1, Gen2, Gen3 and Gen4 support
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. fast boot solution with the Intel Firmware Support Package (FSP)
  • Real-time clock and watchdog timer
  • System management with CPU temperature and voltage monitoring and IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • Conduction-cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information

Hermes

3U VPX Core i7 Gen 13 CPU board, conduction-cooled

Technical Documentation

Hermes data sheet
