IC-ARM-VPX3a 3U VPX CPU Board with 16 Core ARM based QorIQ LX2160A Processor, 10/25/40/100Gigabit Ethernet Ports and 32GB RAM

3U VPX CPU board based on an up to 2.2 GHz QorIQ LX2160A processor with 16 ARM Cortex-A72 cores and 32 GB DDR4 ECC SDRAM. 512 KB xSRAM and 128 MB flash are available.

INTERFACE CONECPTs IC-ARM-VPX3a offers an 100Gigabit Ethernet 100GBase-KR4 port or one 40Gigabit Ethernet 40GBase-KR4 port or two 25Gigabit Ethernet 25GBase-KR ports or four 10Gigabit Ethernet 10GBase-KR ports via P1A on the data plane. On the control plane is a 10GBase-T port via P1D and P2B and one 25Gigabit Ethernet 25GBase-KR ports or two 10Gigabit Ethernet 10GBase-KR ports.

The Sensor Open Systems Architecture (SOSA) Consortium is a voluntary, consensus-based member consortium of The Open Group, a vendor-neutral technology standards organization developing an open technical standard for sensors. The IC-ARM-VPX3a is developed in alignment with the SOSA Technical Standard.

In addition the IC-ARM-VPX3a provides one USB 3.1 port, one USB 2.0 port, one RS-232 port, one RS-232/422 port, one SATA 3Gbit/s port and one PCIe x4 Gen 3 link. One M.2 slot and eMMC are available.

The IC-ARM-VPX3a comes with UBoot firmware in a secured flash and provides board support packages for LINUX and VxWorks. Other real time operating systems like PikeOS, LynxOS, Integrity,.. can be ported on request.

The board is available in six different environment classes from standard (0°C to 55°C), extended temperature (-20°C to +65°C), rugged (-40°C to +75°C), rugged (-40°C to +85°C), conduction-cooled (-40°C to +71°C) and conduction-cooled (-40°C to +85°C).

ORDER NOW

Technical Description

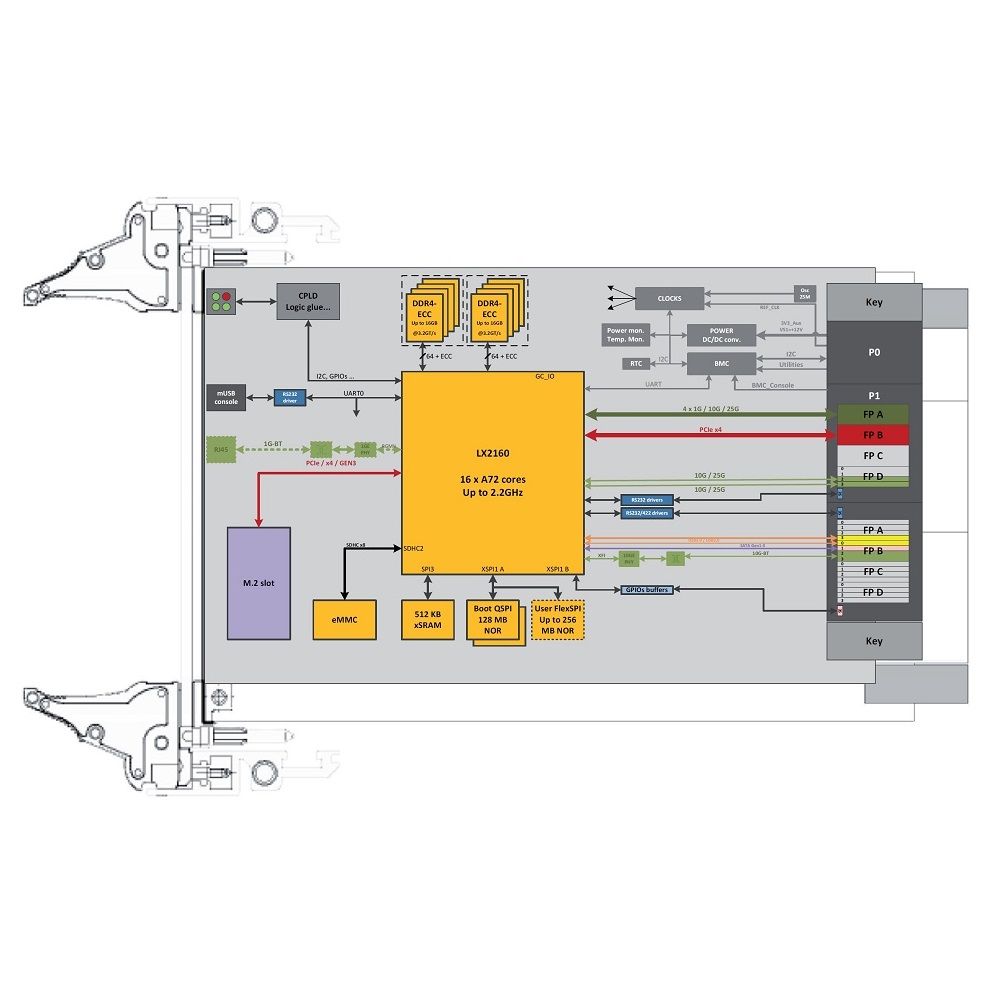

proimg1
  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.11, VITA 65.0 OpenVPX and SOSA compliant
  • SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 slot profile
  • Up to 2.2 GHz QorIQ LX2160A CPU with 16 ARM Cortex-A72 cores
  • 32 GB DDR4 ECC RAM
  • 512 KB xSRAM
  • 128 MB Quad SPI NOR flash
  • One 100Gigabit Ethernet 100GBase-KR4 port or one 40Gigabit Ethernet 40GBase-KR4 port or
    two 25Gigabit Ethernet 25GBase-KR ports or
    four 10Gigabit Ethernet 10GBase-KR ports via P1A on the data plane
  • Two 25Gigabit Ethernet 25GBase-KR ports or two 10Gigabit Ethernet 10GBase-KR ports via P1D and P2B on the control plane
  • One 10GBase-T port via P1D and P2B on the control plane
  • Two USB ports via P2, one USB 3.1 and one USB 2.0 port
  • Two RS-232 ports, one RS232 port via P1 and one RS232/422 port via P2
  • One SATA 3Gbit/s port via P2B
  • One PCIe x4 Gen 3 port via P1B
  • One M.2 slot
  • Board management controller with PCI µ-controller for system management via VITA 46.11, real time clock with supercap backup, elapse timer counter and DC and thermal monitoring
  • UBoot based firmware in secured flash
  • In 6 environmental classes available: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), rugged (-40°C .. +85°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-ARM-VPX3a-110

3U/4HP CPU board, LX2160A, 32 GB RAM, 0 .. +55°C

C-ARM-VPX3a-111

3U/4HP CPU board, LX2160A, 32 GB RAM, -20 .. +65°C

IC-ARM-VPX3a-112

3U/4HP CPU board, LX2160A, 32 GB RAM, -40 .. +75°C, rugged

IC-ARM-VPX3a-113

3U/4HP CPU board, LX2160A, 32 GB RAM, -40 .. +85°C, rugged

IC-ARM-VPX3a-210

3U/4HP CPU board, LX2160A, 32 GB RAM, -40 .. +71°C, conduction-cooled

IC-ARM-VPX3a-211

3U/4HP CPU board, LX2160A, 32 GB RAM, -40 .. +85°C, conduction-cooled

Technical Documentation

IC-ARM-VPX3a-DS

IC-ARM-VPX3a Data Sheet
