3U VPX CPU Board with Intel Xeon 11 Gen. Processor with up to 64 GB RAM, Gigabit Ethernet and Graphics Interface

3U VPX CPU board with an 8-core 2.6 GHz Intel Xeon W-11865MRE processor or a 6-core 2.6 GHz Intel Xeon W-11555MRE processor and up to 64 GB DDR4 ECC SDRAM. The board has a boot flash memory.

The IC-INT-VPX3k CPU board offers two Gigabit Ethernet ports, an Intel® Xe graphics engine with one video DisplayPort, one M.2 2242 SSD slot, 16 PCIe lanes (1 x16, 2 x8 or 2 x4 and 1 x8), one PCIe x4 Gen3 port, 4 SATA ports or one additional PCIe x4 Gen3 port, one RS-232 serial port, 2 USB 2.0 ports and 4 GPIO ports. In addition, there are two console ports (one mini USB and one RS-232 console port).

The IC-INT-VPX3k VPX board is delivered with the IC SDK Linux. For other operating systems like VxWorks and Windows please contact us.

The board is available in six versions. There is a standard 0°C to 55°C version, -20°C to +65°C, -40°C to +75°C rugged, -40°C to +85°C rugged, -40°C to +71°C conduction-cooled and -40°C to +85°C conduction-cooled operating temperature ranges.

ORDER NOW

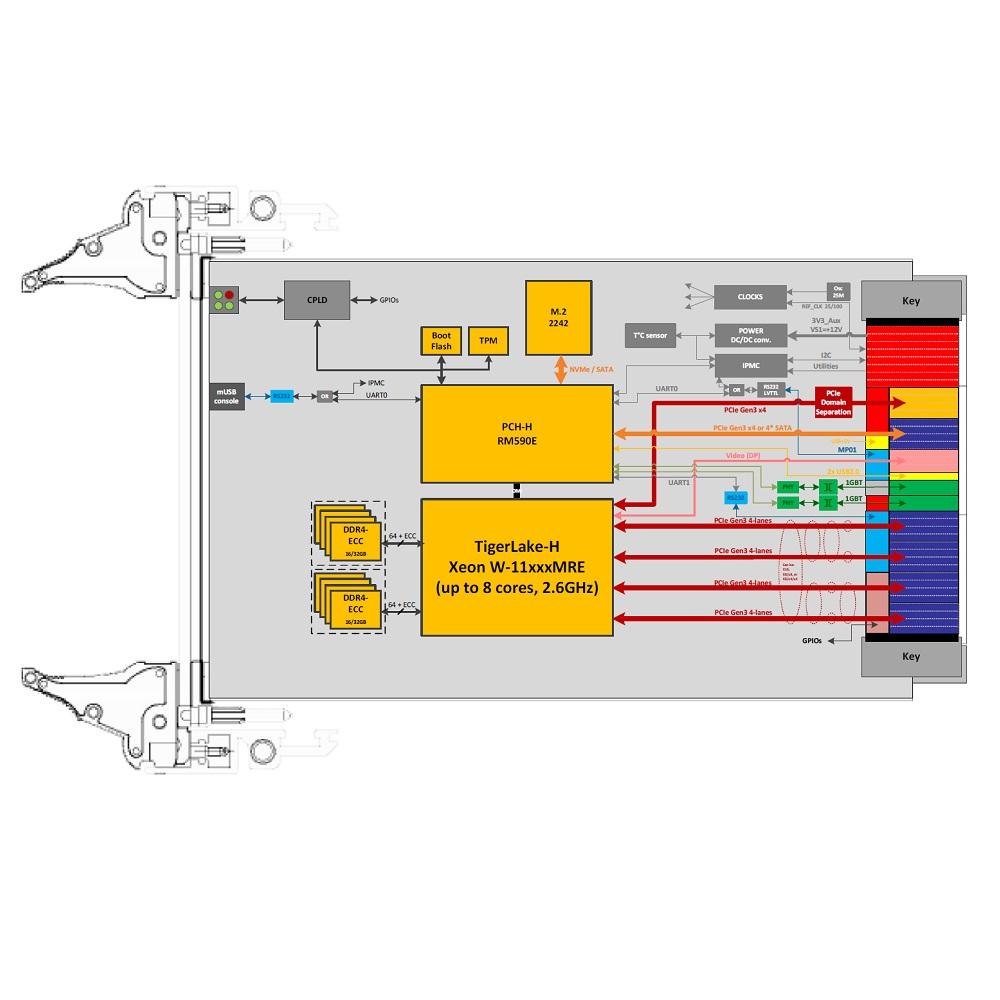

Technical Description

proimg1
  • VPX CPU board, VITA 46.0, VITA 46.11 compliant
  • 8 Core 2.6 GHz Intel Xeon W-11865MRE or
    6 Core 2.6 GHz Intel Xeon W-11555MRE
  • 64 GB DDR4 ECC SDRAM
  • Intel® Xe graphics engine with up to two 4K display interfaces via one Video DisplayPort on P1
  • M.2 2242 SSD slot
  • 2 Gigabit Ethernet 1000BASE-T ports on P1
  • 16 PCIe lanes (x16 or x8, x8 or x8, x4, x4) on P2
  • One PCIe x4 Gen3 port on P1
  • 4 SATA ports or one PCIe x4 Gen3 port on P1
  • One RS-232 serial port on P2
  • One RS-232 console port on P1 and one mini USB front panel console port
  • 2 USB 2.0 ports on P1
  • 4 GPIO ports on P2
  • Intel® Slim Bootloader with boot flash memory
  • Thermal/voltage monitoring sensors
  • Available in 6 environmental classes: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), rugged (-40°C .. +85°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-INT-VPX3k

3U VPX Xeon CPU Board

Technical Documentation

IC-INT-VPX3k-DS

IC-INT-VPX3k Data Sheet
