Zynq™ UltraScale+ FPGA Module with 4 1000Base-X Ethernet Ports

XMC module with an AMD Zynq™ Ultrascale+™ ZU4CG MultiProcessor SoC. The MPSoC combines a 64-bit quad-core or dual-core Arm® Cortex®-A53, a dual-core Arm® Cortex®-R5F based Processing System (PS) and an UltraScale Programmable Logic (PL). The IC-MPS-XMCa from INTERFACE CONCEPT with 2GB DDR4 SDRAM and two 128MB SPI Boot Flash is an ideal solution to expand the communication capacity and computing power of a carrier board.

The IC-MPS-XMCa offers 4 Gigabit Ethernet front panel ports, one USB-C front panel port as well as two RS232/422 ports, a CANbus interface, two USB 2.0 ports and 12 GPIO ports via the rear I/O XMC connector.

The FPGA module is available in six versions. There is a standard 0°C to 55°C version, -20°C to +65°C, -40°C to +75°C rugged, -40°C to +85°C rugged, -40°C to +71°C conduction-cooled and -40°C to +85°C conduction-cooled operating temperature ranges.

ORDER NOW

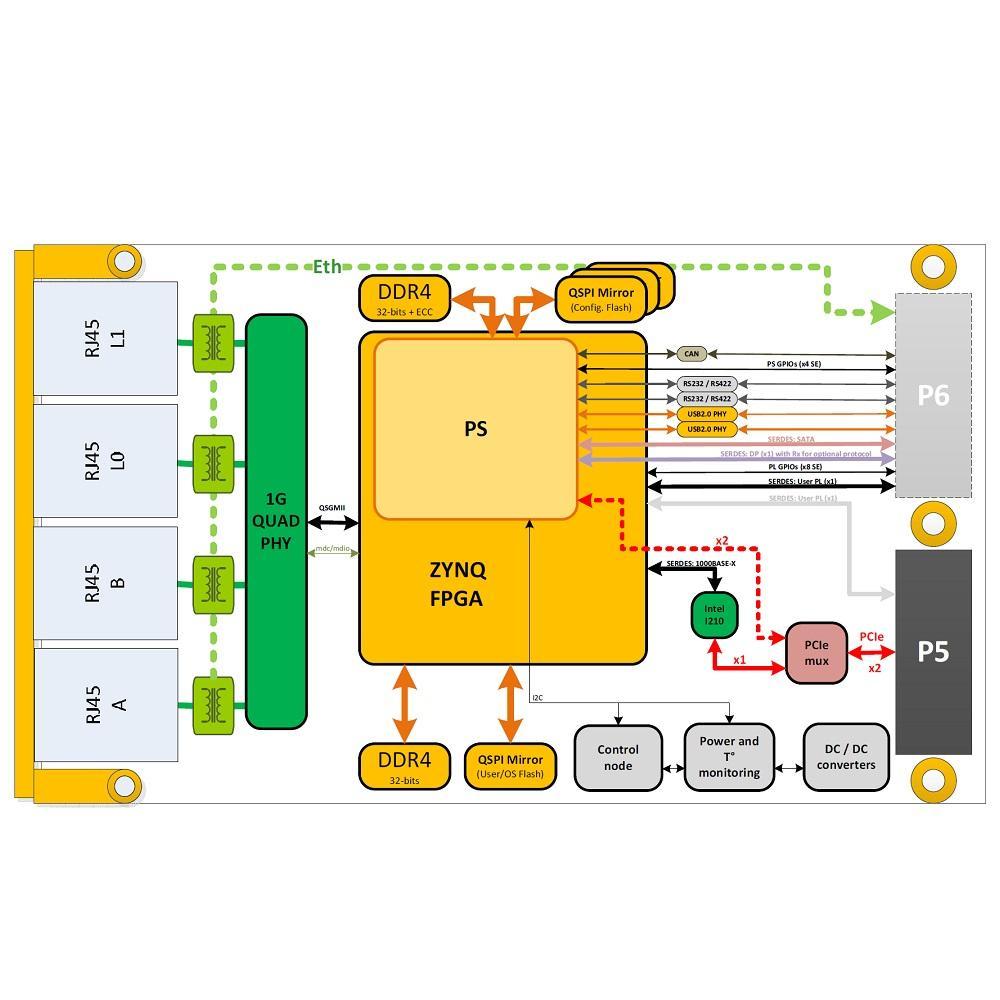

Technical Description

proimg1
  • XMC module
  • AMD Zynq™ Ultrascale+™ ZU4CG MPSoC with quad-core or dual-core Arm® Cortex®-A53, a dual-core Arm® Cortex®-R5F and an UltraScale Programmable Logic
  • 2GB DDR4 SDRAM
  • Two 128MB SPI Boot Flash
  • 4 Gigabit Ethernet front panel ports
  • 2 RS232/422 ports via rear I/O
  • One CANbus interface via rear I/O
  • 3 USB ports, 1 USB-C front panel port and 2 USB 2.0 ports via rear I/O
  • 12 GPIO ports via rear I/O
  • Available in 6 environmental classes: standard (0°C .. 55°C), extended grade (-20°C .. +65°C), rugged (-40°C .. +75°C), rugged (-40°C .. +85°C), conduction-cooled (-40°C .. +71°) and conduction-cooled (-40°C .. +85°)
  • 2 years warranty

Order Information

IC-MPS-XMCa-100

UltraScale+ FPGA XMC Module, 0 .. +55°C

IC-MPS-XMCa-100e

UltraScale+ FPGA XMC Module, -20 .. +65°C

IC-MPS-XMCa-100r1

UltraScale+ FPGA XMC Module, -40 .. +75°C, rugged

IC-MPS-XMCa-100r2

UltraScale+ FPGA XMC Module, -40 .. +85°C, rugged

IC-MPS-XMCa-100c1

UltraScale+ FPGA XMC Module, -40 .. +71°C, conduction-cooled

IC-MPS-XMCa-100c2

UltraScale+ FPGA XMC Module, -40 .. +85°C, conduction-cooled

Technical Documentation

IC-MPS-XMCa-DS

IC-MPS-XMCa data sheet
