Magni conduction-cooled 3U VPX CPU Board with Intel Core i7 Generation 13 Processor, 100GbE and opt. XMC Slot

3U conduction-cooled VPX CPU board with one 14-core Intel Core i7-13800HRE processor, integrated Intel Iris Xe Gen12 graphics and Intel® Vector Neuro Network Instructions (VNNI). The board has up to 64GB soldered LPDDR5 IBECC SDRAM.

The CONCURRENT Technologies Magni board offers one 100GbE port and up to two 10GbE ports. In addition one M.2 2242 SSD slot, one PCIe x4 port, two LVCMOS maintenance ports, one USB-C port, one GPIO port and optional one XMC slot are available.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Linux.

ORDER NOW

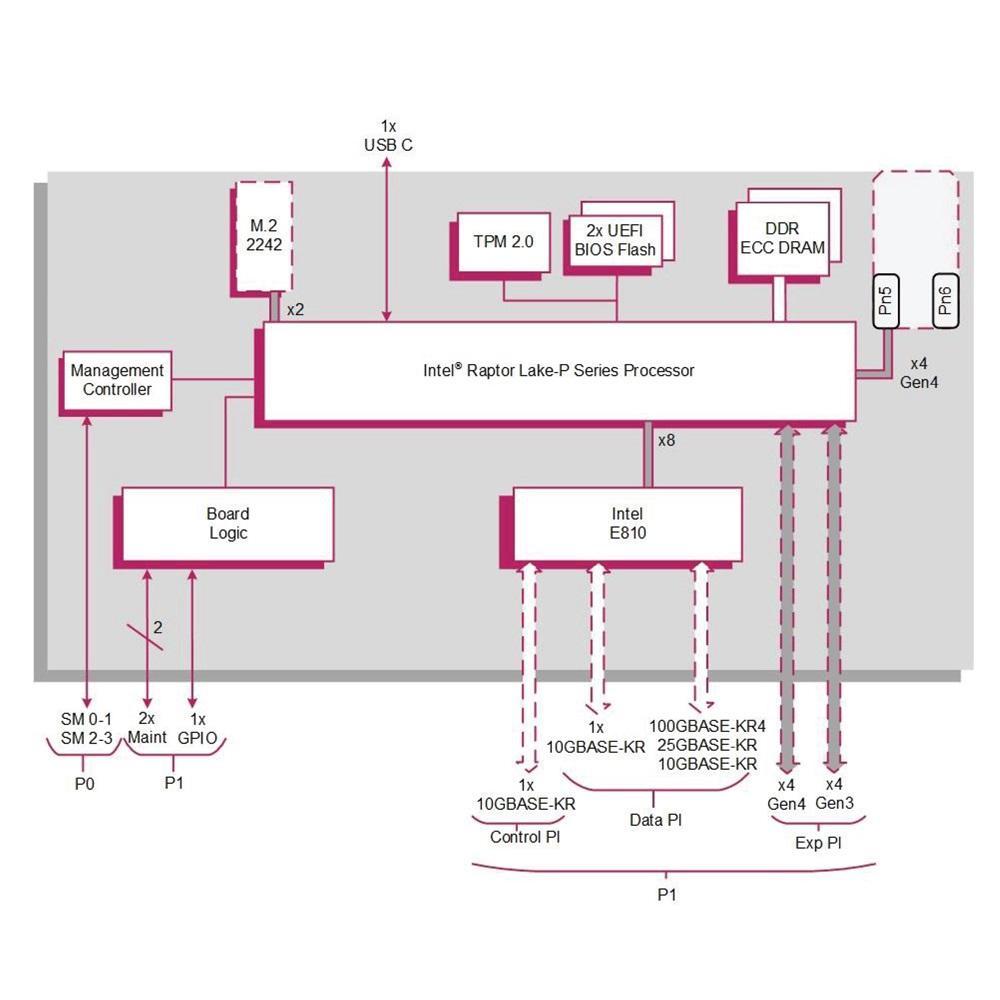

Technical Description

proimg1
  • 3U/4HP VPX board, VITA 42.0, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.7, VITA 46.9, VITA 46.11, VITA 47, VITA 48.0, VITA 48.2 and OpenVPX compliant
  • SLT3-PAY-1F1U1S1S1U1U2F1H-14-6.11-0 slot profile
  • 14-core Intel Core i7-13800HRE CPU
  • Intel® Vector Neuro Network Instructions (VNNI)
  • Up to 64 GB IBECC LPDDR5 SDRAM, soldered
  • Dual 32 MB BIOS SPI Flash EPROMs
  • Graphics in CPU integrated, Intel Iris Xe Gen12 graphics with up to 96 EUs
  • Optional one XMC slot, VITA 42.0
  • 100GBase-KR4 port or one 25GBase-KR port or four 10GBase-KR ports via P1, VITA 46.7, Intel E810
  • Up to two 10GBase-KR ports via P1, VITA 46.7, Intel E810
  • M.2 SSD slot: 2242 module formats supported, PCIe x2 interface with M-key, NVMe logical device interface, write protection and Opal 2.0 security support
  • 2 serial LVCMOS maintenance ports on P1
  • USB-C front panel port for development purposes
  • GPIO port via P1
  • One PCIe x4 port via P1 on the expansion plane with Gen3 and Gen4 support
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. fast boot solution with the Intel Firmware Support Package (FSP)
  • Real-time clock and watchdog timer
  • System management with IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • Conduction-cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information

Magni (TR MBx/6sd)

3U VPX Core i7 Gen 13 CPU board, conduction-cooled

Technical Documentation

Magni-DS

Magni (TR MBx/6sd) data sheet
