MTCA-12S-RF2 MicroTCA.4 Chassis with RTM Slots

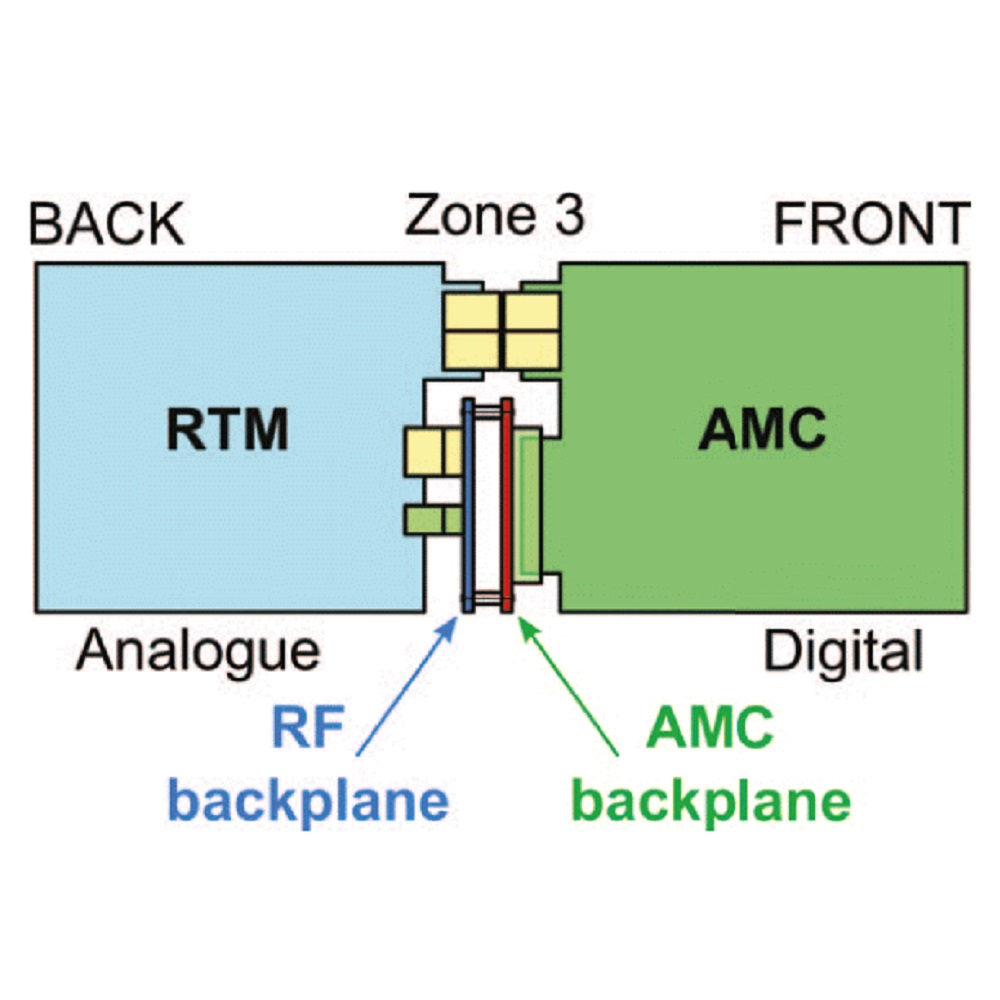

The 9U MicroTCA.4™ chassis provides 12 double mid size AMC slots and 12 double mid size rear transition module slots. It is compliant to the xTCA specification PICMG Physics WG1. The powerBridge Computer MTCA.4 system has two MCH slots and four power module slots. A RTM backplane can be mounted in the rear. This allows the boards to be synchronised with each other. The clock distribution and RF signals between the RTMS can be provided by the RF backplans or externally.

The System has two redundant hot-swap fan trays for high-precision AMC cooling and RTM cooling. The speed of the fans is separate adjustable for the front and rear.

ORDER NOW

Technical Description

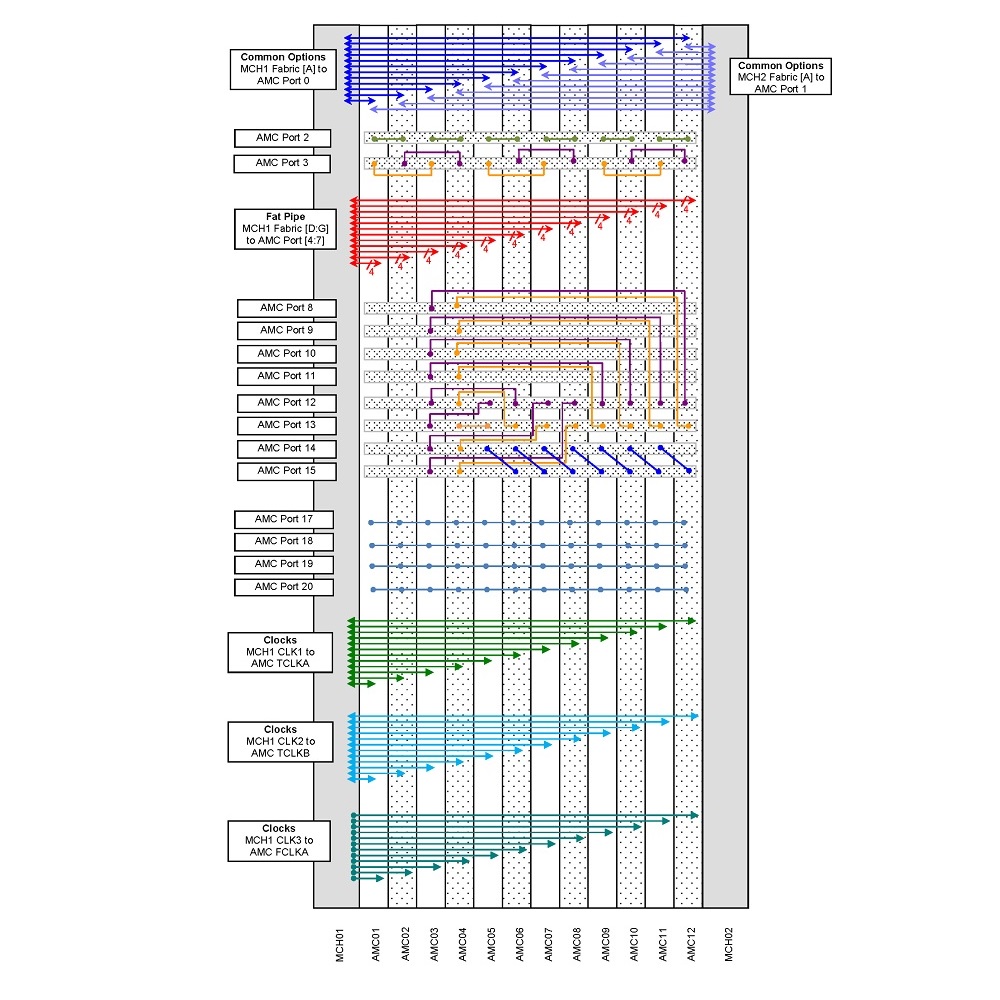

proimg1
  • 9U MicroTCA.4 system, front handles, PICMG MicroTCA R1.0 and PICMG MTCA.4 R1.0 compliant
  • 12 double mid size AMC slots
  • 12 double mid size Rear Transition Module slots
  • Mounting space LLRF backplane
  • 2 MCH slots
  • 4 power module slots
  • 2 redundant hot-swap fan trays
  • One dust filter, exchangeable
  • System depth: 373.30 mm
  • Operating temperature range -5 .. +45°C
  • 2 years warranty

Order Information

MTCA-12S-RF2

MTCA.4 system with 12 double mid size AMC slots and 12 double mid-size RTM slots

21850-106

Double mid size front panel, screw-in

21850-108

Double mid size RTM filler module, screw-in

NAT-MCH-PHYS

MTCA.4 MCH with special clock module

NAT-MCH-PHYS80

MTCA.4 MCH with optical uplinks

NAT-PM-AC600

NAT 600W power module

Technical Documentation

MTCA-12S-RF2-DS

MTCA-12S-RF2 Data Sheet
