MVME7100 VMEbus CPU Board with Dual Core 1.3 GHz MPC8641D Processor

The MVME7100 gets its performance from one MPC8641D 1.3 GHz PowerPC with two processor e600 cores. The MPC8641D CPU offers 32/32 KB L1, and 1 MB L2 cache for each core. The MVME7100 is available with 1 GB or 2 GB ECC DDR2-600 RAM and provides four 10/100/1000BastTX Gigabit Ethernet interfaces. For applications and operation systems 128 MB Flash are offered onboard. 2 GB user flash memory is optionally available.

The boards offers PMC-X slots for two 64-bit/100 MHz PMC modules. The PMC-X slots are connected via four lanes to a four port PCIe switch. The PCIe x8 lane from the PCIe switch to the MPC8641D processor ensures optimal I/O performance.
The MVME7100 is available with IEEE handles and standard handles.

Board support packages for LINUX, OS-9 and VxWorks are available.

The MVME7100 can be combined with the transition module MVME721A which offers two additional Gigabit Ethernet interfaces, and four RS-232 interfaces.

The product is end of life on 15.3.2024. If you have any questions, please contact us.

ORDER NOW

Technical Description

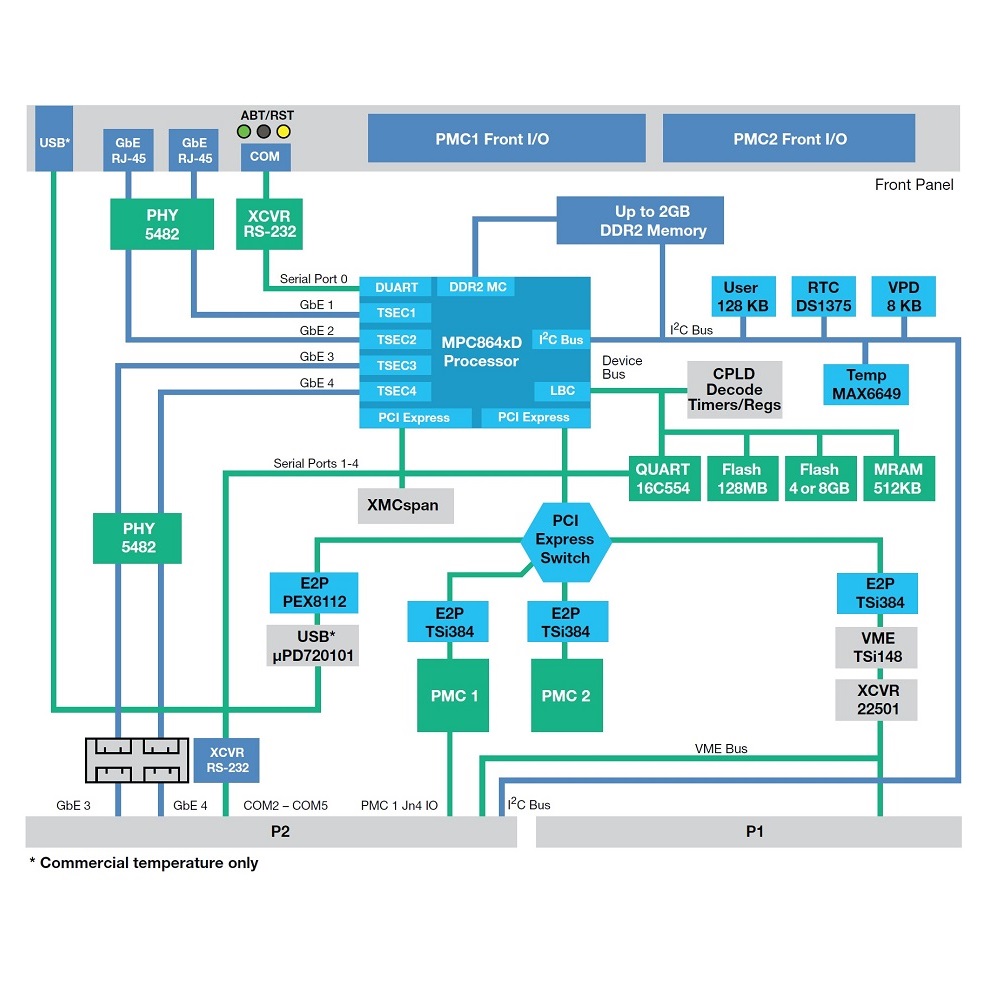

proimg1
  • Dual core 1.3 GHz MPC8641D PowerPC, 6U/4HP VMEbus board
  • 32KB/32KB L1 cache, 1 MB L2 cache
  • 1 GB or 2 GB DDR2-600 ECC RAM
  • 128 MB firmware flash and 2 GB user flash
  • 512 MB MRAM
  • 2 PMC-X sites for 33/66/100 MHz 3.3/5Vio PMC expansion cards, IEEE P1386.1 compliant, front panel, or P2 I/O and processor PMC support
  • MVME721A transition module
  • Four RJ-45 interfaces
  • Two 10/100/1000BaseTX interfaces
  • 8 KB VPD SEEPROM
  • Front USB interface
  • PCIe x8 PMCspan expansion connector
  • Five 16550 comp. asyn. ser. interfaces (MPC8641D, ST16C554D)
  • Four 10/100/1000BaseTX Gigabit Ethernet ports
  • A16/A24/A32 : D8/D16/D32/D64, SCT, BLT, MBLT, 2eVME, 2eSST and UAT VMEbus master/slave interface with system controller functions, IRQ handler/generator IRQ1-7, Tundra Tsi148 VME/2eSST-to-PCI-X bridge
  • In 2 environmental classes available: standard 0°C .. 55°C and extended grade -40°C .. +71°C
  • 2 years warranty, opt. extendable to 5 years

Order Information

MVME7100-0161

1 GHz MPC8641D processor, 1 GB ECC DDR2 RAM, 2 GB flash, standard handles

MVME7100-0163

1 GHz MPC8641D processor, 1 GB ECC DDR2 RAM, 2 GB flash, IEEE handles

MVME7100-0171-2GF

1.3 GHz MPC8641D processor, 2 GB ECC DDR2 RAM, 2 GB flash, standard handles

MVME7100-0173-2GF

1.3 GHz MPC8641D processor, 2 GB ECC DDR2 RAM, 2 GB flash, IEEE handles

MVME7100ET-0161-2GF

1 GHz MPC8641D processor, 1 GB ECC DDR2 RAM, 2 GB flash, standard handles, -40°C .. +71°C

MVME7100ET-0173-2GF

1.3 GHz MPC8641D processor, 2 GB ECC DDR2 RAM, 2 GB flash, IEEE handles, -40°C .. +71°C

MVME721-101

Rear transition module

XMCSPAN-001

VMEbus expansion board for 2 XMC Sites, IEEE handles
