NAMC-QorIQ-P3041 Processor AMC with 4 Core 1.5 GHz P3041 PowerPC

The processor AMC module offer an 1.5 GHz P3041 processor with 4 e500mc PowerPC Cores and provides up to 4 GB DDR3 1333 MHz SDRAM, 1 GB NAND flash, and 128 MB NOR flash. The Lattice ECP3 FPGA offers for example ITDM, PTP protocol acceleration, and IEEE1588/RTP timestamp insertion/synchronization. RTP (Real Time Protocol) and PTP (Precision Time Protocol) real time clock and PPL telecom clock are supported. An opt. additional H.110-like timeslot interchanger (TSI) interface is available.

The NAMC-QorIQ-P304x series from NAT has three Gigabit Ethernet ports, two SATA ports, one USB 2.0 port, 18 SerDes ports and an I-TDM interface. The backplane offers Serial Rapid IO x4 (SRIO), 10Gigabit Ethernet (XAUI), and PCIe x4 Gen2. Opt. one RS-232 port and H.110 are available. One Gigabit Ethernet, one USB 2.0 and opt. one RS-232 port are available on the front panel.

The module supports Linux, VxWorks, the real time Open Kernel 1 with multi processing (OK1-M), which will be delivered in source code and the multi-core real-time operating system Enea OSE which is optimized for Telecom applications.

The product is end of life. If you have any questions, please contact us.

ORDER NOW

Technical Description

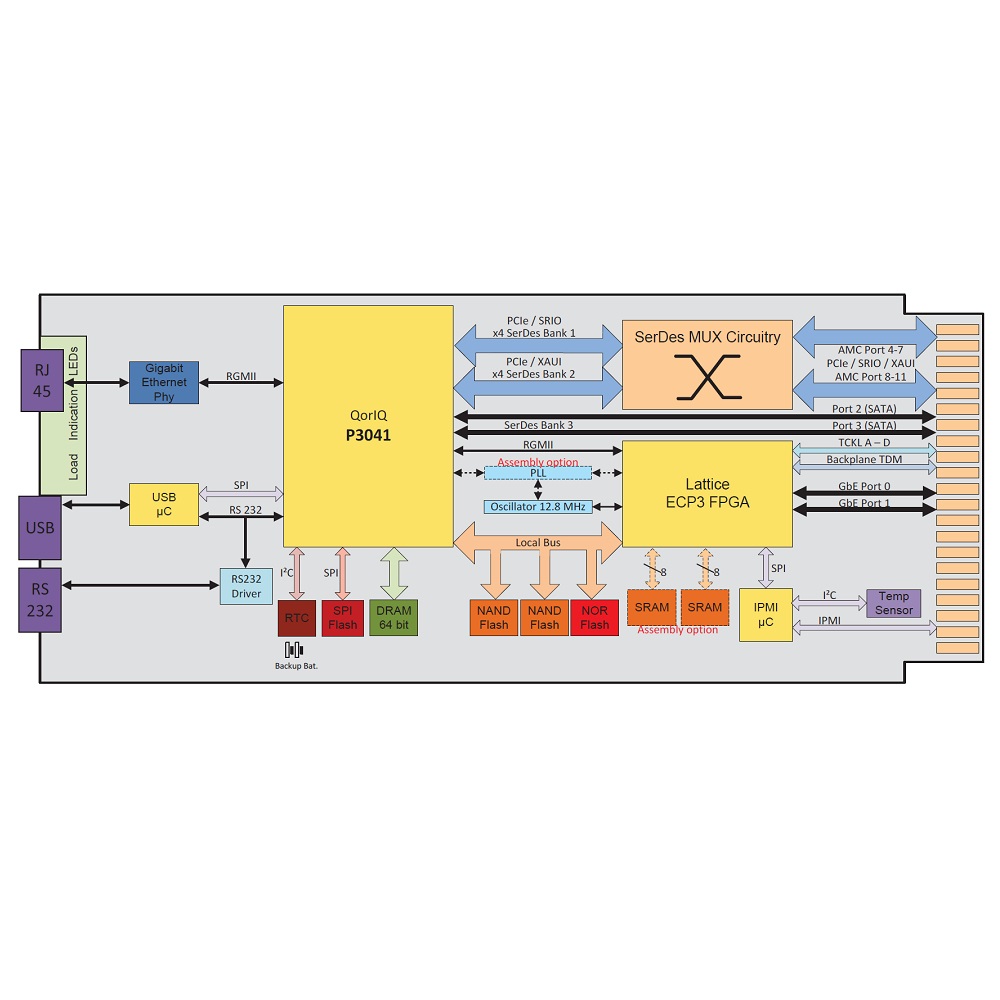

proimg1
  • Processor AMC module
  • AMC-Modul with AMC.1 type 4, AMC.2 type E2, AMC.3 SATA, and AMC.4 SRIO interface, mid size and full size form factor
  • 4 Core 1.5 GHz P3041 processor with e500mc PowerPC Cores
  • Up to 4 GB DDR3 1333 MHz ECC SDRAM
  • 1 GB NAND + 128 MB NOR flash
  • Lattice ECP3 FPGA
  • 18 SerDes ports (one XAUI, three PCIe 2.0, two SRIO1.3&2.1, two SATA 2.0, two USB 2.0, eight SGMII)
  • Two Serial Rapid IO x4 1.3 and 2.1 (SRIO) ports, one 10Gigabit Ethernet (XAUI) port, and one PCIe x4 Gen2 port on the backplane via port 4-7 or 8-11
  • Three Gigabit Ethernet ports, 1 front panel port and 2 ports on the backplane via port 0 and 1
  • Two SATA ports on the backplane via port 2 and 3
  • USB 2.0 front panel port
  • Opt. RS-232 front panel port
  • I-TDM interface
  • Opt. H.110 like TSI interface
  • 0°C .. 55°C operating temperature range
  • 2 years warranty

Order Information

NAMC-QorIQ-P3041-F

Processor AMC module, 4 Core 1.5 GHz P3041 PowerPC, Lattice FPGA, full size

NAMC-QorIQ-P3041-M

Processor AMC module, 4 Core 1.5 GHz P3041PowerPC, Lattice FPGA, mid size

NAMC-QorIQ-P3041-ECOF

Processor AMC module, 4 Core 1.5 GHz P3041PowerPC, full size, min order 50 pcs

NAMC-QorIQ-P3041-ECOM

Processor AMC module, 4 Core 1.5 GHz P3041PowerPC, mid size, min order 50 pcs

Technical Documentation

NAMC-QorIQ-P3041-DS

NAMC-QorIQ-P3041 Data Sheet

NAMC-QorIQ-P3041-UM

NAMC-QorIQ-P3041 User Manual
