PCIe-PXIe-8565

PCI Express to 3U PXI Express Chassis Expansion Kit

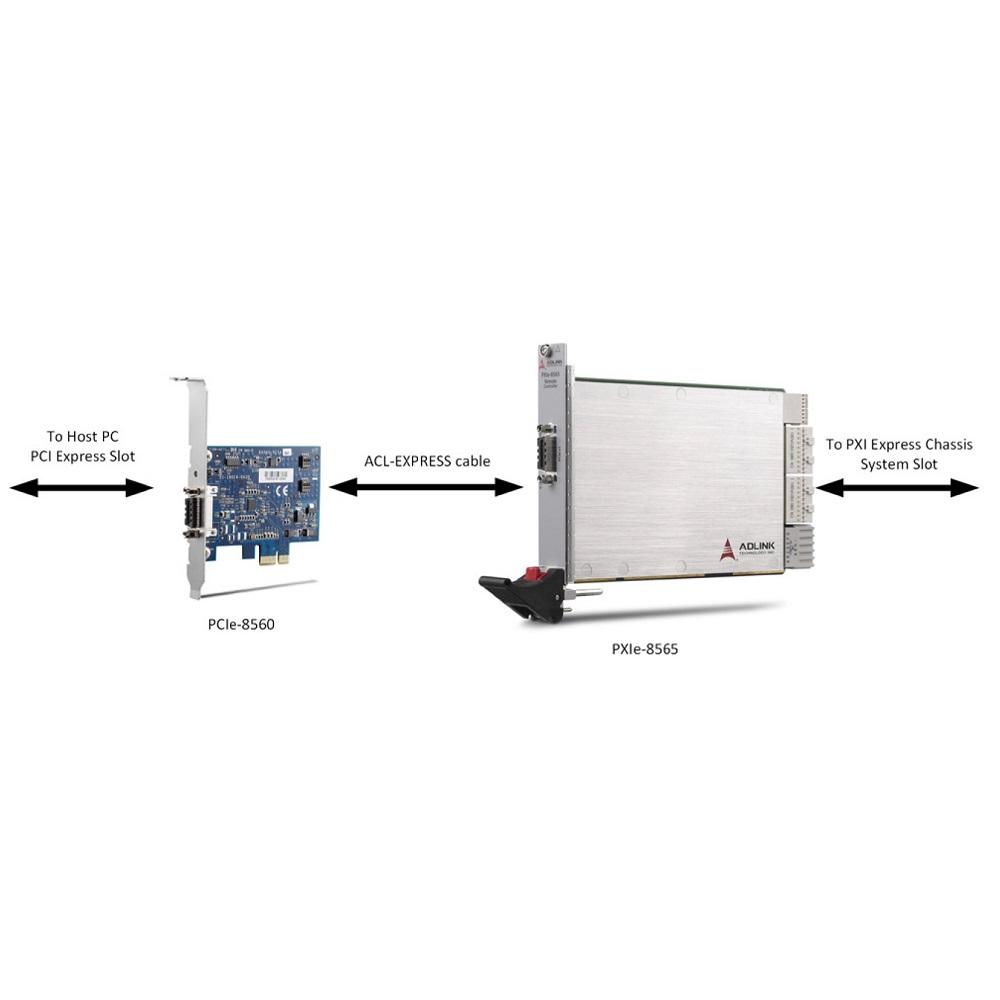

The PCI Express bus to PXI Express chassis expansion kit consists of the PCIe-8560 peripheral card, the PXIe-8565 3U system module, and the ACL-EXPRESS cable, which is available in various lengths. The PCIe-PXIe-8565 PCI Express-to-PXI expansion kit enables control of PXI modules installed in a PXI expansion system using PCI Express technology. ADLINK's expansion kit acts as a PCI Express switch that supports comprehensive PCI Express hardware and software visibility between a host PC and a PXI Express chassis with bandwidths of up to 250 MB/s via PCIe x1 Gen1 signaling. As a result, the expansion kit enables fast and convenient detection of all installed PXI cards in the expansion system without the need to install additional drivers or software. The PCI Express-to-PXI expansion kit consists of a PCIe-8560 card installed in the host computer, up to seven meters of shielded twisted copper cable, and the 3U PXI-8565 expansion module. The PCI Express to PXI expansion kit is suitable for industrial remote control or automation and is designed to withstand rugged environments and harsh operating conditions.
