PP B76/msd and PP B84/m3d 6U CompactPCI Intel Xeon E or Core i3 CPU Board with up to 32 GB RAM and 3 independent Graphics Interfaces

Intel Xeon E or Core i3 CPU Board with up to four Gigabit Ethernet ports and two PMX/XMC slots. The boards are available with a six core up to 2.7 GHz Xeon E-2176M CPU or a four core 1.6 GHz Core i3-9100HL processor. Up to 32 GB ECC DDR4 SDRAM are soldered on the board.

The Concurrent Technologies PP B76/msd and PP B84/m3d series offer two 32/64 bit 33/66/100 MHz PMC/XMC slots. The XMC slots support PCIe x8. Furthermore two DisplayPorts, opt. one DVI-D, up to four Gigabit Ethernet ports, up to three RS-232 ports, up to 11 USB 2.0 ports, up to two USB 3.1 ports, up to four SATA ports, HD audio, and one M.2 site. The graphics interfaces supports DirectX 12 and OpenGL 4.5. Optional 15 GPIO ports are available and a 2.5" HDD/SSD can be mounted.

Board Support Packages are available for LINUX, Windows and VxWorks.

ORDER NOW

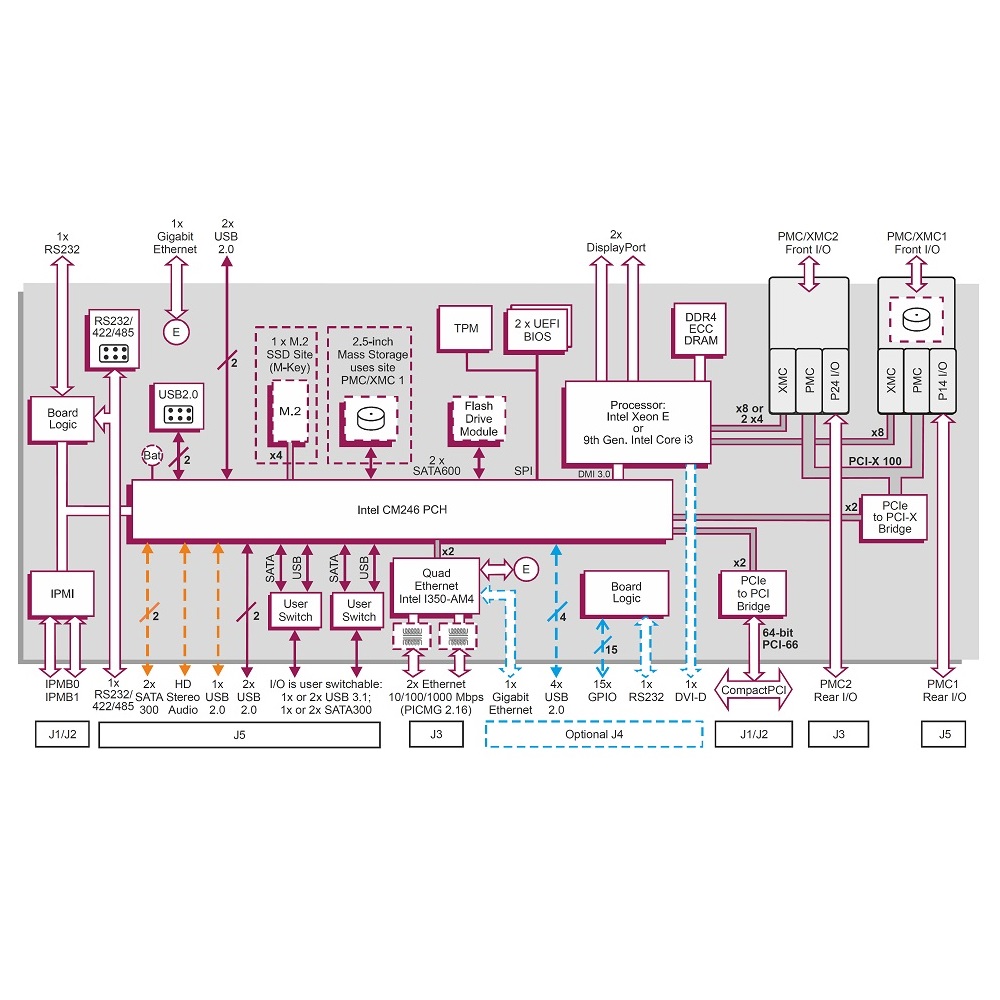

Technical Description

proimg1
  • 6U 4HP universal-slot CPU board, PICMG 2.0 R 3.0, PICMG 2.1 R 2.0, PICMG 2.9 R 1.0, 32/64-bit/33/66 MHz cPCI bus interface
  • Opt. Satellite Mode
  • Six Core 2.7 GHz Intel Xeon E-2176M CPU, 12 MB cache or
    six Core 2.2 GHz Intel Xeon E-2176M CPU, 12 MB cache or
    six Core 2.0 GHz Intel Xeon E-2176M CPU, 12 MB cache or
    four Core 1.6 GHz Intel Core i3-9100HL CPU, 6 MB cache
  • 16 or 32 GB ECC DDR4 SDRAM
  • Intel CM246 controller
  • Dual BIOS SPI Flash EPROM
  • Up to three independent graphics interfaces, 2 DisplayPorts on the front panel, opt. one DVI-D port via J4, 1920×1200 pixel resolution, Intel UHD graphics 630 in chipset integrated, DirectX 12, OpenGL 4.5 and OpenCL 2.1 support
  • 2 PMC/XMC sites, 32/64bit, 33/66/100 MHz, 3.3/5Vio, front IO, rear IO via J3 and J5, XMC site with PCIe x8 Gen1 and Gen2 (and opt. Gen 3) port
  • Up to four Gigabit Ethernet ports, 1 front panel port, 2 PICMG 2.16 R1.0 ports via J3, opt. 1 port via J4, Intel i350-AM4 controller
  • Up to three RS-232 ports, one front panel port via 60-way connector, one RS-232/422/485 port via J5 or onboard and opt. one RS-232 port via J4;
    J5 and opt. J4 with CTS, RTS, DTR, DSR, DCD, RI, Rx, Tx support
  • Up to four SATA ports via J5, 2 SATA 3Gbit/s and up to 2 additional SATA 3Gbit/s ports (or two USB 3.1 ports)
  • M.2 SSD site: 2242, 2260 and 2280 devices are supported, PCIe x4 interface (M-key), NVM Express (NVMe) logical interface
  • 2 SATA 6Gbit/s ports for opt. onboard SATA flash drive and opt. onboard 2.5″ HDD/SSD, uses PMC/XMC site 1
  • Up to 11 USB 2.0 ports, 2 front panel ports via 60-way connector, 2 ports via onboard header, opt. 4 ports via J4 and opt. 2 or 3 ports via J5 (build option 1)
  • Up to two USB 3.1 ports via J5 (or 2 SATA 3 Gbit/s ports)
  • Opt. 15 GPIO ports via J4
  • Two DisplayPorts, one RS-232 port, 2 USB 2.0 ports, one Gigabit Ethernet port and two PMC/XMC sites in the front panel
  • Intel High Definition digital audio via J5 (build option 1), Line-out via J3, opt. CoDec via RTM
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. Fast Boot solution using the Intel Firmware Support Package (FSP)
  • Watchdog, real time clock and 32bit timer
  • Trusted Platform Module (TPM 2.0)
  • In 4 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), (-40°C .. +70°C), and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

PPB76/m4d-yz

6U/4HP CompactPCI CPU board, 2.7 GHz Intel Xeon processor

PPB76/m3d-yz

6U/4HP CompactPCI CPU board, 2.2 GHz Intel Xeon processor

PPB76/m2d-yz

6U/4HP CompactPCI CPU board, 2.0 GHz Intel Xeon processor

PPB84/m3d-yz

6U/4HP CompactPCI CPU board, Intel Core i3 processor

m

Front panel type

d

Up to 32 GB RAM

yz

Rear I/O configuration

Technical Documentation

PPB8x/msd-DS

PPB8x/msd data sheet
