PP F84/m3d 6U CompactPCI Core i3 Gen 9 CPU Board with 16 GB RAM, 4 GbE Ports and 2 PMC/XMC Slots

Core i3 6U CompactPCI CPU board with 4 GbE ports and two PMC/XMC slots. The board provides a 4-core 1.6 GHz Core i3-9100HL processor with 16GB soldered ECC DDR4 SDRAM.

The Concurrent Technologies PP F84/m3d offers two 32/64-bit 33/66/100 MHz PMC/XMC slots. The XMC slots support PCIe x8. In addition, the board has 4 GbE, one RS-232, one USB 2.0 and one M.2 SSD slot. On the front panel, there are two GbE, one RS-232 and one USB 2.0 port as well as the two PMC/XMC slots.

The board supports Linux.

ORDER NOW

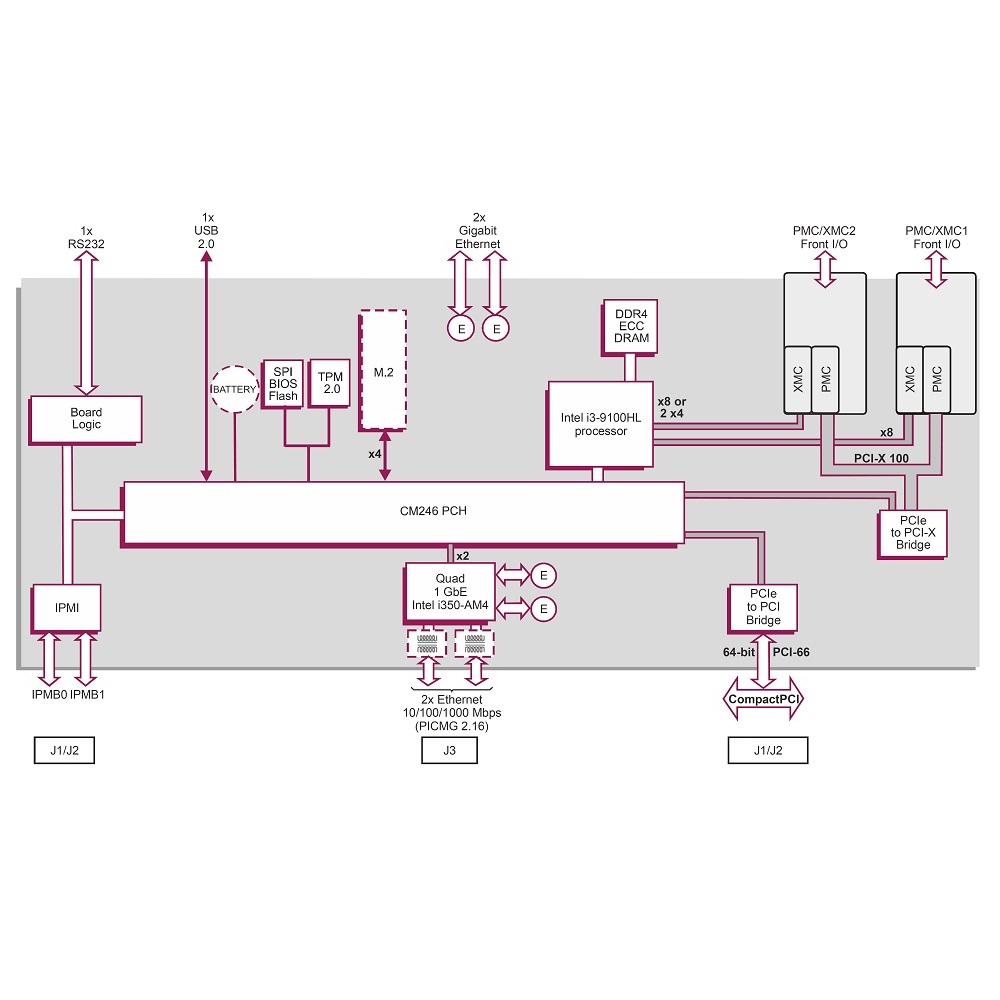

Technical Description

proimg1
  • 6U 4HP universal slot CPU board, PICMG 2.0 R3.0, PICMG 2.1 R2.0, PICMG 2.9 R1.0, 32/64-bit/33/66 MHz cPCI bus interface
  • Opt. satellite mode
  • 4-core 1.6 GHz Intel Core i3-9100HL CPU, 6 MB cache
  • 16GB ECC DDR4 SDRAM
  • Intel CM246 Controller
  • 2 BIOS SPI Flash EPROMs
  • 2 PMC/XMC slots, 32/64-bit, 33/66/100 MHz, 3.3/5Vio, front I/O, XMC slot with PCIe x8 Gen1 and Gen2 (and opt. Gen 3) port
  • Four GbE ports, 2 front panel ports, 2 PICMG 2.16 R1.0 ports via J3, Intel i350-AM4 controller
  • One RS-232 front panel port with Tx/Rx signal lines
  • M.2 SSD slot: 2230, 2242, 2260 and 2280 module formats supported, PCIe x4 interface (M-key), NVM Express (NVMe) logical interface, NVMe 1.3 compatible
  • Two Gigabit Ethernet ports, one RS-232 port, one USB 2.0 port and two PMC/XMC slots on the front panel
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard
  • Watchdog timer, real-time clock and 32-bit counter
  • Trusted Platform Module (TPM 2.0)
  • 0°C … 55°C operating temperature range
  • 2 years warranty

Order Information

PP_F84/m3d

6U CPCI CPU Board, 4 Core 1.6 GHz Core i3-9100HL

Technical Documentation

PP_F84/m3d-DS

PP F84/m3d Data Sheet
