PXIe-39×7

3U PXIe Controller with Intel Core i7/i5/i3 Processor and 2 Graphics Interfaces

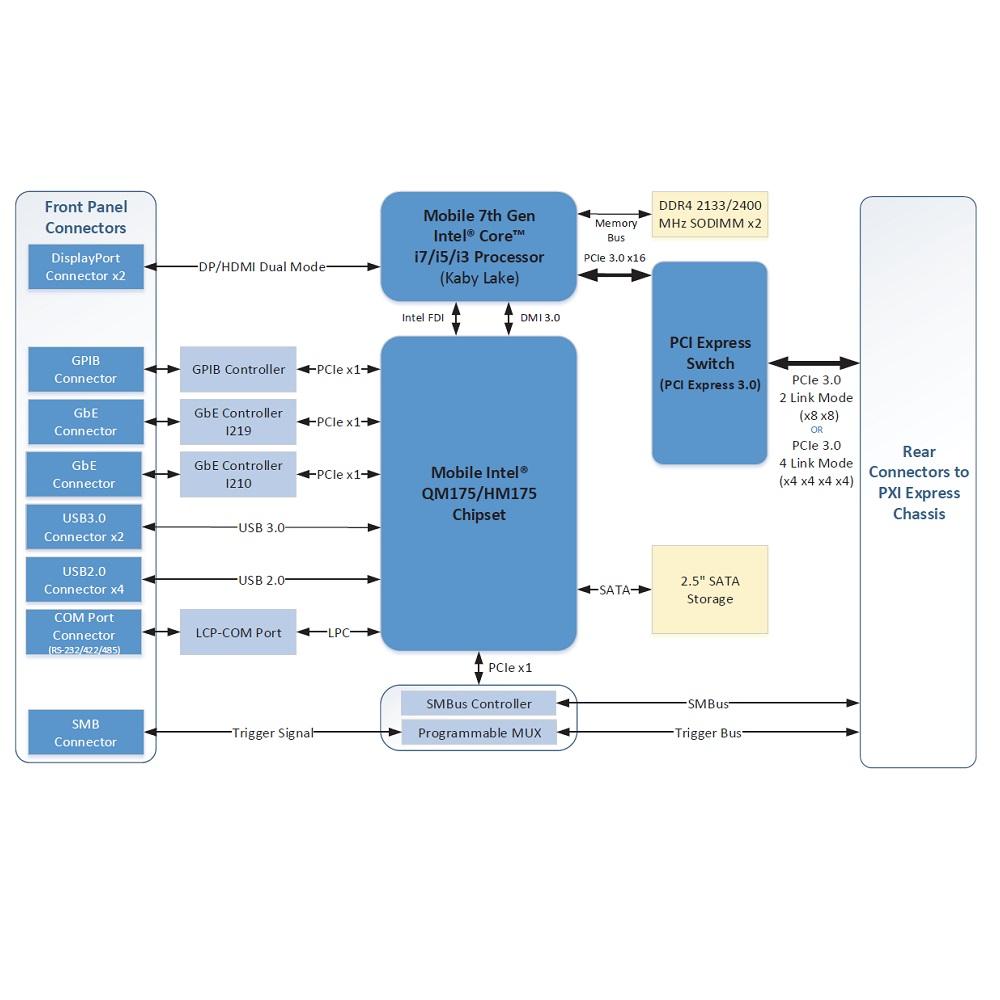

3U/4-slot embedded controller for PXI Express platforms. The controllers feature a 7th generation 4-core 3.0 GHz (3.7 GHz Turbo Boost) Intel Core-i7-7820EQ processor or a 4-core 2.9 GHz (3.6 GHz Turbo Boost) Intel Core-i5-7740EQ processor or a 2-core 2.9 GHz Intel Core-i3-7100EQ processor. The Intel Mobil QM175/HM175S chipset provides up to 32 GB of DDR4 memory. System bandwidth is up to 16GB/s with PCIe 3.0 and can be configured as 2-link mode with x8 x8 and 4-link mode with x4 x4 x4. ADLINK Technology's PXIe-3987/3977/3937 controllers offer two Gigabit Ethernet front panel ports, two DisplayPorts on the front panel with up to 3840x2160 pixel resolution, one SATA 6.0 Gb/s port with a 2. 5" SSD, 2 USB 3.0 front panel ports, 4 USB 2.0 front panel ports, RS-232/422/485 D-SUB9 front panel port, trigger I/O with front panel SMB connector and a Micro-D 25-pin GPIB connector. One GbE port is for LAN connection and the other for LXI instrument control. The SMB port allows an external trigger signal to be routed to/from the PXI trigger bus, and the Micro-D GPIB connector for connecting GPIB instruments is for controlling hybrid PXI-based test systems.

The controllers are available with 0°C to +55°C operating temperature range and Microsoft Windows 10 64-bit.
