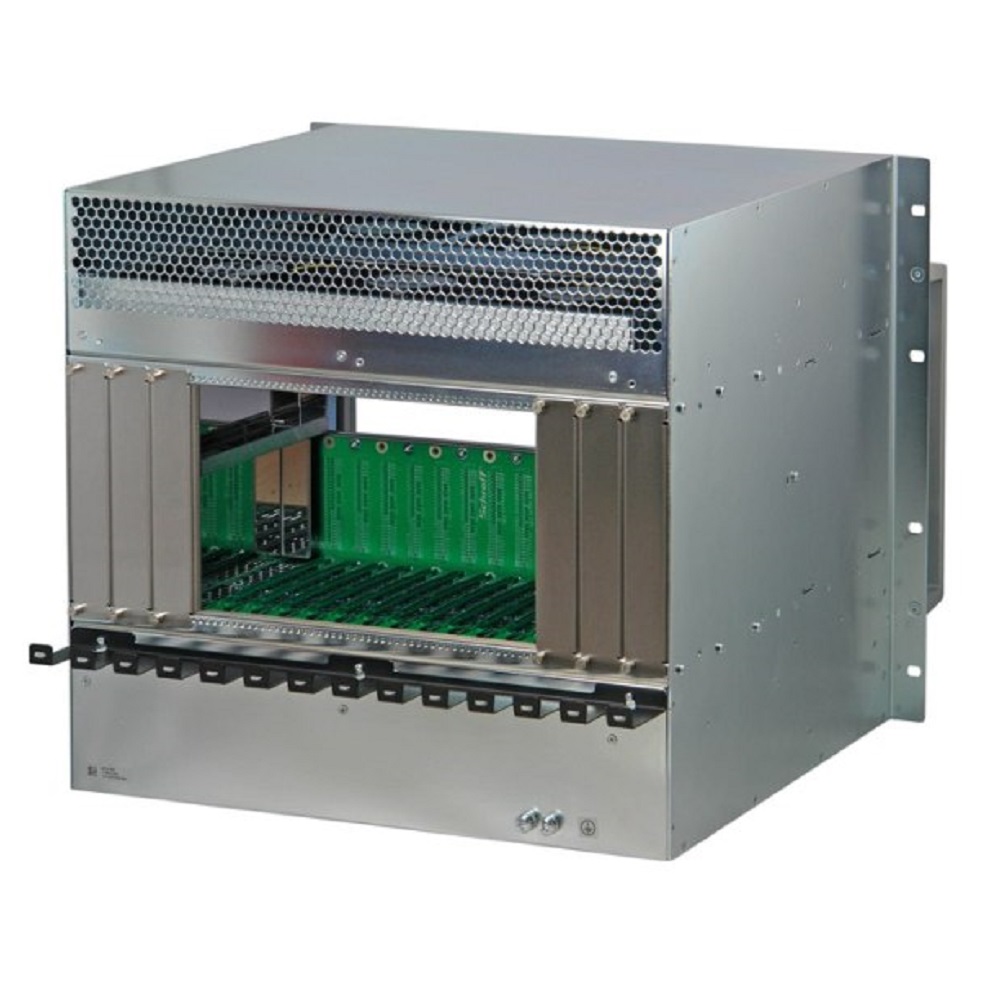

RackPak/M12-41 MicroTCA.4 Chassis with RTM Slots

12 double mid size AMC slots and 12 double mid size rear transition module slots. It is compliant to the xTCA specification PICMG Physics WG1. The system has two MCH slots and four power module slots. The one dust filter is exchangeable from the front.

The Schroff 9U MicroTCA.4™ chassis has two redundant hot-swap fan trays for high-precision AMC cooling and RTM cooling. The speed of the fans is separate adjustable for the front and rear.

ORDER NOW

Technical Description

proimg1
  • 9U MicroTCA.4 system, front handles, PICMG MicroTCA R1.0 and PICMG MTCA.4 R1.0 compliant
  • 12 double mid size AMC slots
  • 12 double mid size Rear Transition Module slots
  • 2 MCH slots
  • 4 power module slots
  • 2 redundant hot-swap fan trays
  • One dust filter, exchangeable
  • System depth: 373.30 mm
  • Operating temperature range -5 .. +45°C
  • 2 years warranty

Order Information

RackPak/M12-41

MTCA.4 system with 12 double mid-size AMC slots and 12 double mid-size RTM slots

21850-106

Double mid-size Front Panel, screw-in

21850-108

Double mid-size RTM Filler Module, screw-in

AM G64/471

Processor AMC Module Quad Core 3.0 GHz Xeon E3-1505M v6, 16GB RAM, double mid size

NAT-MCH-PHYS

NAT-MCH, 16 GbE, PCIe x4, special physics clock module, double full-size

NAT-MCH-PHYS80

NAT-MCH, 16 GbE, PCIe x4, 80 PCIe Links, special physics clock module, double full-size

NAT-MCH-202201

MCH with GbE and PCIe x4 for 12 AMC modules

W-IE-NE-R-1000W

1000W AC power module
