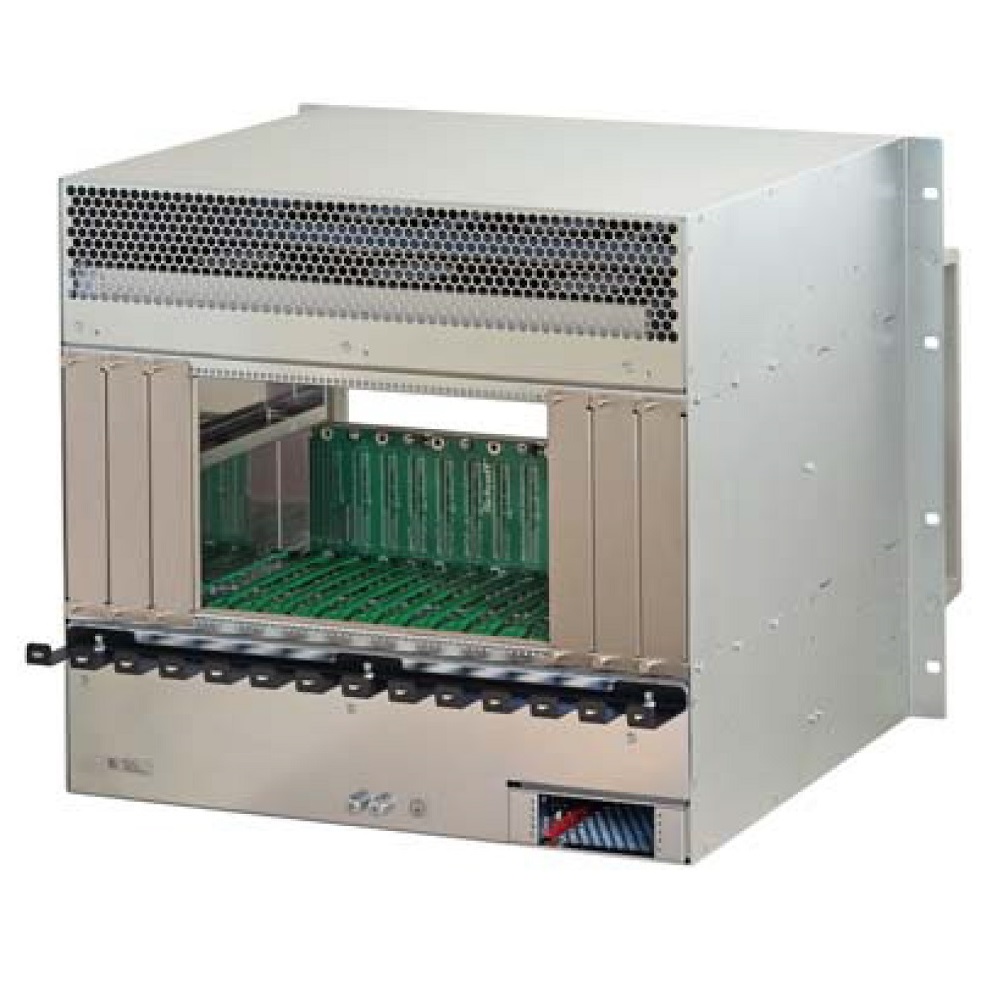

RackPak/M12-42 19" MicroTCA.4 Chassis with JSM Slot

12 double mid size AMC slots and 12 double mid size rear transition module slots as well as a JSM slot for a JTAG switch module. The Schroff 9U MicroTCA.4™ chassis is redundant and has two MCH slots and four power module slots. The dust filter is replaceable on the front. The backplane has clock and trigger lines and complies with the xTCA specification PICMG MTCA.4 R1.0. In addition, it has direct connections for SAS / SATA and lines between the AMCs and supports White Rabbit for deterministic Ethernet.

The System has two redundant hot swap fan trays for high-precision AMC cooling and RTM cooling. The speed of the fans is separate adjustable for the front and rear.

ORDER NOW

Technical Description

proimg1
  • 9U MicroTCA.4 system, front handles, PICMG MicroTCA R1.0 and PICMG MTCA.4 R1.0 compliant
  • 12 double mid size AMC slots
  • 12 double mid size Rear Transition Module slots
  • 1 JTAG switch module (JSM) slot
  • 2 MCH slots
  • 4 power module slots
  • White Rabbit support
  • Hot swap fan units with cooling unit manager (CU EMMC)
  • Front bottom to rear top air flow
  • One dust filter, exchangeable

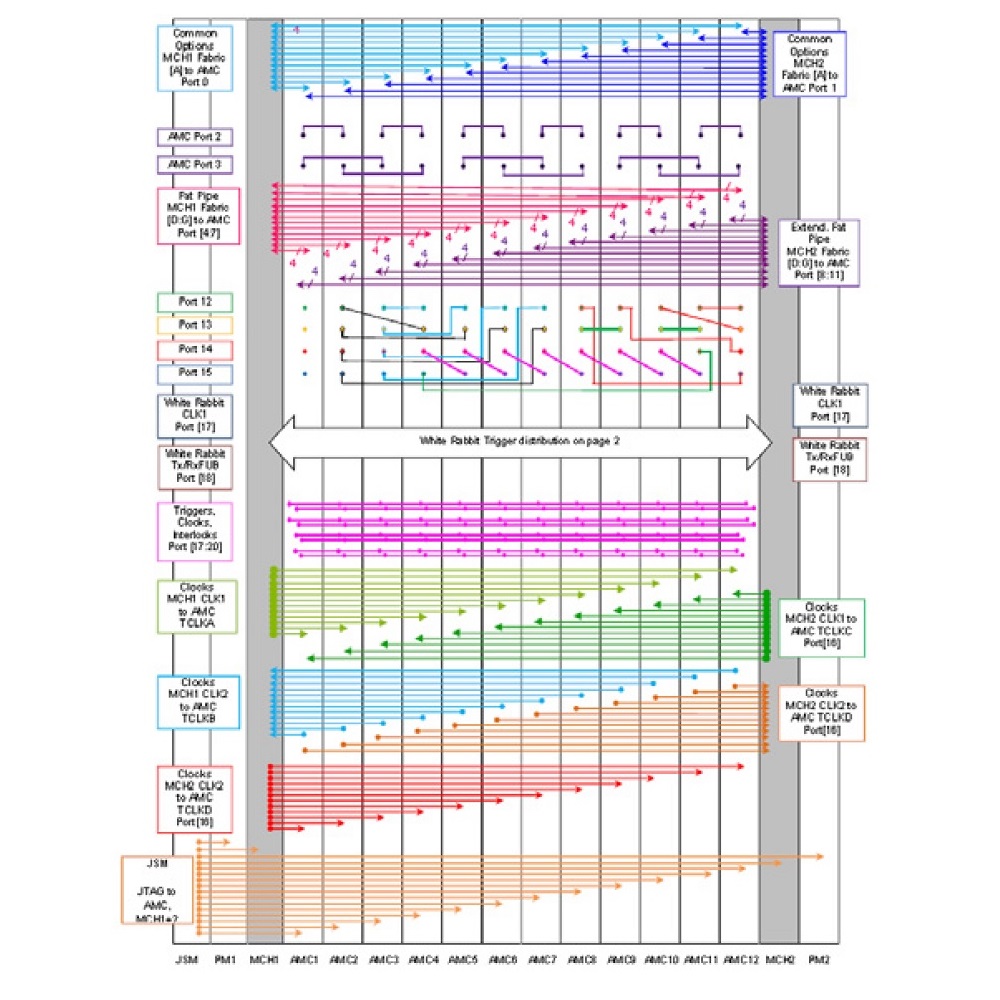

  • MTCA.4 backplane with Dual-Star topology and direct connections for SATA/SAS
  • Fan speed for front and rear range separately adjustable via the MCH
  • System depth: 373.30 mm
  • Operating temperature range -5 .. +45°C
  • 2 years warranty

Order Information

RackPak/M12-42

MTCA.4 system with 12 double mid-size AMC slots and 12 RTM slots, JSM slot, White Rabbit

21850-106

Double mid-size Front Panel, screw-in

21850-108

Double mid-size RTM Filler Module, screw-in

AM G64/471

Processor AMC Module Quad Core 3.0 GHz Xeon E3-1505M v6, 16GB RAM, double mid size

NAT-MCH-PHYS

NAT-MCH, 16 GbE, PCIe x4, special physics clock module, double full-size

NAT-MCH-PHYS80

NAT-MCH, 16 GbE, PCIe x4, 80 PCIe Links, special physics clock module, double full-size

NAT-MCH-202201

MCH with GbE and PCIe x4 for 12 AMC modules

W-IE-NE-R-1000W

1000W AC power module

Technical Documentation

RackPak/M12-42-DS

RackPak/M12-42 Data Sheet
