RackPak/M2-01 1U 2 Slot MTCA Crate with integrated eMCH

Closed 1U rack offering two full size or two mid-size AMC slots and an integrated eMCH (embedded MicroTCA Carrier Hub). The eMCH of the Pentair RackPak/M2-01 MTCA crate comes with basic MicroTCA functionality for switching and managing two AMCs. Each AMC slot is connected to the MCH with two GbE links. The direct connection of ports 2 to 11 between both AMC slots provides data rates up to 10 Gbps per port.

The crate has an integrated 150W AC power supply with wide range AC input and 12V DC output. The fan speed can be adjusted via the MCH. The crate is available with right to left air flow. It is stackable and ready for a mounting plate.

The product is end of life. If you have any questions, please contact us.

ORDER NOW

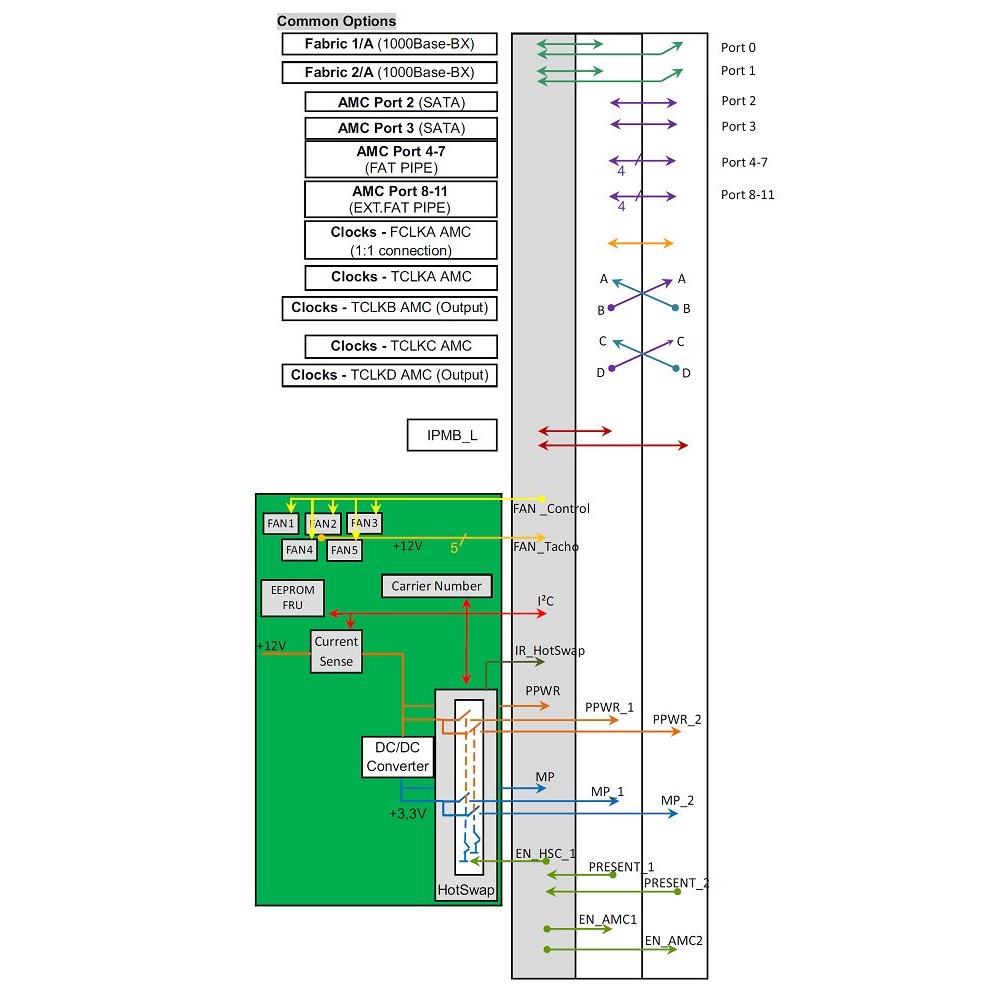

Technical Description

proimg1
  • 1U MTCA crate
  • 2 full-size or mid-size AMC slots
  • Integrated MCH with Ethernet uplink and USB interface
  • Each 2 GbE links from MCH to the 2 AMC slots
  • Direct connection of ports 2 to 11 between both AMC slots, data transfer rates up to 10 Gbps per port
  • Integrated 150W AC power supply with wide range AC input and 12V DC output
  • Cooling unit with right to left air flow
  • Fan unit and air filter easy exchangeable
  • Dimensions: 302 mm (depth) x 265 mm (width)
  • 2 years warranty

Order Information

RackPak/M2-01

1U MTCA crate, cooling unit, right to left air flow

AM F54/371

Processor AMC module, Quad Core 2.8 GHz Intel Xeon E3-1505M, 16 GB RAM, mid size

Technical Documentation

RackPak/M2-01-UM

RackPak/M2-01 User Manual
