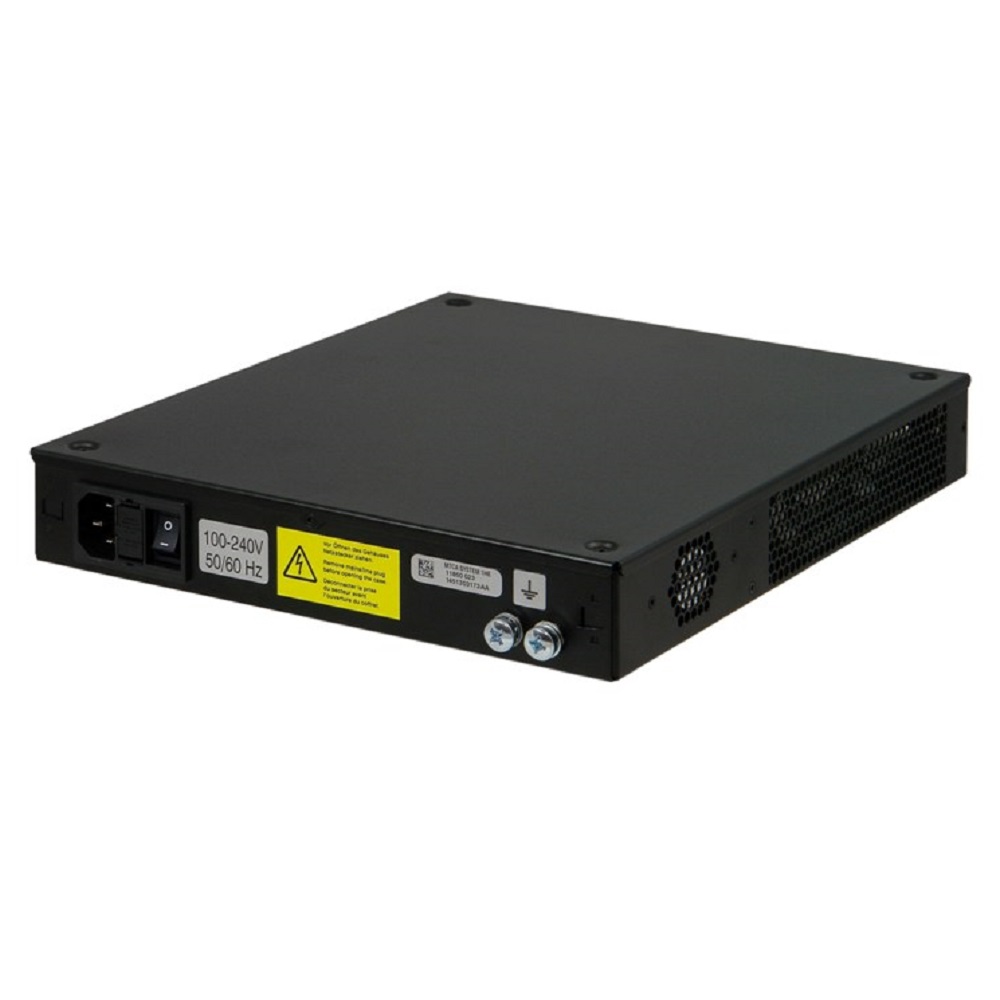

RackPak/M2-02 1U AdvancedMC Mini System for 2 AdvancedMC Modules

Closed 1U rack offering two full size or two mid-size AMC slots. The direct connection of all ports (0 to 20) between both AMC slots provides data rates up to 10 Gbps per port.

The Pentair RackPak/M2-02 MTCA crate has an integrated 150W AC power supply with wide range AC input and 12V DC output. The fan speed can be adjusted. The 12V DC voltage is connected via the AdvancedMC module presence signal. The crate is available with right to left air flow. It is stackable and ready for a mounting plate.

ORDER NOW

Technical Description

proimg1
  • 1U AdvancedMC Mini crate
  • 2 full-size or mid-size AMC slots

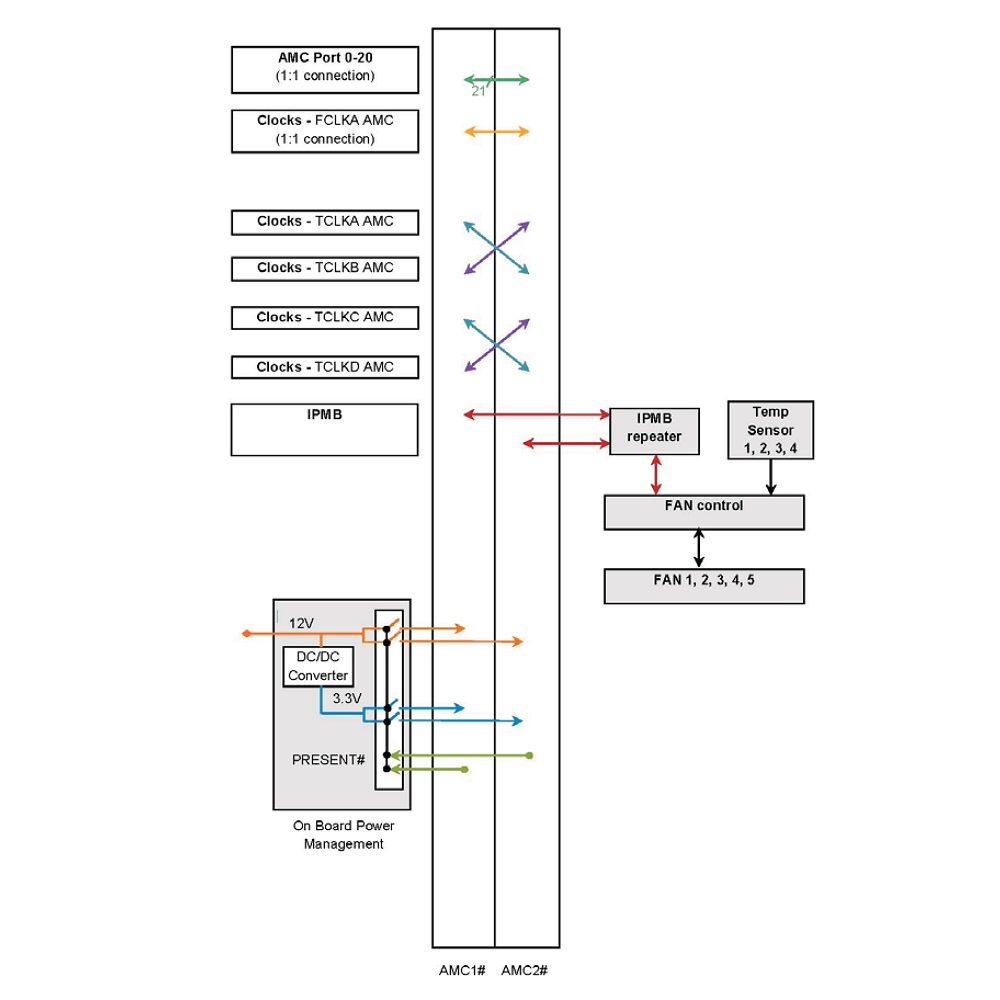

  • Direct connection of port 0 to 20 and FCLK, cross connects for TCLK A-D between both AMC slots, data transfer rates up to 10 Gbps per port
  • Integrated 150W AC power supply with wide range AC input and 12V DC output
  • 12V DC voltage is connected via the AdvancedMC module presence signal
  • Cooling unit with right to left air flow
  • Fan unit and air filter easy exchangeable
  • Dimensions: 302 mm (depth) x 252 mm (width)
  • 2 years warranty

Order Information

RackPak/M2-02

1U AdvancedMC Mini Crate, cooling unit, right to left air flow

Technical Documentation

RackPak/M2-02-DS

RackPak/M2-02 Data Sheet

RackPak/M2-02-UM

RackPak/M2-02 User Manual
