SY TR1/523 Development Chassis with 3 3U VPX Slots

VPX development system with three 3U VPX slots. It has one CPU board slot and two slots for IO boards. The backplane of CONCURRENT Technologies' SY TR1/523 is OpenVPX VITA 65 compliant. The chassis has an included VITA 46.11 chassis manager and is suitable for applications in transportation and defence.

The SY TR1/523 is available in three different versions. The SY TR1/523-31 version comes with the 2.4 GHz Intel Core i7-4700EQ CPU board TR B12/533-15, the SY TR1/523-32 version provides the 1.91 GHz Intel Atom E3845 CPU board TR D24/512-17, the SY TR1/523-33 will be delivered with the 2.8 GHz Intel Xeon E3-1505M v5 CPU board TR E54/571-25, and the SY TR1/523-71 will be delivered with the 2.0 GHz Intel Xeon D-1548 CPU board TR C48/582-15. Additional the 64GB SATA flash module AD 231/104-22, the rear transition module AD TR1/509-10, the front panel module AD EN1/103-10 and a 250W power supply is mounted in all versions.

The system supports Linux, Windows and VxWorks.

The product is end of life on 15.12.2022. If you have any questions, please contact us.

ORDER NOW

Technical Description

proimg1
  • Development system for 3U VPX boards

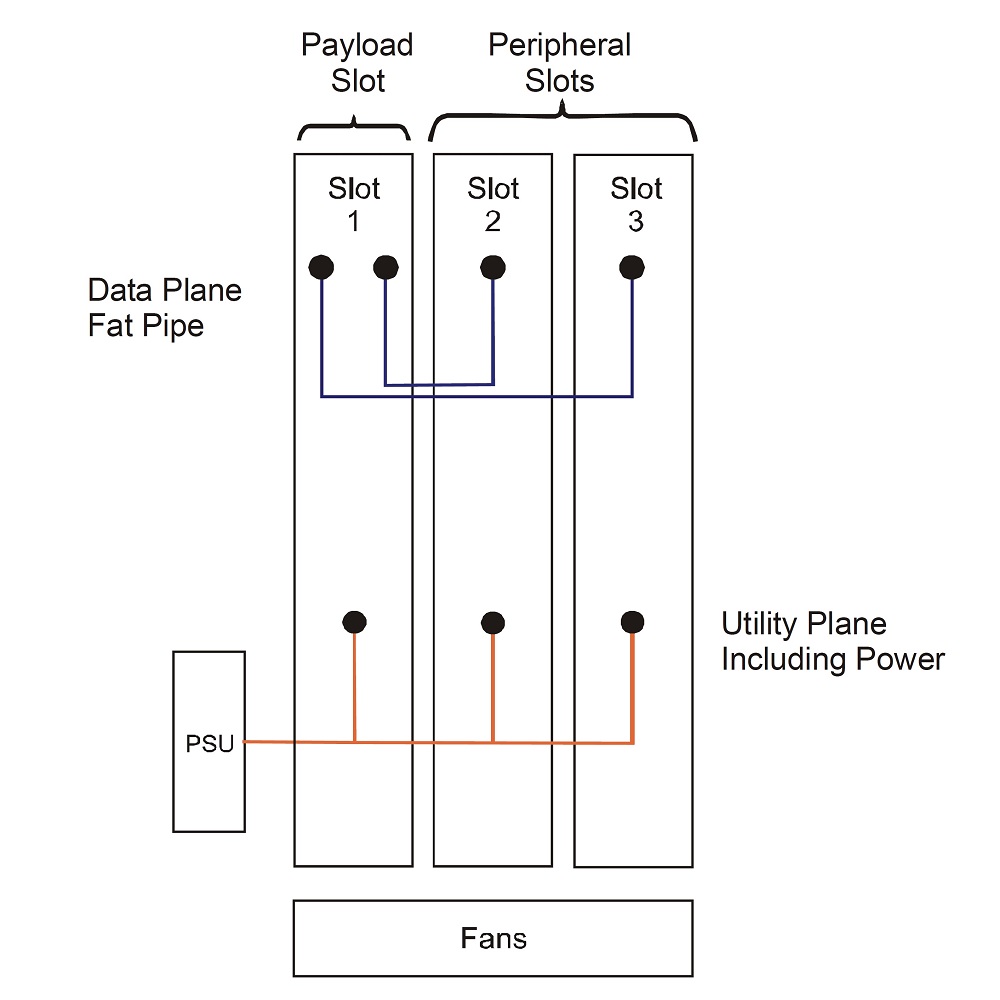

  • Backplane with three 3U VPX slots
  • 1 CPU board slot (SLT3-PAY-2F-14.2.7)
  • 2 I/O board slots (SLT3-PER-1F-14.3.2)
  • OpenVPX VITA 65 backplane (BKP3-CEN03-15.2.9-3)
  • SY TR1/523-31: 4-Core 2.4 GHz Intel Core i7-4700EQ CPU, 16GB RAM
    • One GbE, one USB 3.0, up to three RS-232 and one DisplayPort in the front panel or XMC front I/O
    • 3 independent graphics interfaces
    • Opt. XMC module
  • SY TR1/523-32: 4-Core 1.91 GHz Intel Atom E3845 CPU, 4GB RAM
    • One GbE, one VGA, one USB 2.0 and one front panel RS-232 port or XMC Front-I/O
    • Opt. CANbus high-speed interface via P2
    • Opt. XMC module
  • SY TR1/523-33: 4-Core 2.8 GHz Intel Xeon E3-1505M v5 CPU, 16GB RAM
    • One GbE, one USB 3.0, up to three RS-232 and one DisplayPort in the front panel or XMC front I/O
    • 3 independent graphics interfaces
    • Opt. XMC module
  • SY TR1/523-71: 8-Core 2.0 GHz Intel Xeon D-1548 CPU, 32GB RAM
    • Up to two GbE, one USB 3.0, up to three RS-232 and opt. one VGA front panel port
    • Two 10Gigabit Ethernet ports via P1
    • Up to 4 Gigabit Ethernet ports
    • Up to  6 SATA 6Gbit/s ports
  • 64GB SATA flash module (AD 231/104-22)
  • Rear transition module (AD TR1/509-10)
  • Front panel module (AD EN1/103-10)
  • Opt. PMC/XMC carrier module (TR XMC/501)
  • VITA 46.11 chassis manager
  • 5HP (1.0-inch) VITA 65 backplane slot pitch supports 0.8-inch and 1.0-inch
  • 250W power unit
  • Cooling from bottom to the top of the system, adjustable cooling fan speed
  • 5 .. 40°C operating temperature range
  • 2 years warranty

Order Information

SY_TR1/523-31

3 Slot 3U VPX development system (PCIe Gen3 data plane) with 4 Core 2.4 GHz Intel Core i7-4700EQ and 16 GB RAM CPU Board TR B12/533-15

SY_TR1/523-32

3 Slot 3HE VPX development system (PCIe Gen3 data plane) with 4 Core 1.91 GHz Intel Atom E3845 and 4 GB RAM CPU-Board TR D24/512-17

SY_TR1/523-33

3 Slot 3HE VPX development system (PCIe Gen3 data plane) with 4 Core 2.8 GHz Intel Xeon E3-1505M v5 and 16 GB RAM CPU-Board TR E54/571-25

SY_TR1/523-71

3 Slot 3HE VPX development system (Ethernet data plane) with 8 Core 2.0 GHz Intel Xeon D-1548 and 32 GB RAM CPU-Board TR C48/582-15

TR_XMC/501-10

3U VPX PMC/XMC carrier board with 64-bit rear I/O via PMC Pn4

TR_XMC/501-20

3U VPX PMC/XMC carrier board with 64-bit rear I/O via XMC Pn6

Technical Documentation

SY TR1/523-DS

SY TR1/523 Data Sheet
