SY TR1/527 Development Chassis with 7 3U VPX Slots

VPX development system with seven 3U VPX slots. It has one Fabric Switch board slot and six slots for IO boards. The backplane is OpenVPX VITA 65 compliant. The chassis has an included VITA 46.11 chassis manager and is suitable for applications in transportation and defence.

CONCURRENT Technologies' SY TR1/527 is available in nine different versions. The SY TR1/527-01 version comes with the PCIe x4 and Gigabit Ethernet switch FR 331/506-11, the SY TR1/526-02 version provides the PCIe x4 and Gigabit Ethernet switch FR 341/506-10, and the SY TR1/526-03 version offer the 10Gigabit Ethernet and Gigabit Ethernet switch FR 351/506-10. The SY TR1/527-31 contains the PCIe x4 und Gigabit Ethernet switch FR 331/506-11, das 4-Core 2.4 GHz Intel Core i7-4700EQ CPU board TR B12/533-15, one 64GB SATA flash module and the rear transition module AD TR1/507-20, the SY TR1/527-32 contains the PCIe x4 and Gigabit Ethernet switch FR 331/506-11, the 4-Core 1.91 GHz Intel Atom E3845 CPU board TR D24/512-17, one 64GB SATA flash module and the rear transition module AD TR1/508-23. The versions SY TR1/527-33 and SY TR1/527-034 are identical with the versions SY TR1/527-31 and SY TR1/527-032 except for the switch. In the -33 and -34 versions is the PCIe x4 and Gigabit Ethernet switch FR 341/506-10 implemented. This switch is also in the SY TR1/527-35 and also the 4-Core 2.8 GHz Intel Xeon E3-1505M v5 CPU board TR E54/571-25, one 64GB SATA flash module and the rear transition module AD TR1/510-22. The SY TR1/527-71 contains the 10Gigabit Ethernet and Gigabit Ethernet switch FR 351/506-10, the 8-Core 2.0 GHz Intel Xeon D-1548 CPU board TR C48/582-15, one 64GB SATA flash module, the rear transition module AD TR1/509-10 and the front panel module AD EN1/103-10. Additional a 650W power supply is mounted in all versions.

The system supports Linux, Windows and VxWorks.

The product is end of life. The SY TR1/527 can still be ordered until December 15th, 2022. If you have any questions, please contact us.

ORDER NOW

Technical Description

proimg1

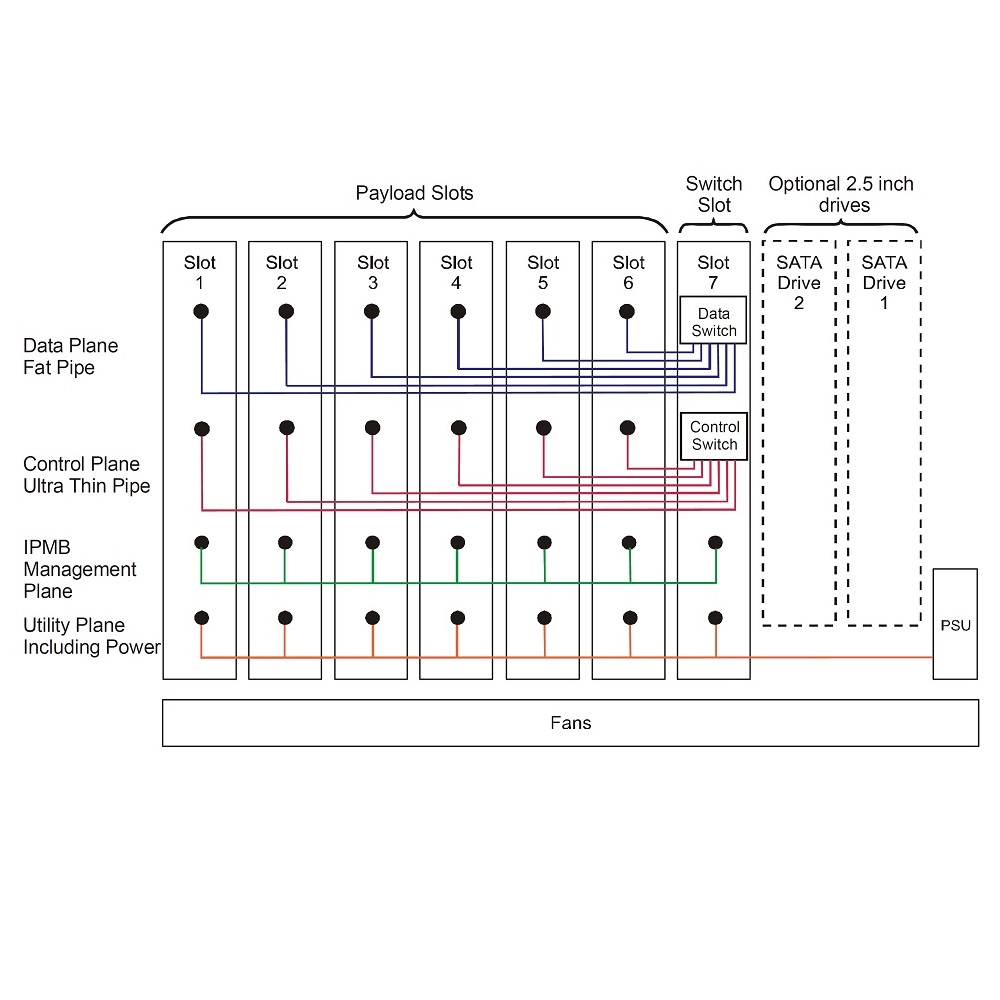

  • Development system for 3U VPX boards
  • Backplane with seven 3U VPX slots
  • 1 fabric switch slot (SLT3-SWH-6F6U-14.4.1)
  • 6 I/O board slots (SLT3-PAY-2F2U-14.3.3)
  • OpenVPX VITA 65 backplane (BKP3-CEN07-15.2.3n)
  • SY TR1/527-01: PCIe x4 and GbE Switch FR 331/506-11, Fabric switch configuration software SW FSC/001
  • SY TR1/527-02: PCIe x4 and GbE Switch FR 351/506-10
  • SY TR1/527-03: 10GbE and GbE Switch FR 351/506-10
  • SY TR1/527-31:
    • PCIe x4 and GbE Switch FR 331/506-11
    • Fabric switch configuration software SW FSC/001
    • 4-Core 2.4 GHz Intel Core i7-4700EQ processor, 16 GB RAM TR B12/533-15
    • 64GB SATA flash module AD 230/104-22
    • Rear transition module AD TR1/507-20
  • SY TR1/527-32:
    • PCIe x4 and GbE Switch FR 331/506-11
    • Fabric switch configuration software SW FSC/001
    • 4-Core 1.91 GHz Intel Atom E3845 processor, 4 GB RAM TR D24/512-17
    • 64GB SATA flash module AD 230/104-22
    • Rear transition module AD TR1/508-23
  • SY TR1/527-33:
    • PCIe x4 and GbE Switch FR 341/506-10
    • 4-Core 2.4 GHz Intel Core i7-4700EQ processor, 16 GB RAM TR B12/533-15
    • 64GB SATA flash module AD 230/104-22
    • Rear transition module AD TR1/507-20
  • SY TR1/527-34:
    • PCIe x4 and GbE Switch FR 341/506-10
    • 4-Core 1.91 GHz Intel Atom E3845 processor, 4 GB RAM TR D24/512-17
    • 64GB SATA flash module AD 230/104-22
    • Rear transition module AD TR1/508-23
  • SY TR1/527-35:
    • PCIe x4 and GbE Switch FR 341/506-10
    • 4-Core 2.8 GHz Intel Xeon E3-1505M v5 processor, 16 GB RAM TR E54/571-25
    • 64GB SATA flash module AD 231/104-22
    • Rear transition module AD TR1/510-22
  • SY TR1/527-71:
    • 10GbE and GbE Switch FR 351/506-10
    • TR C48/582-15: 8-Core 2.0 GHz Intel Xeon D-1548 processor, 32 GB RAM
    • AD 231/104-22: 64GB SATA flash module
    • AD TR1/509-10: Rear transition module
    • Front panel module AD_EN1/103-10
  • Empty 8HP removable mass storage drive carrier cage for either two 2.5″ drives or one 3.5″ drive
  • Opt. PMC/XMC carrier (TR XMC/501)
  • Opt. Fabric Interconnect Networking Software (FIN-S)
  • VITA 46.11 chassis manager
  • 5HP (1.0-inch) VITA 65 backplane slot pitch supports 0.8-inch and 1.0-inch
  • 650W power unit
  • Cooling from bottom to the top of the system, adjustable cooling fan speed
  • 5 .. 40°C operating temperature range
  • 2 years warranty

Order Information

SY_TR1/527-01

7 slot 3U VPX development system (PCIe Gen2 data plane) with FR 331/506-11 PCIe x4, GbE switch, SW FSC/001 fabric switch configuration software

SY_TR1/527-02

7 slot 3U VPX development system (PCIe Gen3 data plane) with FR 341/506-10 PCIe x4, GbE switch

SY_TR1/527-03

7 slot 3U VPX development system with FR 351/506-10 10GbE, GbE switch

SY_TR1/527-31

7 slot 3U VPX development system (PCIe Gen2 data plane) with FR 331/506-11 PCIe x4, GbE switch, SW FSC/001 fabric switch configuration software, TR B12/533-15 4 core 2.4 GHz Intel Core i7-4700EQ CPU, 16 GB RAM, AD 230/104-22 64GB SATA flash module and AD TR1/507-20 RTM

SY_TR1/527-32

7 slot 3U VPX development system (PCIe Gen2 data plane) with FR 331/506-11 PCIe x4, GbE switch, SW FSC/001 fabric switch configuration software, TR D24/512-17 4 core 1.91 GHz Intel Atom E3845 CPU, 4 GB RAM, AD 230/104-22 64GB SATA flash module and AD TR1/508-23 RTM

SY_TR1/527-33

7 slot 3U VPX development system (PCIe Gen3 data plane) with FR 341/506-10 PCIe x4, GbE switch, TR B12/533-15 4 core 2.4 GHz Intel Core i7-4700EQ CPU, 16 GB RAM, AD 230/104-22 64GB SATA flash module and AD TR1/507-20 RTM

SY_TR1/527-34

7 slot 3U VPX development system (PCIe Gen3 data plane) with FR 341/506-10 PCIe x4, GbE switch, TR D24/512-17 4 core 1.91 GHz Intel Atom E3845 CPU, 4 GB RAM, AD 230/104-22 64GB SATA flash module and AD TR1/508-23 RTM

SY_TR1/527-35

7 slot 3U VPX development system (PCIe Gen3 data plane) with FR 341/506-10 PCIe x4, GbE switch, TR E54/571-25 4 core 2.8 GHz Intel Xeon E3-1505M v5 CPU, 16 GB RAM, AD 231/104-22 64GB SATA flash module and AD TR1/510-22 RTM

SY_TR1/527-71

7 slot 3U VPX development system with FR 351/506-10 10GbE, GbE switch, TR C48/582-15 8 core 2.0 GHz Intel Xeon D-1548 CPU, 32 GB RAM, AD 231/104-22 64GB SATA flash module, AD TR1/509-10 RTM, AD EN1/103-10 front panel module

TR_XMC/501-10

3U VPX PMC/XMC carrier board with 64-bit rear I/O via PMC Pn4

TR_XMC/501-20

3U VPX PMC/XMC carrier board with 64-bit rear I/O via XMC Pn6

SW_FNx/0xx

Fabric interconnect networking software (FIN-S)

Technical Documentation

SY TR1/527-DS

SY TR1/527 Data Sheet
