SY TR3/526 6 Slot 3U VPX Development System

VPX development systems with six 3U VPX slots and integrated 300W power supply. A Meritec 6-inch fat pipe cable allows PCIe Gen3 or 10GBASE-KR connections between modules. CONCURRENT Technologies' SY TR3/526 is suitable for applications in transportation and defence.

The SY TR3/526 can be extended with the opt. XMC carrier module TR XMC/511 and the FIN-S software.

The system supports Linux, Windows and VxWorks.

ORDER NOW

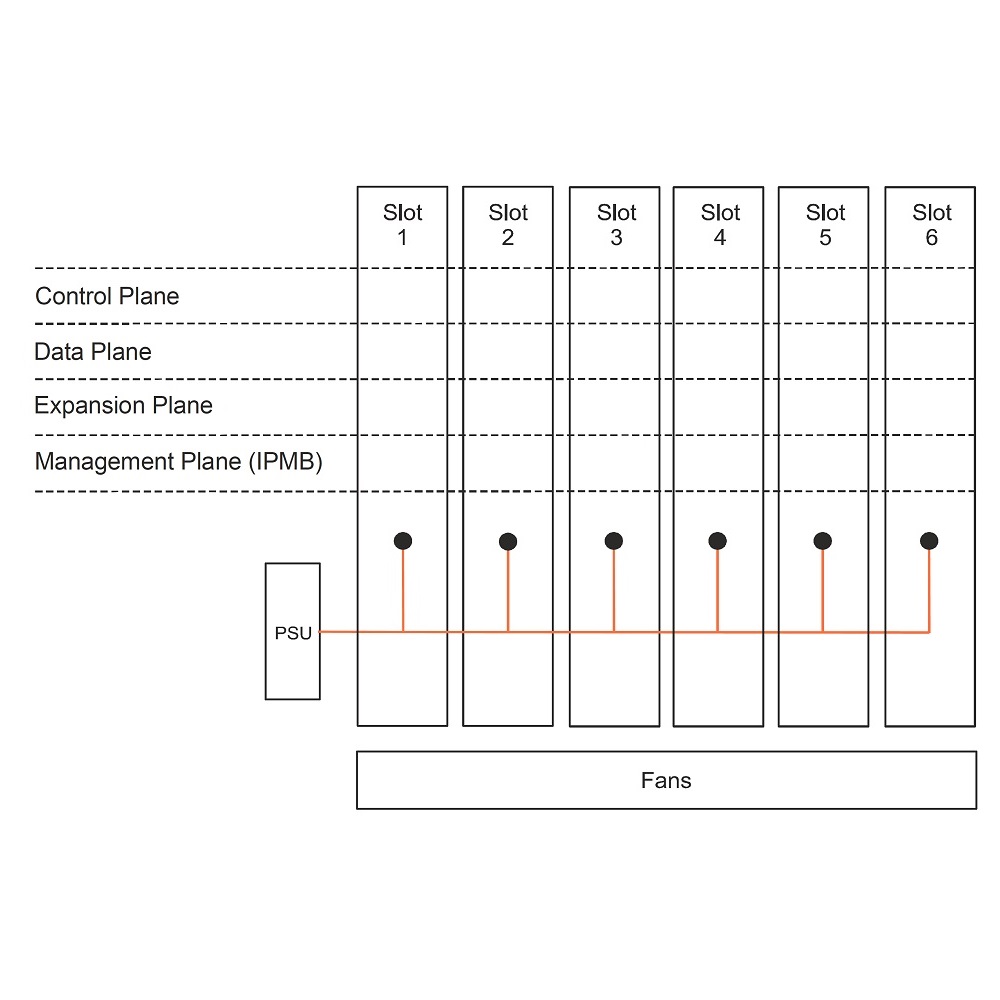

Technical Description

proimg1
  • Development system for 3U VPX boards
  • Backplane with six 3U VPX slots and six RTM slots
  • Meritec 6-inch Fat Pipe cable for connection between modules with PCIe Gen 3 or 10GBASE-KR support
  • 5HP (1.0-inch) backplane slot pitch supports 0.8-inch and 1.0-inch boards
  • 300W power unit
  • Cooling from bottom to the top of the system
  • Opt. XMC carrier (TR XMC/511)
  • Opt. Fabric Interconnect Networking Software (FIN-S)
  • 5 .. 40°C operating temperature range
  • 2 years warranty

Order Information

SY_TR3/526-00

6 slot 3U VPX development system

TR_XMC/511-11

3U VPX PMC/XMC carrier board with VITA 42.0 connector, 5V VPWR

TR_XMC/511-12

3U VPX PMC/XMC carrier board with VITA 42.0 connector, 12V VPWR

TR_XMC/511-51

3U VPX PMC/XMC carrier board with VITA 61 connector, 5V VPWR

TR_XMC/511-52

3U VPX PMC/XMC carrier board with VITA 61 connector, 12V VPWR

SW_FNx/0xx

Fabric interconnect networking software (FIN-S)

Technical Documentation

SY TR3/526-DS

SY TR3/526 Data Sheet
