TP D2x/msd 3U CPU board with extended temperature range

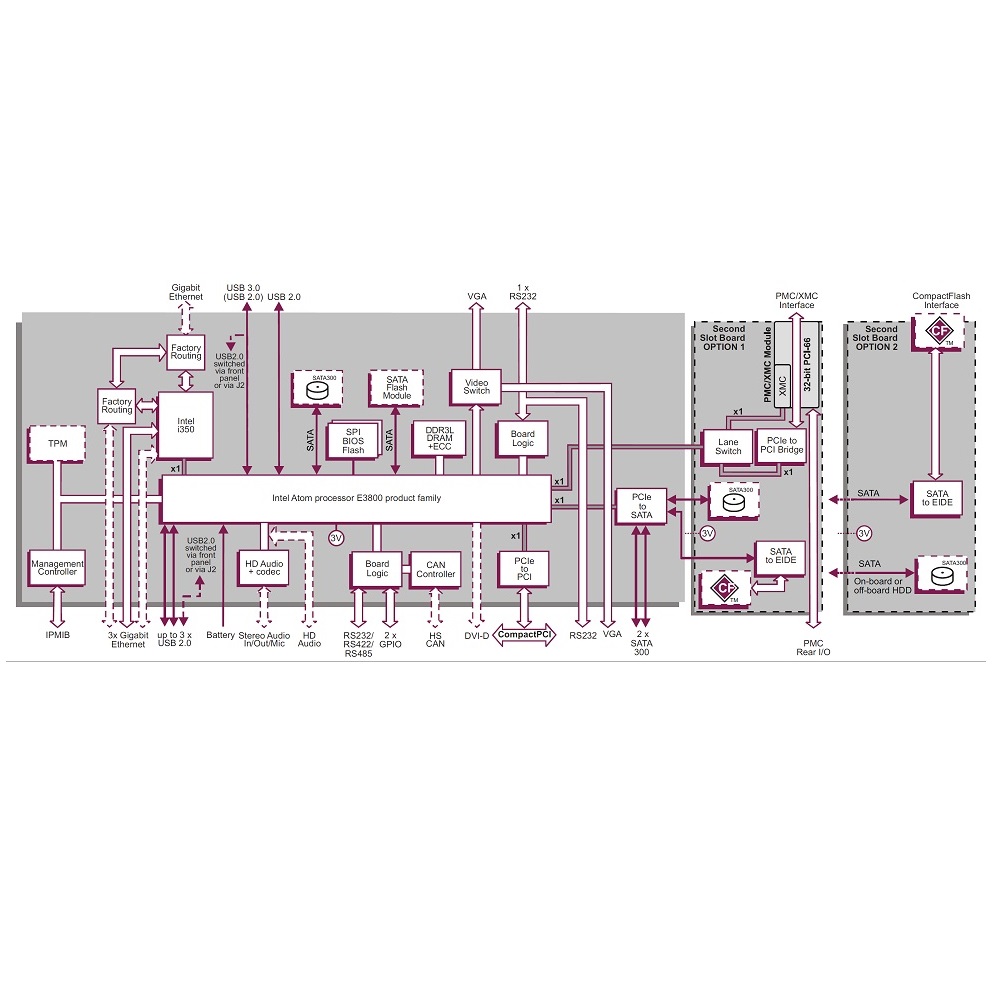

TP D2x/msd block diagram
Technical Description
- 3U 4/8HP universal-slot CPU board, PICMG 2.0 R 3.0, PICMG 2.1 R 2.0 hot-swap, 32bit/33/66 MHz cPCI bus interface, 3.3/5 Vio
- Quad Core 1.91 GHz Intel Atom E3845 (10W),
Dual Core 1.46 GHz Intel Atom E3815 (5W) - Up to 4 GB DDR3L ECC SDRAM, soldered
- Dual 8 MB BIOS SPI flash
- Graphics integrated in CPU, VGA front panel port via 15-way high density connector or via J2, 2048×1536 resolution, DVI-D via J2, 1920×1080 resolution
- Opt. SATA flash module, min. 8 GB
- 4 SATA 3Gbit/s ports, 2 ports via J2 and 2 ports for up to two 2.5″ HDDs
- CompactFlash socket
- Opt. PMC/XMC slot, 32bit/66 MHz, XMC site with PCIe x1 link, occupy one 2.5″ slot
- 4 Gigabit Ethernet ports, one front panel port, three ports via J2, Intel i350 controller
- Two RS-232 ports, one RS-232 front panel port or via J2, one RS-232/422/485 port
- Up to four USB ports, one USB 3.0 front panel port and up to three USB 2.0 ports via J2 or one USB 2.0 front panel port
- Opt. high-speed CANbus interface
- 2 GPIO ports via J2
- Intel HD audio interface via J2
- Insyde Software InsydeH20 BIOS, LAN Boot Firmware
- Watchdog timer, real time clock and long duration timer
- In 4 environmental classes available: standard (0°C .. 70°C), extended grade (-25°C .. +70°C), (-40°C .. +85°C) and conduction-cooled (-40°C .. +85°C)
- 2 years warranty
Order Information
TP D21/012-yz
3U/4HP CPCI Atom E3815 CPU board, 4GB RAM
TP D21/112-yz
3U/8HP CPCI Atom E3815 CPU board, 4GB RAM, XMC/PMC slot
TP D24/012-yz
3U/4HP CPCI Atom E3845 CPU board, 4GB RAM
TP D24/112-yz
3U/8HP CPCI Atom E3845 CPU board, 4GB RAM, XMC/PMC slot
y/z
Rear-I/O configuration
AP TP1/005-05
3U RTM with 1 GbE, 2 USB, 1 VGA, 2 RS-232, 2 SATA, audio, 2 GPIO, CANbus
AP TP1/005-10
3U RTM with 2 GbE. 2 USB, 1 VGA, 2 RS-232, 2 SATA, audio, 2 GPIO, CANbus
CB 60D/125-00
60-way HD to DVI-A, DVI-D, 2 USB and RS-232 splitter cable
CB DVI/121-00
DVI-A to VGA HD15 adapter
