TPCI270 32-bit PCI-to-PMC Adapter Board

PCI carrier board with front panel/rear I/O for one PMC module. The TPCI270 board allows the use of PMC modules in PCI based calculators - e.g. for data acquisition and storage systems as well as testing and laboratory applications. The adapter is compliant for PCI 2.2 and works with 3.3V and 5V signaling voltage.
Optional a locale 3.3V generation is available.

The P14 I/O lines of the PMC site are conducted with a 64 pin VG connector (603-2-IEC-C064-M) to the right edge of the board.

ORDER NOW

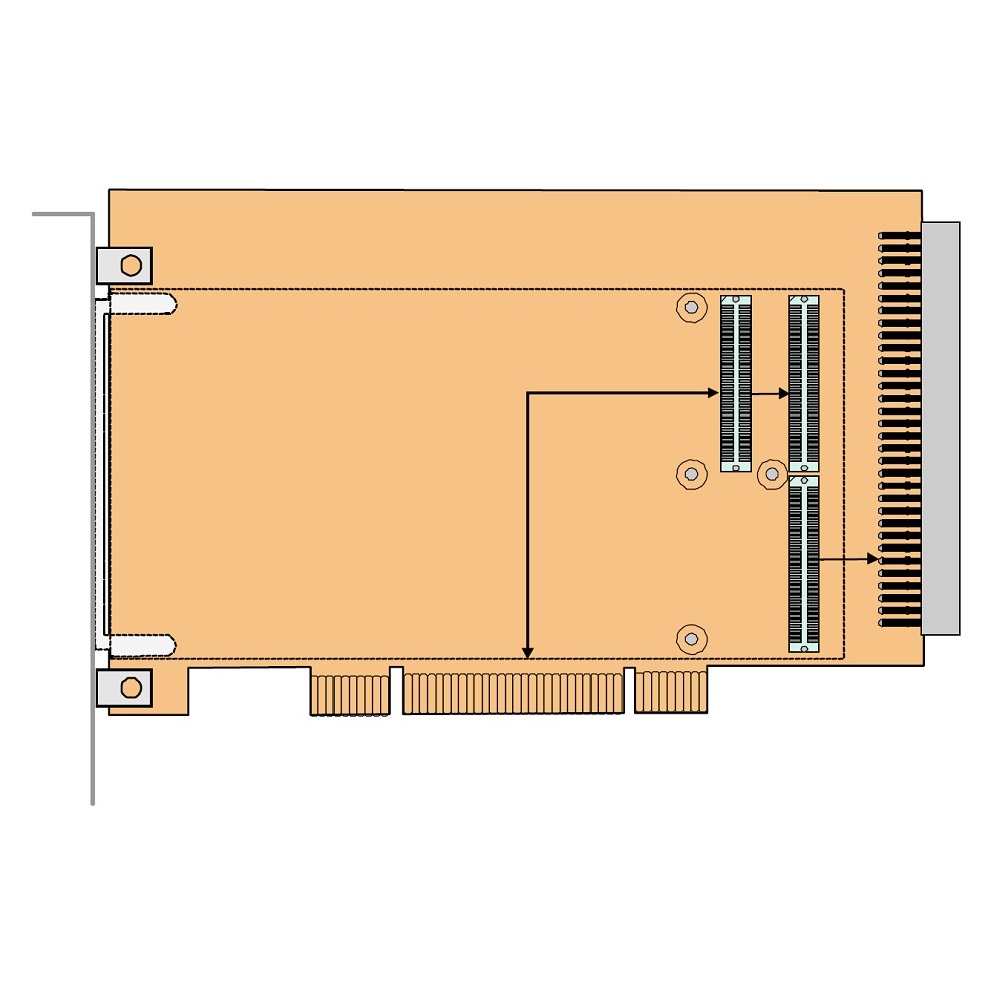

Technical Description

proimg1
  • PCI board, 32-bit/33 MHz PCI interface, PCI 2.2 compliant, “short” construction form
  • A PMC site (IEEE 1386) with FP/P14 I/O
  • 3.3V and 5V PCI Vio
  • Optional locale 3.3V generation; resistance 2A (current limited)
  • P14 I/O via 64 pin VG connector (603-2-IEC-C064-M)
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TPCI270-10R

PCI-to-PMC adapter board

TPCI270-20R

PCI-to-PMC adapter board with locale 3.3V generation

Technical Documentation

TPCI270-DS

TPCI270 data sheet

TPCI270-UM

TPCI270 user manual
