TR E8x/msd Intel Xeon CPU Board with FIN-S

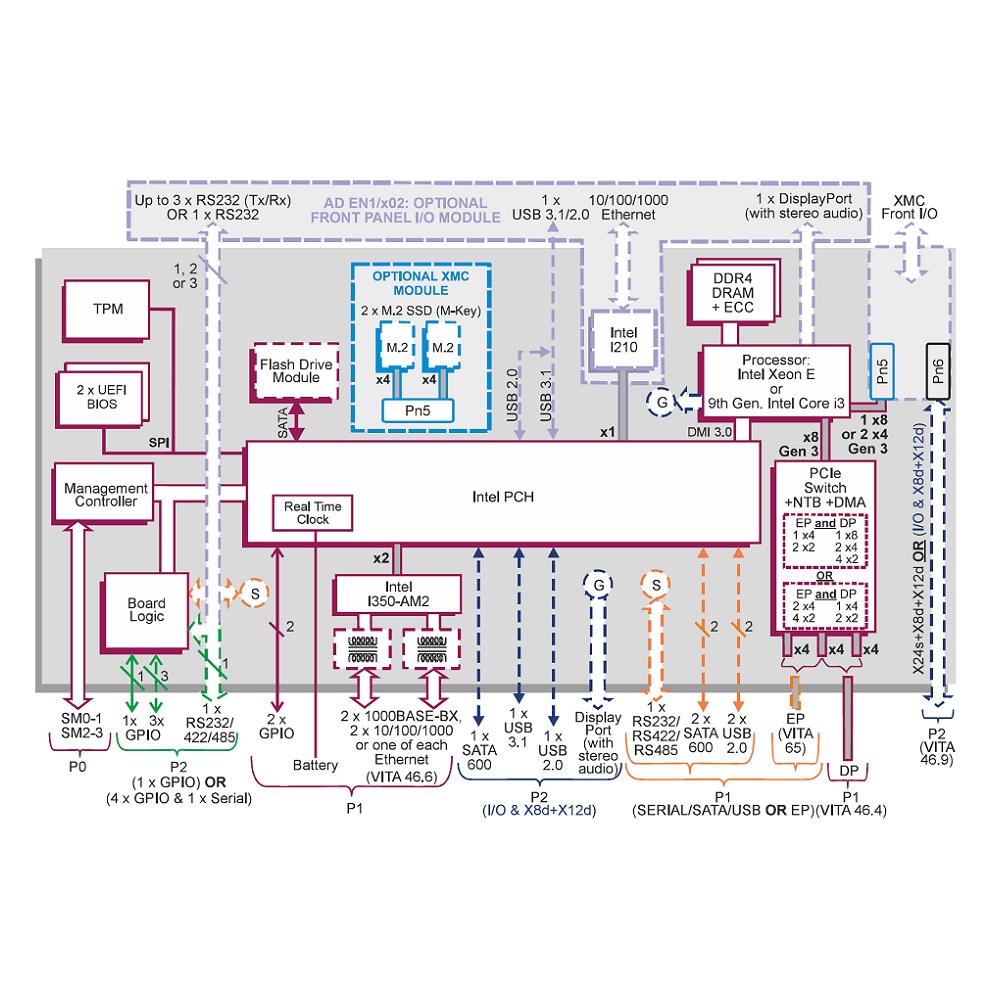

TR E8x/msd Block Diagram
Technical Description
- 3U/4HP VPX CPU board, VITA 42.0, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 46.11, VITA 47, VITA 48.0, VITA 61, VITA 65, and OpenVPX compliant
- MOD3-PAY-2F2U-16.2.3-3,
MOD3-PAY-2F1F2U-16.2.1-4,
MOD3-PAY-1F2F2U-16.2.2-4 Module Profile - Six core up to 2.8GHz Intel Xeon E-2276ME CPU, 12MB cache,
Quad core up to 2.6 GHz Intel Xeon E-2254ME CPU, 8 MB cache,
Quad core up to 1.6 GHz Intel Core i3-9100HL CPU, 6 MB cache - Intel CM246 platform controller
- Up to 32 GB ECC DDR4 RAM, soldered
- Dual BIOS SPI flash EPROMs
- Opt. one XMC site, VITA 42.0, front- and P2 rear-I/O (VITA 46.9)
Option 1: full rear XMC I/O (X24s+X8d+X12d) without DisplayPort)
Option 2: reduced rear XMC I/O (X8d+X12d) providing P2 I/O with 1 USB 2.0 and 1 USB 3.1, 1 SATA 6Gbit/s and one DisplayPort - Up to 2 independent graphics interfaces, DisplayPort with audio and video support in opt. front I/O module and via P2 (XMC build option 2) , DirectX 12, OpenGL 4.x and OpenCL 2.0 support
- Up to four SATA 6Gbit/s ports, two ports via P1 (replaces VPX expansion plane PCIe interface), opt. one port via P2 (XMC build option 2) and one port for an opt. flash module
- Opt. XMC module with two M.2 SSD sites: 2242, 2260 and 2280 devices are supported, PCIe x4 interface (M-key), NVM Express (NVMe) logical interface
- Up to three Gigabit Ethernet ports, two SerDes 1000Base-BX or Gigabit Ethernet ports VITA 46.6 via P1 and opt. one Gigabit Ethernet front panel port, with or without magnetic, Precision Time Protocol support, Intel I210 and I350-AM2
- Up to 5 RS-232 ports, one RS-232/422/485 port via P1 (replaces VPX expansion plane PCIe interface), opt. one RS-232/422/485 port via P2 and opt. up to 3 RS-232 (Tx/Rx) ports via opt. front I/O module
- Up to 5 USB ports, 1 USB 3.1 port via opt. front I/O module, opt. 2 USB 2.0 ports via P1 (replaces VPX expansion plane PCIe interface) and opt. 1 USB 3.1 port via P2 (XMC build option 2)
- Up to 6 GPIO ports, 2 ports via P1 and opt. 4 ports via P2
- Opt. one GbE, one USB 3.1, up to three RS-232 and one front panel DisplayPort and XMC front-I/O
- One PCIe x8, two PCIe x4 and four PCIe x2 Gen 3 ports via P1 (VITA 46.4) or
one PCIe x4 and two PCIe x2 Gen 3 ports via P1 (VITA 46.4) - One PCIe x4 and two PCIe x2 Gen 3 ports via P1 (VITA 65) or
two PCIe x4 and four PCIe x2 Gen 3 ports via P1 (VITA 65) or
one RS-232/422/485, two SATA 6Gbit/s and two USB 2.0 ports via P1 - PCIe switch supports two non-transparent ports for multi processing configurations
- Fabric Interconncect Networking Software (FIN-S)
- P0, P1 and P2 support OpenVPX configuration
- 4 channel DMA engine for fast data block moves
- UEFI 2.7 BIOS, LAN Boot Firmware
- Real Time clock and watchdog timer
- Opt. Trusted Platform Module (TPM 2.0) and opt. Build-In test (BIT)
- Audio via opt. front I/O module with DisplayPort and via P2 (XMC build option 2)
- In 2 environmental classes available: standard (0°C .. 55°C) and extended (-25°C .. +70°C)
- 2 years warranty
Order Information
TRE86/m7d-yz
3U/4HP CPU board, 6-Core 2.8 GHz Xeon E-2276ME
TRE86/m6d-yz
3U/4HP CPU board, 6-Core 2.4 GHz Xeon E-2276ME
TRE86/m5d-yz
3U/4HP CPU board, 6-Core 2.0 GHz Xeon E-2276ME
TRE84/m7d-yz
3U/4HP CPU board, 4-Core 2.6 GHz Xeon E-2254ME
TRE84/m6d-yz
3U/4HP CPU board, 4-Core 2.1 GHz Xeon E-2254ME
TRE84/m5d-yz
3U/4HP CPU board, 4-Core 1.7 GHz Xeon E-2254ME
TRE84/m3d-yz
3U/4HP CPU board, 4-Core 1.6 GHz Core i3-9100HL
d=1
16GB RAM, VITA 42.0 XMC Connector
d=2
32GB RAM, VITA 42.0 XMC connector
d=5
16GB RAM, VITA 61 XMC connector
d=6
32GB RAM, VITA 61 XMC connector
m=5
VITA 46.0 front panel
m=6
VITA 65 front panel
y/z
Rear I/O configuration
AD 231/103-yz
Max. 64 GB flash module
AD 231/105-yz
Min. 64Gb flash module
AD EN1/002-10
Front panel I/O module
AD TR1/xnn-vw
3U VPX RTM
CB 232/121-01
RJ45 plug to 9-way D-plug adapter RS232 cable
XM 620/x01-yz
XMC mass storage with 2 M.2 PCIe SSD Sites
