TR G4x/msd 3U VPX CPU Board with Intel Xeon D-1500 Processor, up to 64 GB RAM and 10Gigabit Ethernet

3U VPX CPU board with a 16-Core 1.3 GHz Intel Xeon D-1577 or 12-Core 1.5 GHz Intel Xeon D-1559 or a 8-Core 2.0 GHz Intel Xeon D-1548or a 8-Core 1.6 GHz Intel Xeon D-1539 processor. Up to 64 GB DDR4 ECC SDRAM are soldered on the board.

The CONCURRENT Technologies TR G4x/msd offers two 10Gigabit Ethernet Ports, 2 Gigabit Ethernet Ports, up to 6 SATA 6Gbit/s ports, up to 4 RS-232 ports, up to 2 USB 3.0 ports, 2 USB 2.0 ports, 4 GPIO ports and opt. one VGA port. In addition one PCIe x4 port via P1 and three PCIe x4 via P2 are available. The 16 lanes can be configured as 4 x4 ports or 2 x8 ports or one x16 port. Opt. one flash module and one 2.5" SSD or two M.2 SSDs via an I/O module can be mounted on the TR G4x/msd. The M.2 SSD sites supports RAID 0, 1, 5 and 10.

The front panel offers opt. up to two Gigabit Ethernet, one USB 3.0, up to 3 RS-232 (Tx/Rx) or one RS-232 (full modem) and one VGA port.

The board supports Microsoft Windows and Linux.

The TR G4x/msd is available in standard operating temperature range, extended temperature and in conduction-cooled.

ORDER NOW

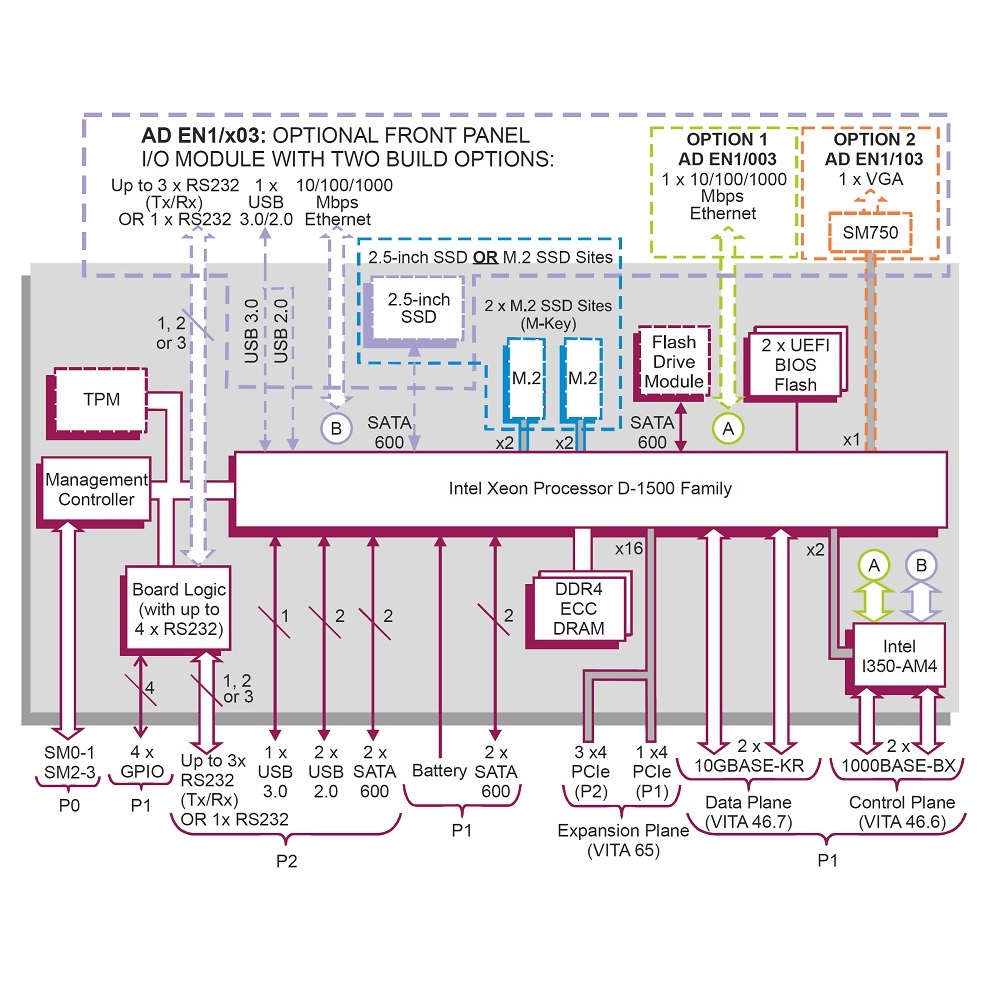

Technical Description

proimg1
  • 3U/4HP VPX CPU board, VITA 46.0, VITA 46.6, VITA 46.7, VITA 47.0, VITA 48.2, VITA 65, and OpenVPX compliant
  • MOD3-PAY-2F4F2U-16.2.10-8,
    MOD3-PAY-2F1F2U-16.2.1-8 Module Profile
  • 16-Core 1.3 GHz Intel Xeon D-1577 CPU, 24MB Cache,
    12-Core 1.5 GHz     Intel Xeon D-1559 CPU, 18MB Cache,
    8-    Core 2.0 GHz Intel Xeon D-1548 CPU, 12MB Cache,
    8-Core 1.6 GHz Intel Xeon D-1539 CPU, 12MB Cache
  • Intel Advanced Vector Extensions 2 and Intel AES New Instructions
  • Up to 64 GB ECC DDR4 RAM, soldered
  • 16 MB BIOS flash
  • Opt. VGA port via build option, 1920×1080 resolution (build option for either VGA port or GbE port)
  • Up to six SATA 6Gbit/s ports: two ports via P1, two ports via P2, one port for an opt. flash module and one port for a 2.5″ SSD via front I/O module (if the opt. SSD module is fitted the opt. M.2 SSD sites not fitted)
  • Opt. two M.2 SSD sites: 2242, 2260 and 2280 format modules are supported, RAID 0, 1, 5 und 10 support
  • Two 10Gigabit Ethernet ports: two 1000Base-KR VITA 46.7 ports via P1
  • Up to 4 Gigabit Ethernet ports: two SerDes 1000Base-BX VITA 46.6 ports via P1, opt. one GbE port via front I/O module and opt. one GbE port via build option (build option for either GbE port or VGA port), Intel I350-AM4
  • Up to 4 RS-232 ports:
    one RS-232 (full modem) port via P2 and one RS-232 (full modem) front panel port or
    up to three RS-232 (Tx/Rx) ports via P2 and one RS-232 (Tx/Rx) front panel port or
    one     RS-232 (Tx/Rx) port via P2 and up to three RS-232 (Rx/Tx) front panel ports
  • Up to 4 USB ports: 1 USB 3.0 port via P2, 2 USB 2.0 ports via P2 and opt. 1 USB 3.0 front panel port via front I/O module
  • 4 GPIO ports via P1
  • Opt. up to two Gigabit Ethernet, one USB 3.0, up to three RS-232 (Tx/Rx) or one RS-232 (full modem), and one front panel VGA port
  • One PCIe x4 port via P1 and three PCIe x4 via P2, the 16 lanes can be configured as 4 x4 ports or 2 x8 ports or one x16 port
  • PCIe switch supports two non-transparent ports for multi processing configurations
  • 4 channel DMA engine for fast data block moves
  • Dual UEFI 2.4 BIOS, LAN Boot Firmware
  • Real Time clock and watchdog timer
  • System management with baseboard management controller (BMC) and IPMI via SM0-1 and SM2-3
  • Opt. Trusted Platform Module (TPM) and Build-In Test (BIT)
  • In 3 environmental classes available: standard (0°C .. 55°C), extended (-25°C .. +70°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

TR_G4E/54d-15

3U/4HP CPU Board, 16-Core Xeon D-1577, 0 .. 55°C, 1-inch Slot, 10GbE

TR_G4C/54d-15

3U/4HP CPU board, 12-Core Xeon D-1559, 0 .. 55°C, 1-inch slot, 10GbE

TR_G48/58d-15

3U/4HP CPU board, 8-Core Xeon D-1548, 0 .. 55°C, 1-inch slot, 10GbE

TR_G48/56d-15

3U/4HP CPU board, 8-Core Xeon D-1539, 0 .. 55°C, 1-inch slot, 10GbE

TR_G4E/54d-15E

3U/4HP CPU board, 16-Core Xeon D-1577, -25 .. +70°C, 1-inch slot, 10GbE

TR_G4C/54d-15E

3U/4HP CPU board, 12-Core Xeon D-1559, -25 .. +70°C, 1-inch slot, 10GbE

TR_G48/58d-15E

3U/4HP CPU board, 8-Core Xeon D-1548, -25 .. +70°C, 1-inch slot, 10GbE

TR_G48/56d-15E

3U/4HP CPU board, 8-Core Xeon D-1539, -25 .. +70°C, 1-inch slot, 10GbE

d=2

32GB RDDR4 RAM

d=3

64GB DDR4 RAM

AD_110/025-02

Mounting kit with 2.5" SSD, 0 .. 55°C

AD_231/10x-yz

Flash module

AD_260/001-00

PCIe M.2 flash kit without M.2 modules

AD_260/001-10

PCIe M.2 flash kit with one M.2 module

AD_260/001-11

PCIe M.2 flash kit with two M.2 modules

AD_EN1/003-10

Front panel I/O module with 1x USB 3.0, up to 3 RS-232 and 2 GbE

AD_EN1/103-10

Front panel I/O module with 1x USB 3.0, up to 3 RS-232, 1 VGA and 1 GbE

CB_232/121-01

RJ45 to DB9 adapter cable

CB_20D/122-00

20-way MDR to VGA and 9-way D-adapter cable

SW_VSC/001-L0

VPX switch configuration tool

Technical Documentation

TR G4x/msd-DS

TR G4x/msd Data Sheet
