3U VPX CPU Board with 11th Generation Intel Core i Processor, up to 16 GB RAM and 10Gigabit Ethernet

3U VPX CPU board with a 4-core 2.8 GHz (4.4 GHz) Intel® Core i7-1185GRE or a 2-core 3.0 GHz (3.9 GHz) Intel® Core i3-1115GRE processor. Up to 16 GB DDR4 ECC SDRAM are soldered on the board.

The CONCURRENT Technologies TR K9x/6sd offers two 10Gigabit Ethernet ports, one Gigabit Ethernet port, one DisplayPort, one SATA 6Gbit/s port, one USB 3.2 port, 2 USB 2.0 ports, 4 GPIO ports, one RS422 or 2 RS232/485 ports and one maintenance RS232 port. In addition two PCIe x4 Gen 3 ports are available on P1. Furthermore an M.2 SSD, opt. an XMC module and a front I/O module can be mounted. The front I/O module enables a Gigabit Ethernet, a DisplayPort, a USB 3.2 and a RS-232 interface on the front panel.

The board is supported by Microsoft Windows and Linux.

ORDER NOW

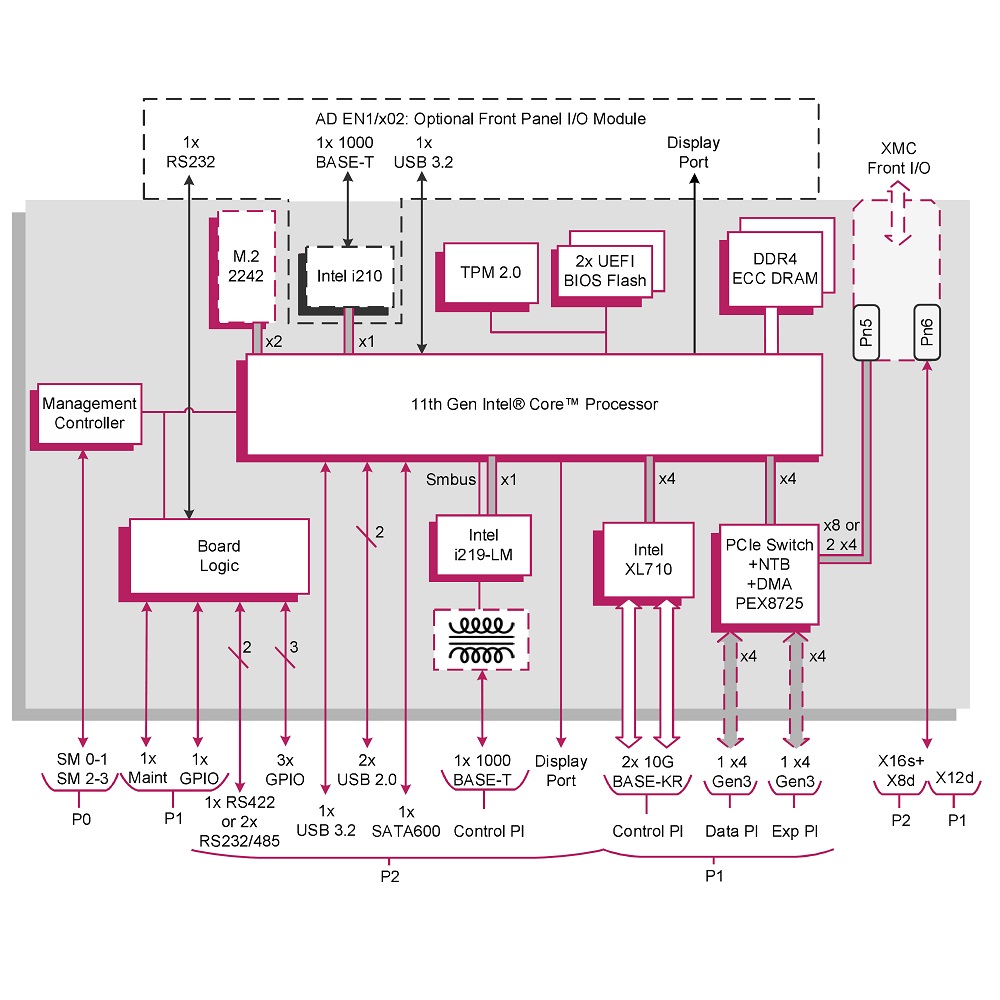

Technical Description

proimg1
  • 3U/4HP VPX board, VITA 42.0, VITA 46.0, VITA 46.4, VITA 46.7, VITA 46.9, VITA 46.11, VITA 47, VITA 48.0, VITA 61, VITA 65.1 and OpenVPX compliant
  • SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 slot profile,
    MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-2 module profile
  • 4-core 2.8 GHz (4.4 GHz) Intel Core i7-1185GRE CPU,
    2-core 3.0 GHz (3.9 GHz) Intel Core i3-1115GRE CPU
  • Up to 16 GB ECC DDR4 SDRAM, soldered
  • Two 32 MB BIOS SPI Flash EPROMs
  • One XMC slot, VITA 42.0, P1 and P2 rear I/O (X12d+X16s+X8d), VITA 46.9
  • Two 10Gigabit Ethernet ports: two 10GBase-KR VITA 46.7 ports on P1, Intel XL710
  • Up to 2 Gigabit Ethernet ports: one 10/100/1000Base-T port on P2, one GbE port via front IO module, Intel i210, Intel i219-LM
  • Intel UHD graphics with up to 2 independent graphics ports: one DisplayPort v1.2 via P2 and opt. one DisplayPort v1.2 in front panel, up to 3840×2160 pixel resolution, DirectX 12, OpenGL 4.x and OpenCL 2.0 support
  • One M.2 SSD slot: 2230 and 2242 format modules are supported, Opal security support
  • One SATA 6Gbit/s port on P2
  • Up to 4 serial ports:
    two RS232 ports on P2 or
    one RS422 (full-duplex) port on P2 or
    two RS485 (half-duplex) ports on P2,
    opt. one RS232 ports on P2,
    one maintenance RS232 port
  • Up to 4 USB ports: 1 USB 3.2 port on P2, 2 USB 2.0 ports on P2 and opt. 1 USB 3.2 front panel port via front IO module
  • 4 GPIO ports, 3 ports on P2 and one port on P1
  • Opt. one Gigabit Ethernet, one DisplayPort, one USB 3.2 and one RS-232 front panel port
  • Two PCIe x4 ports on P1
  • PCIe switch supports non-transparent ports for multi-processing configurations
  • 4 channel DMA engine for fast data movement
  • UEFI 2.7 BIOS, LAN boot firmware
  • Real-time clock and watchdog timer
  • System management with IPMC controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • 0°C .. 55°C operating temperature range
  • 2 years warranty

Order Information

TR_K94/611-yz

Core i7 VPX board, VITA 42.0

TR_K94/612-yz

Core i7 VPX board, VITA 61

TR_K92/611-yz

Core i3 VPX board, VITA 42.0

TR_K92/612-yz

Core i3 VPX board, VITA 61

y

Data plane, control plane und expansion plane options

z

Ethernet magnetic options

Technical Documentation

TR_K9x/6sd-DS

TR K9x/6sd Data Sheet
