TR MDx/6sd conduction-cooled 3U VPX CPU Board with Intel Xeon D-1800 Processor, opt. 100GbE and M2. Slot

3U conduction-cooled VPX CPU board with one 10-core Intel Xeon D-1848TER processor, integrated Advanced Vector Extensions AVX-512, Intel® Vector Neuro Network Instructions (VNNI) and Intel® Vector Byte Manipulation Instructions (VBMI). The board has 128GB soldered ECC DDR4 SDRAM.

The CONCURRENT Technologies TR MDx/6sd board offers two serial LVCMOS RS232 maintenance ports and one GPIO port as well as optional one 100Gigabit Ethernet port, two 25Gigabit Ethernet ports, one PCIe x16 port, one M.2 2242 SSD slot, one VGA port and one USB 2.0 front panel port.

The board is aligned with the SOSA (Sensor Open Systems Architecture) technical standard. The SOSA (Sensor Open Systems Architecture) consortium is a voluntary, consensus-based membership consortium of the Open Group, a vendor-neutral technology standards organization that develops an open technical standard for sensors.

The board is supported by Linux.

ORDER NOW

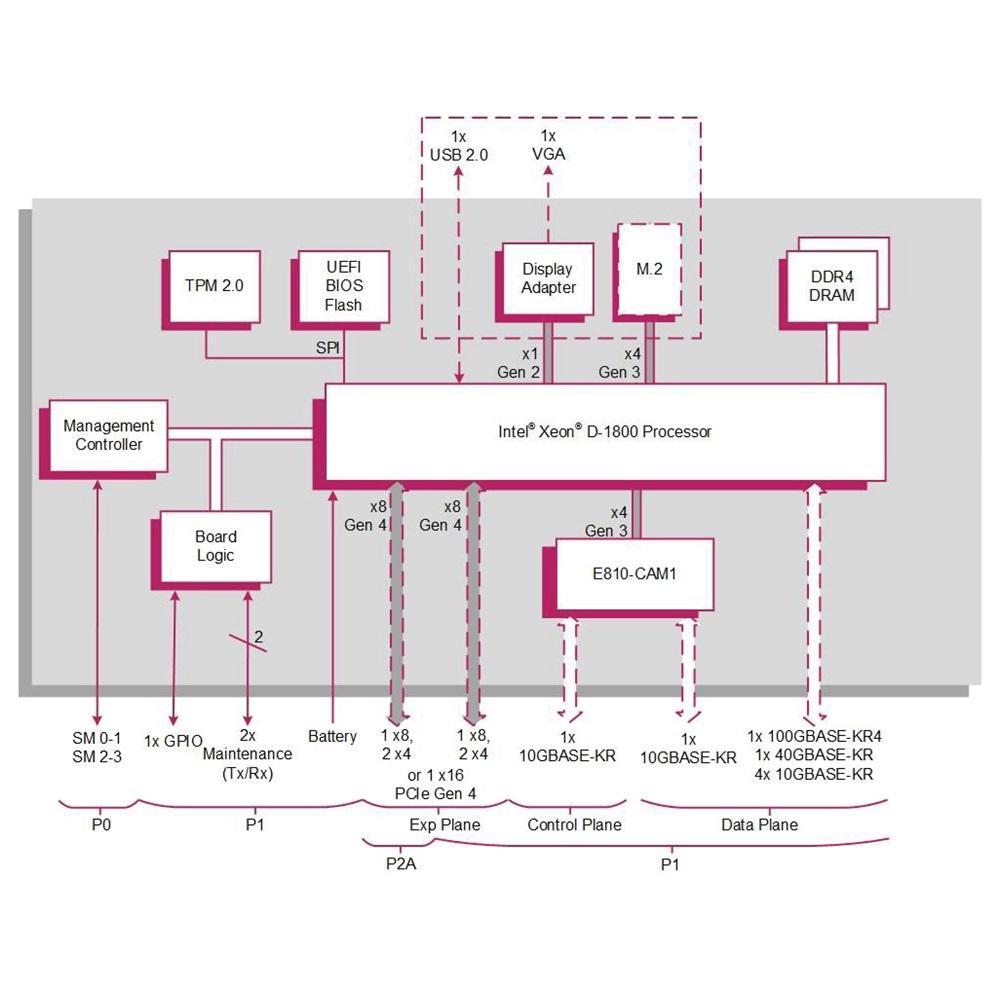

Technical Description

proimg1

3U/4HP VPX board, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.7, VITA 46.11, VITA 47.1, VITA 48.0, VITA 48.2 and OpenVPX compliant

  • SLT3-PAY-1F1U1S1S1U1U2F1H-14-6.11-0 slot profile,
    MOD3-PAY-1F1U1S1S1U1U2F1H-16-6.11-4 module profile and
    SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-n slot profile,
    MOD3-PAY-1F1U1S1S1U1U4F1J-16.6.13-1 module profile
  • 10-Kern 2.0 GHz Intel Xeon D-1848TER CPU, 15MB Cache
  • Intel® Advanced Vector Extensions AVX-512,
    Intel® Vector Neuro Network Instructions (VNNI) and
    Intel® Vector Byte Manipulation Instructions (VBMI)
  • 128 GB ECC DDR4 SDRAM, soldered
  • BIOS SPI Flash EPROM
  • Opt. one 100GBase-KR4 port or one 40GBase-KR port or four 10GBase-KR ports via P1, VITA 46.7
    Opt. two 25GBase-KR ports or two 10GBase-KR ports via P1
  • 2 serial LVCMOS maintenance ports on P1
  • GPIO port via P1
  • Opt. VGA front panel port (1920×1080 pixel resoluation)
  • Opt. one M.2 SSD slot: 2242 module formats supported, PCIe x4 interface with M-key, NVMe 1.3 logical device interface, write protection and Opal 2.0 security support
  • Opt. USB 2.0 front panel port
  • Opt. one PCIe x16 (or 2 x8 or 4 x4) Gen4 port via P1/P2A on the expansion plane
  • UEFI 2.7 BIOS with Secure Boot, LAN Boot Firmware, Intel Boot Guard, opt. fast boot solution with the Intel Slim Bootloader
  • Real-time clock and watchdog timer
  • System management with IPMC onboard controller via SM0-1 and SM2-3
  • Trusted Platform Module (TPM 2.0) and opt. build-in test (BIT)
  • Conduction-cooled, -40°C … +85°C operating temperature range
  • 2 years warranty

Order Information

TR MDx/6sd

3U VPX Xeon D-1848ER CPU board, conduction-cooled

Technical Documentation

TR MDx/6sd-DS

TR MDx/6sd data sheet
