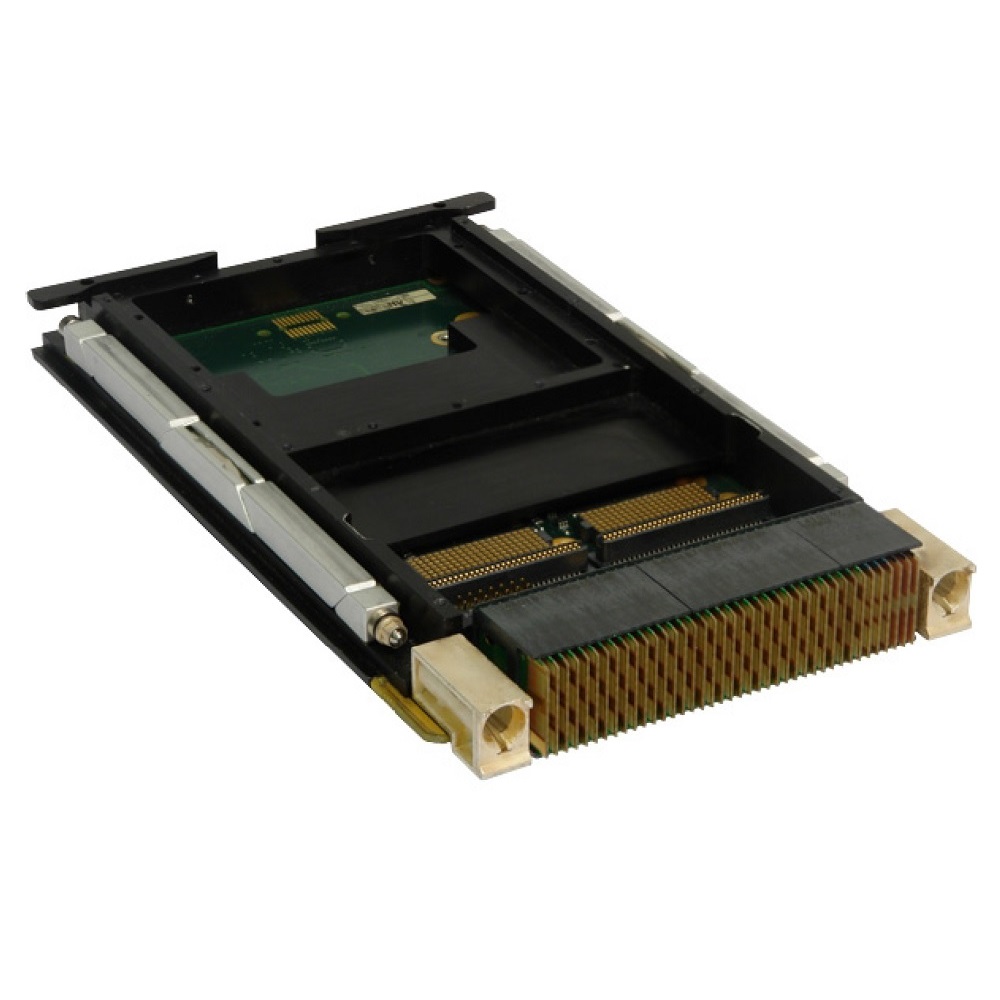

TR XMC/x01 3U VPX Board with XMC/PMC Slot

The TR XMC/x01 is a standard 3U VPX carrier that provides front I/O and rear I/O for a single XMC/PMC module. This XMC/PMC to 3U VPX adapter from CONCURRENT Technologies is used to build modular, flexible and cost effective I/O solutions with XMC/PMC devices in VPX systems.

The TR XMC/x01 supports PMC/XMC front I/O and VPX rear I/O at VPX connector P2. The board has a CompactFlash type 1 socket.

The product is end of life. The TR XMC/x01 can still be ordered until March 31st, 2023. If you have any questions, please contact us.

ORDER NOW

Technical Description

proimg1
  • 3U VPX board, VITA 46.0, VITA 47.0, VITA 48.0, VITA 48.2 conform
  • One PMC/XMC slot, 32/64bit 33/66/100/133MHz, 3.3/5Vio, Front-I/O, Rear-I/O via P2
  • CompactFlash Typ 1 socket
  • In 2 environmental classes available: standard (0°C .. 55°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

TR_XMC/301-10

3U/4HP VPX PMC/XMC carrier board, rear I/O via PMC Pn4, 0.8-inch, VITA 46.0

TR_XMC/301-20

3U/4HP VPX PMC/XMC carrier board, rear I/O via XMC Pn6, 0.8-inch, VITA 46.0

TR_XMC/501-10

3U/4HP VPX PMC/XMC carrier board, rear I/O via PMC Pn4, 1.0-inch, VITA 46.0

TR_XMC/501-20

3U/4HP VPX PMC/XMC carrier board, rear I/O via XMC Pn6, 1.0-inch, VITA 46.0

TR_XMC/601-10

3U/4HP VPX PMC/XMC carrier board, rear I/O via PMC Pn4, 1.0-inch, VITA 65

TR_XMC/601-20

3U/4HP VPX PMC/XMC carrier board, rear I/O via XMC Pn6, 1.0-inch, VITA 65

TR_XMC/301-10RCS

3U/4HP VPX PMC/XMC carrier board, rear I/O via PMC Pn4, conduction-cooled, REDI type 1

TR_XMC/301-10RCT

3U/4HP VPX PMC/XMC carrier board, rear I/O via PMC Pn4, conduction-cooled, REDI type 2

TR_XMC/301-20RCS

3U/4HP VPX PMC/XMC carrier board, rear I/O via XMC Pn6, conduction-cooled, REDI type 1

TR_XMC/301-20RCT

3U/4HP VPX PMC/XMC carrier board, rear I/O via XMC Pn6, conduction-cooled, REDI type 2

AD_TR1/004-60

0.8-inch, VITA 46.0, 64bit rear I/O (via SCSI style connector) from PMC/XMC site

AD_TR1/504-60

1.0-inch, VITA 46.0, 64bit rear I/O (via SCSI style connector) from PMC/XMC site

AD_TR1/604-60

1.0-inch, VITA 65, 64bit rear I/O (via SCSI style connector) from PMC/XMC site

AD_TR1/005-10

0.8-inch, VITA 46.0, blank front panel (with internal SATA and internal XMC I/O connector)

AD_TR1/505-10

1.0-inch, VITA 46.0, blank front panel (with internal SATA and internal XMC I/O connector)

AD_TR1/605-10

1.0-inch, VITA 65, blank front panel (with internal SATA and internal XMC I/O connector)

AD_TR1/005-20

0.8-inch, VITA 46.0, XMC I/O with internal SATA connector

AD_TR1/505-20

1.0-inch, VITA 46.0, XMC I/O with internal SATA connector

AD_TR1/605-20

1.0-inch, VITA 65, XMC I/O with internal SATA connector

Technical Documentation

TR XMC/x01-DS

TR XMC/x01 data sheet

TR XMC/301-RCx-DS

TR XMC/301-RCx data sheet
