TXMC397 Conduction Cooled Dual 10Gigabit Ethernet XMC Module

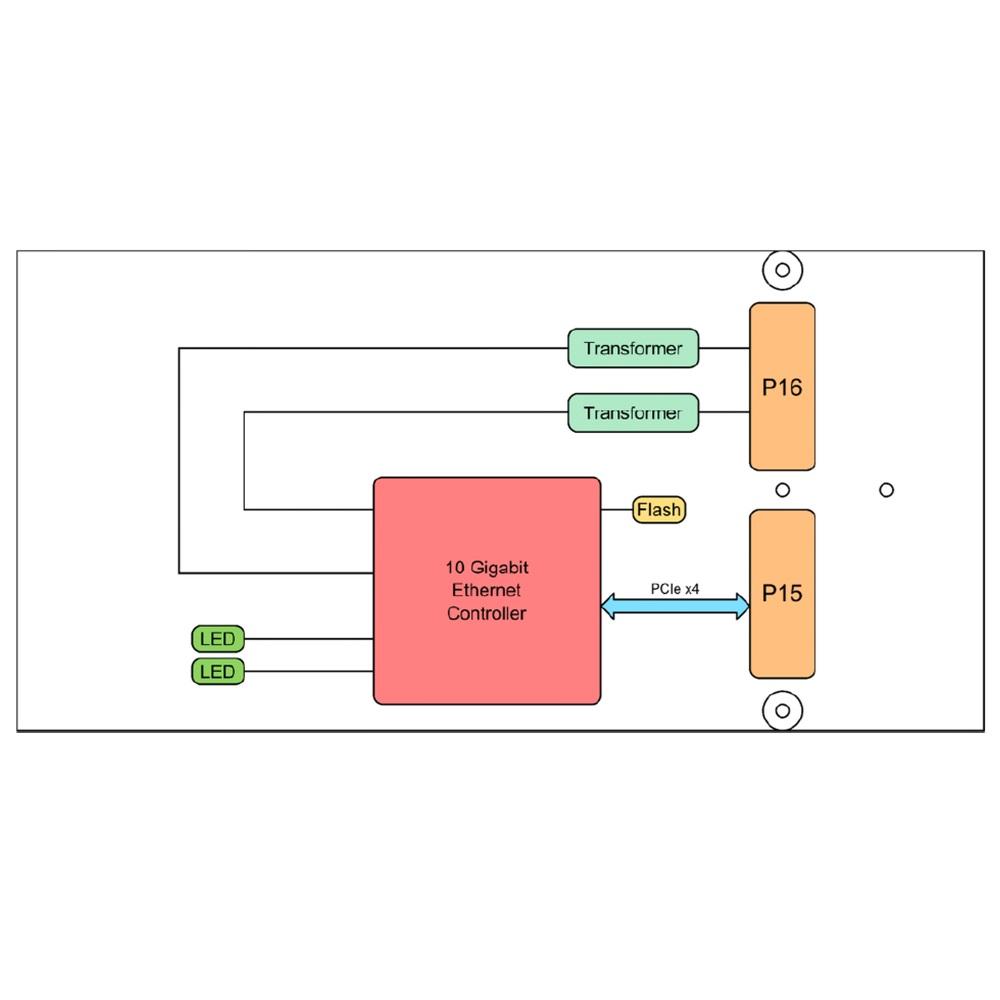

2 channel conduction cooled Ethernet 100Base-TX / 1000Base-T / 2.5GBase-T / 5GBase-T / 10GBase-T interface. The XMC connector P15 of the TXMC397 enables access to the Intel X710-AT2 Dual Port 10GbE controller via a x4 PCIe link. Both Ethernet interfaces support 100, 1000 Mbit/s and 2.5, 5, 10 Gbit/s transfer rates. The controller is equipped with a 64 Mbit serial flash to support PXE and iSCSI boot. LEDs on the board indicate the different network activities. Each channel of the TXMC397 are able to perform an auto negotiation algorithm that allows both link partners to determine the best link parameters. The TXMC397 supports the IEEE 1588/802.1AS Precision Time Protocol (PTP).

The TEWS Technologies TXMC397-10R XMC module routes all Ethernet ports to the P16 connector in the X12d area and the TXMC397-20R routes the Ethernet ports to the P16 connector in the X8d area.

ORDER NOW

Technical Description

proimg1
  • XMC module, ANSI/VITA 42.0, ANSI/VITA 42.3, ANSI/VITA 20 and VITA46.9 compliant
  • Two 10GBase-T Ethernet ports, Intel X710-AT2 controller
  • x4 PCIe 3.0 interface via P15
  • Auto negotiation
  • Rear I/O via P16
    • TCMX397-10R: Both ports mapped in X12d range
    • TCMX397-20R: Both ports mapped in X8d range
  • 64 Mbit serial flash
  • IEEE 1588/802.1AS Precision Time Protocol (PTP)
  • Conduction-cooled, -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TXMC397-10R

2 Channel 10GbE XMC Module, conduction cooled, P16 I/O (X12d)

TXMC397-20R

2 Channel 10GbE XMC Module, conduction cooled, P16 I/O (X8d)

Technical Documentation

TXMC397-DS

TXMC397 data sheet
