TXMC889 Quad SFP Gigabit Ethernet Interface

XMC module providing a quad channel Gigabit Ethernet SFP interface. The XMC connector P15 provides access to the Intel I350-AM4 quad port GbE controller via an PCIe x4 link. The SFP ports accept various SFP transceiver modules like SFP+ Direct Attach Twinaxial Cable, SFP+ SFPwire Active Optical Cable, SFP+ 1000Base-SX, SFP+ 1000Base-LX, SFP 1000Base-SX, SFP 1000Base-LX and SFP 1000Base-T. The controller is equipped with a 1 Mbit serial flash for Boot ROM and an 128 kbit EEPROM storing configuration data.

ORDER NOW

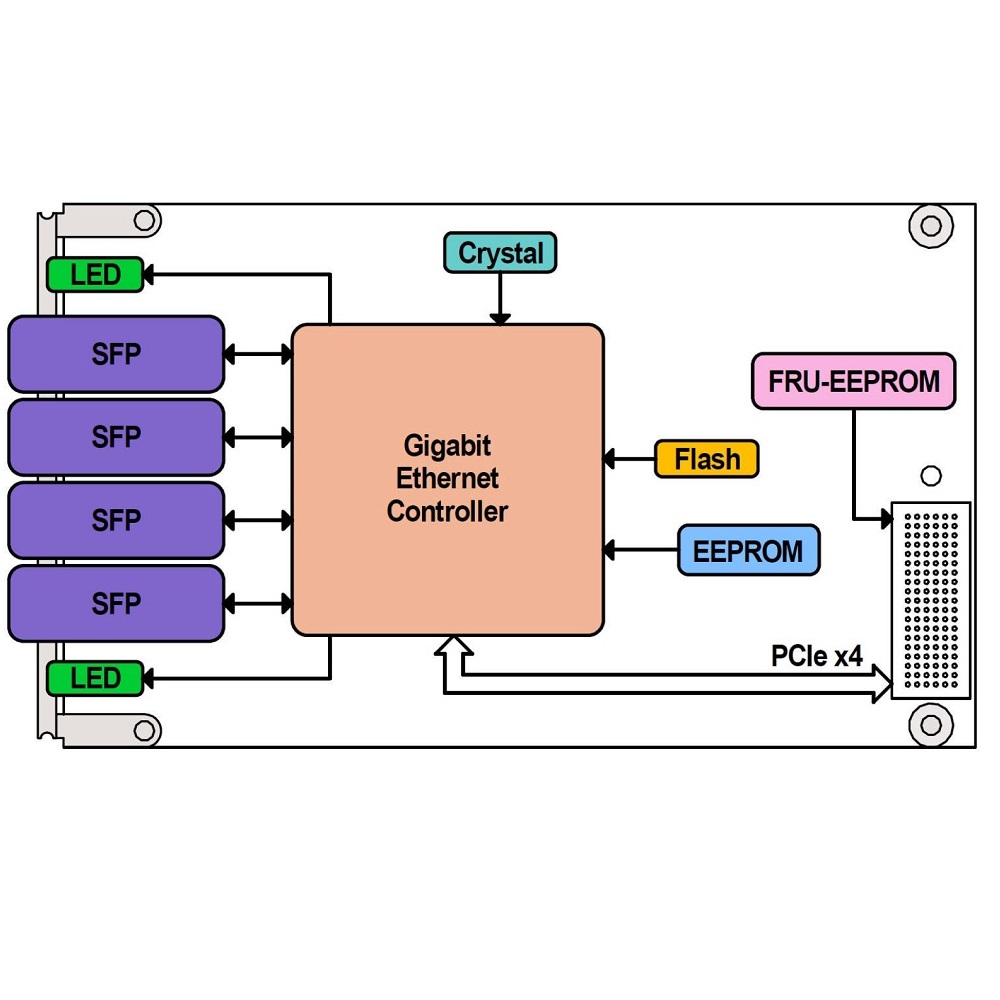

Technical Description

proimg1
  • XMC module, VITA 42.0, PCIe x4 compliant VITA 42.3
  • Quad GbE SFP ports, quad Intel I350-AM4 controller
  • 1 Mbit flash for Boot ROM
  • 128 kbit EEPROM storing configuration data
  • IPMI resource: FRU hardware definition information stored in on-board EEPROM
  • MTBF 431.000h
  • -40°C .. +85°C operating temperature range
  • 5 years warranty

Order Information

TXMC889-10R

XMC module, 4 GbE SFP front IO

Technical Documentation

TXMC889-DS

TXMC889 Data Sheet

TXMC889-UM

TXMC889 User Manual
