Quad Gigabit Ethernet Interface

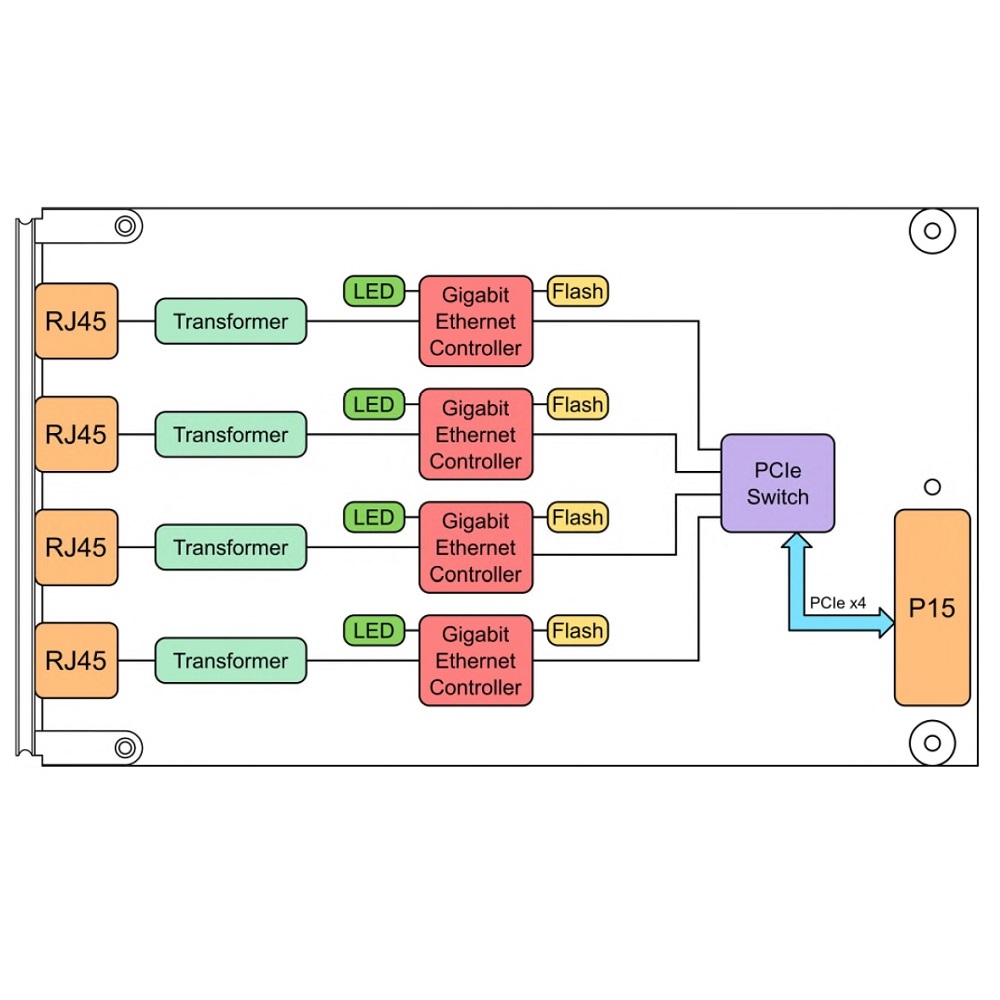

XMC module with a four channel Ethernet 10Base-T/100Base-TX/1000Base-T interface. The XMC connector P15 is connected to a PCIe switch via a PCIe x4 lane. The PCIe switch provides access to four Intel I210IT Gigabit Ethernet controllers supporting transfer rates of 10, 100 and 1000 Mbps. The XMC module is equipped with a 16 Mbit serial flash for configuration data and memory for boot ROM.

All TXMC895 channels are capable of performing an auto negotiation algorithm which allows both link-partners to determine the best link-parameters. The TXMC895 supports IEEE 1588/802.1AS Precision Time Protocol (PTP) and IEEE 802.1Qav Audio/Video Bridging (AVB) traffic shaping (with software enhancements).

The TEWS Technologies TXMC895-10R provides four RJ45 front panel ports. All ports are galvanically isolated. LEDs on the board indicate the different network activities.

ORDER NOW

Technical Description

proimg1
  • XMC module, VITA 42.0, PCIe x4 compliant VITA 42.3
  • Four 10/100/1000BaseTX Ethernet ports, Intel I210IT controller
  • Auto-negotiation
  • Front panel I/O via RJ45 connectors
  • All ports insulated
  • 16 Mbit serial flash for configuration data and memory for Boot ROM
  • IPMI resource: FRU hardware definition information stored in on-board EEPROM
  • IEEE 1588/802.1AS Precision Time Protocol (PTP) and IEEE 802.1Qav Audio/Video Bridging (AVB) traffic shaping (with software extensions)
  • MTBF 581.000h
  • -40°C .. +85°C operating temperature range
  • 5 years warranty
