VPX6000 6U VPX Conduction-cooled CPU Board with Intel Core i7 Generation 4 Processor, 32 GB RAM and 10GbE

6U VPX CPU board with a Single or Dual Quad Core 2.4 GHz Intel Core i7-4700EQ processor and Intel's QM87 controller. 32 GB DDR3L-1600 ECC SDRAM are soldered on the board. 64 GB SSD are available.

ADLINKs VPX6000 offers four 10GbE, four DVI/HDMI, two SATA 6Gbit/s, ten GbE, four RS-232/422, 8 USB, 32 GPIO, 2 PS/2 Keyboard/Mouse, HD audio line-in and line-out, and 2 PCIe x8 or 4 PCIe x4 (Gen2) ports. Two VGA, two RS-232 and 2 USB 3.0 front panel ports are available on the air-cooled version.

The board supports Wind River VxWorks 6.9.3, RedHat Enterprise Linux 6.5, and Windows 7 32/64bit.

ORDER NOW

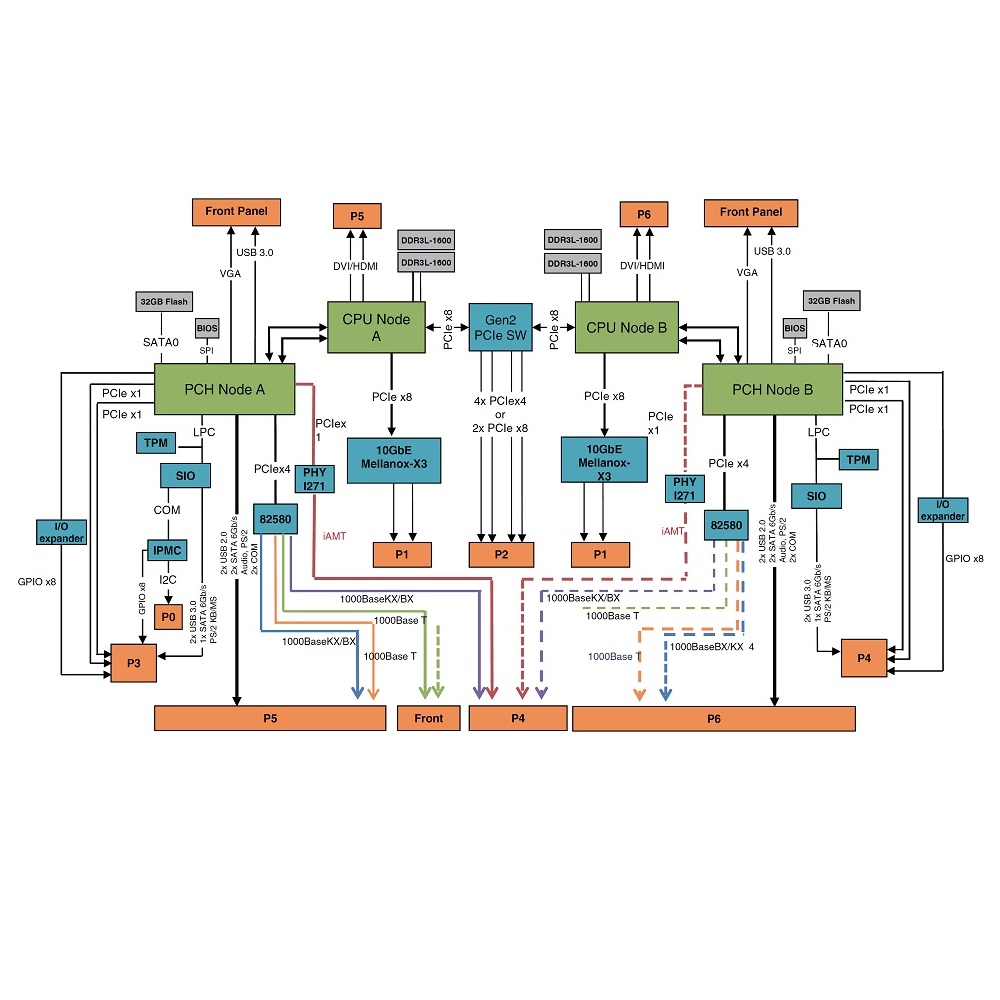

Technical Description

proimg1
  • 6U/4HP VPX CPU board, VITA 46.0, VITA 46.4, VITA 46.6, VITA 46.9, VITA 46.10, VITA 46.11, VITA 48.0 and VITA 65 OpenVPX compliant
  • MOD6-PAY-4F1Q2U2T-12.2.1-8 module profile,
    SLT6-PAY-4F1Q2U2T-10.2.1 slot profile
  • Single or Dual Quad core 2.4 GHz Intel Core i7-4700EQ CPU, 6MB L2 cache
  • Intel QM87 controller
  • 16 GB ECC 1600 MHz DDR3L RAM per CPU
  • Graphics integrated in CPU, two VGA front panel ports (air cooled version), four DVI/HDMI ports via P5/6, DirectX 11.2 and OpenCL 1.2 support
  • Two SATA 6Gbit/s ports via P3/P4
  • 64Gb SSD, two 32 GB SLC SSDs, opt. 128 GB flash
  • Four 10GbE ports with RDMA via P1, Mellanox ConnectX-3
  • Ten GbE ports, four 1000BASE-T ports via P4-P6 and four 1000BASE-BX/KX ports via P4-P6, 2 GbE ports with iAMT via P4, Intel 82580EB, Intel I271
  • Two RS-232 front panel ports and two RS-232/422 ports via P5/6
  • Up to 10 USB ports, 2 USB 3.0 front panel ports (air-cooled version), 4 USB 3.0 ports via P3/P4 and 4 USB 2.0 ports via P5/6
  • 2 PCIe x8 or 4 PCIe x4 (Gen2) with DMA via P2
  • 32 GPIO ports via P3/P4
  • 2 PS/2 Keyboard/Mouse ports via P5/P6
  • HD audio line-in and line-out ports via P5/P6
  • AMI UEFI BIOS with 16 MB SPI flash
  • HW monitor and watchdog timer
  • -40°C .. +75°C (Conduction-cooled) and 0°C .. +75°C (air-cooled) operating temperature range
  • 2 years warranty

Order Information

VPX-6000/D4700/M32/S64-R1

3U/4HP VPX CPU board, Dual Quad Core 2.4 GHz Core i7-4700EQ, 32 GB RAM, 64 GB SSD, -40 .. +75°C, conduction-cooled

VPX-6000/S4700/M16/S32-A1

3U/4HP VPX CPU board, Single Quad Core 2.4 GHz Core i7-4700EQ, 16 GB RAM, 32 GB SSD, 0 .. +75°C, air cooled

VPX-6000/D4700/M32/S64-A1

3U/4HP VPX CPU board, Dual Quad Core 2.4 GHz Core i7-4700EQ, 32 GB RAM, 64 GB SSD, 0 .. +75°C, air-cooled

VPX-R6000

RTM for VPX-6000 with 2x 10GbE, 2 USB 3.0, 2x 1000BASE-t, 2x BASE-BX, 2x Micro-HDMI, Mini UART, Line-in, Line-out, RS-232, 6x SATA 3.0

tBP-VPX6000

Testbed for VPX-6000

Technical Documentation

VPX6000-DS

VPX6000 Data Sheet
