XM 530/x22 Two 10Gigabit Ethernet Interface

XMC module providing a two channel 10Gigabit Ethernet 10GBASE-T/1000BASE-T/100BASE-Tx interface. The XMC connector Pn6 provides access to the Intel X540 dual port 10GbE controller via an PCIe x8 link. The controller has a BIOS EPROM with dual 1 Mbit serial flash, provides 128 transmit and receive queues per port, integrated MACSec and IPSec Engine, precision time protocol support, TCP/UDP/IP checksum offload, TCP segmentation offload and supports Quality of Service (QoS) and I/O virtualization for up to 128 ports, jumbo frames, Link speed auto negotiation, VLAN support, Wake On LAN (WoL) support, 64-bit addresses as well as PXE and iSCSI option ROMs.

The module supports Microsoft Windows, Linux and VxWorks.

ORDER NOW

Technical Description

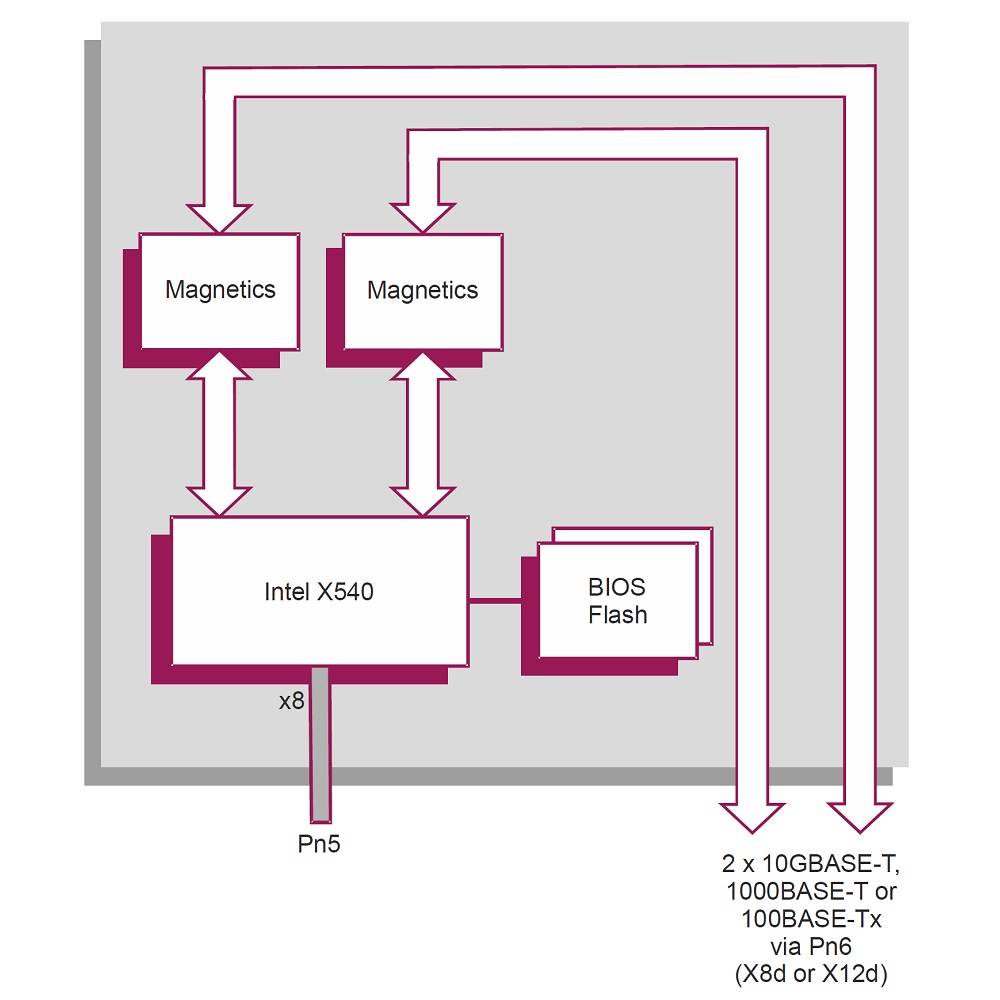

proimg1
  • XMC module, PCIe x8 compliant PCIe 2.0, VITA 46.9 X8d or X12d, VITA 47
  • Two 10GBASE-T/1000BASE-T/100BASE-Tx ports on Pn6, dual Intel X540 controller
  • BIOS EPROM with dual 1 Mbit Flash
  • Jumbo frames up to 15.5KB
  • 64bit addresses
  • IEEE 802.Q VLAN support
  • PXE and iSCSI option ROMs
  • Wake On LAN (WoL) support
  • Quality of Service (QoS) and I/O virtualization for up to 128 ports
  • TCP/UDP/IP checksum offload, TCP segmentation offload
  • IEEE 1588 precision time protocol support
  • Integrated 802.1AE MACSec and IPSec Engine
  • 128 transmit and receive queues (per port)
  • Link speed auto negotiation
  • VITA 46.9 X8d or X12d via XMC Pn6 connector (with magnetics)
  • In 2 environmental classes available: standard (0°C .. 55°C) and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

XM_530/x22

XMC module, Two 10GE interface

Technical Documentation

XM 530/x22-DS

XM 530/x22 Data Sheet
