XM 620/x01 XMC Carrier Module for up to 4TB M.2 PCIe SSDs

XMC modules with two M.2 PCIe SSD slots for up to 4TB capacity. The module enables a quick and easy storage extension. The operating system support depends on the used host processor. The M.2 SSD I/O signals are available via Pn5.

ORDER NOW

Technical Description

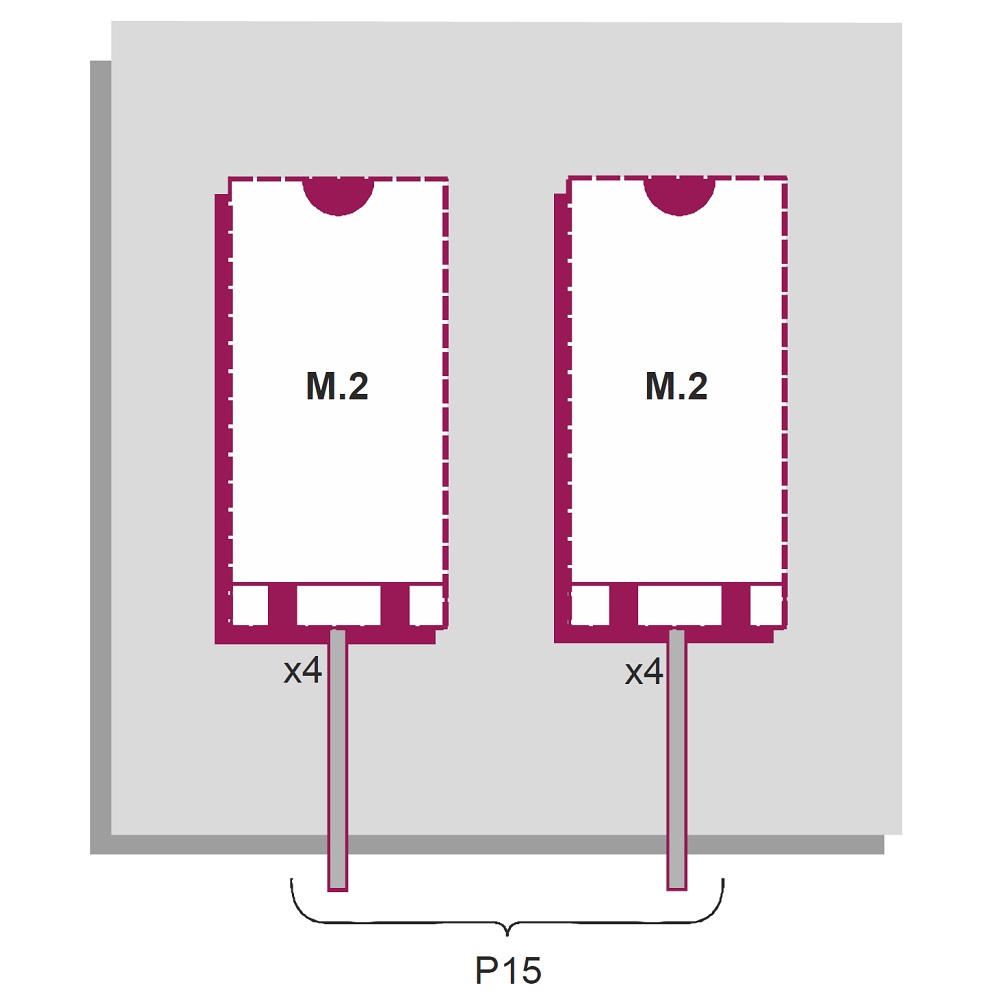

proimg1
  • XMC module, VITA 42.0, VITA 61
  • PCI 3.0 compliant, PCIe x4 (Gen 1, Gen 2 and Gen 3) interface
  • 2 sockets for up to 4TB M.2 PCIe SSDs
  • RAID 0, 1, 5 and 10 modes when used with a software RAID driver
  • Operating system support dependent on the host processor used
  • In 4 environmental classes available: standard (0°C .. 55°C), extended grade (-25°C .. +70°C), and (-40°C .. +85°C), and conduction-cooled (-40°C .. +85°C)
  • 2 years warranty

Order Information

XM620/x01-15

XMC module with 1TB M.2

XM620/x01-16

XMC module with 1x 2TB M.2

XM620/x01-25

XMC module with 2x 1TB M.2

XM620/x01-26

XMC module with 4TB M.2

Technical Documentation

XM 620/x01-DS

XM 620/x01 Data Sheet
